Boot Band Specification

Unit: mm (in)

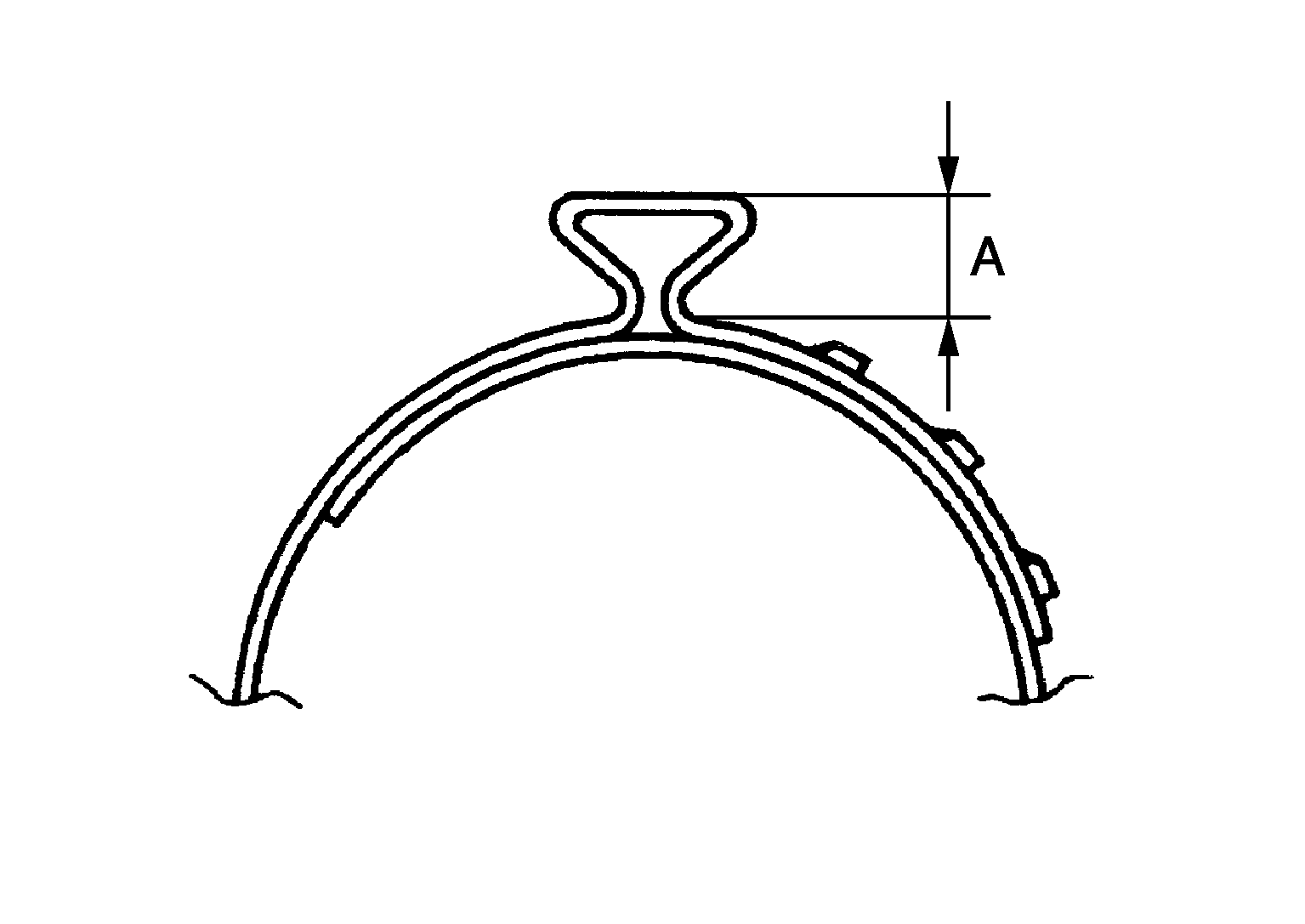

GNSJPDIF0268Z-268Courtesy of NISSAN NORTH AMERICA, INC.

Dimension (A) - maximum

7.0 mm (0.276 in)
