Dynamic Damper Specifications
Unit: mm (in)
|
Application |
MRA8DE M/T |
MRA8DE CVT |
||||
|
(LH) |
(RH) |
(LH) |
(RH) |
|||
|

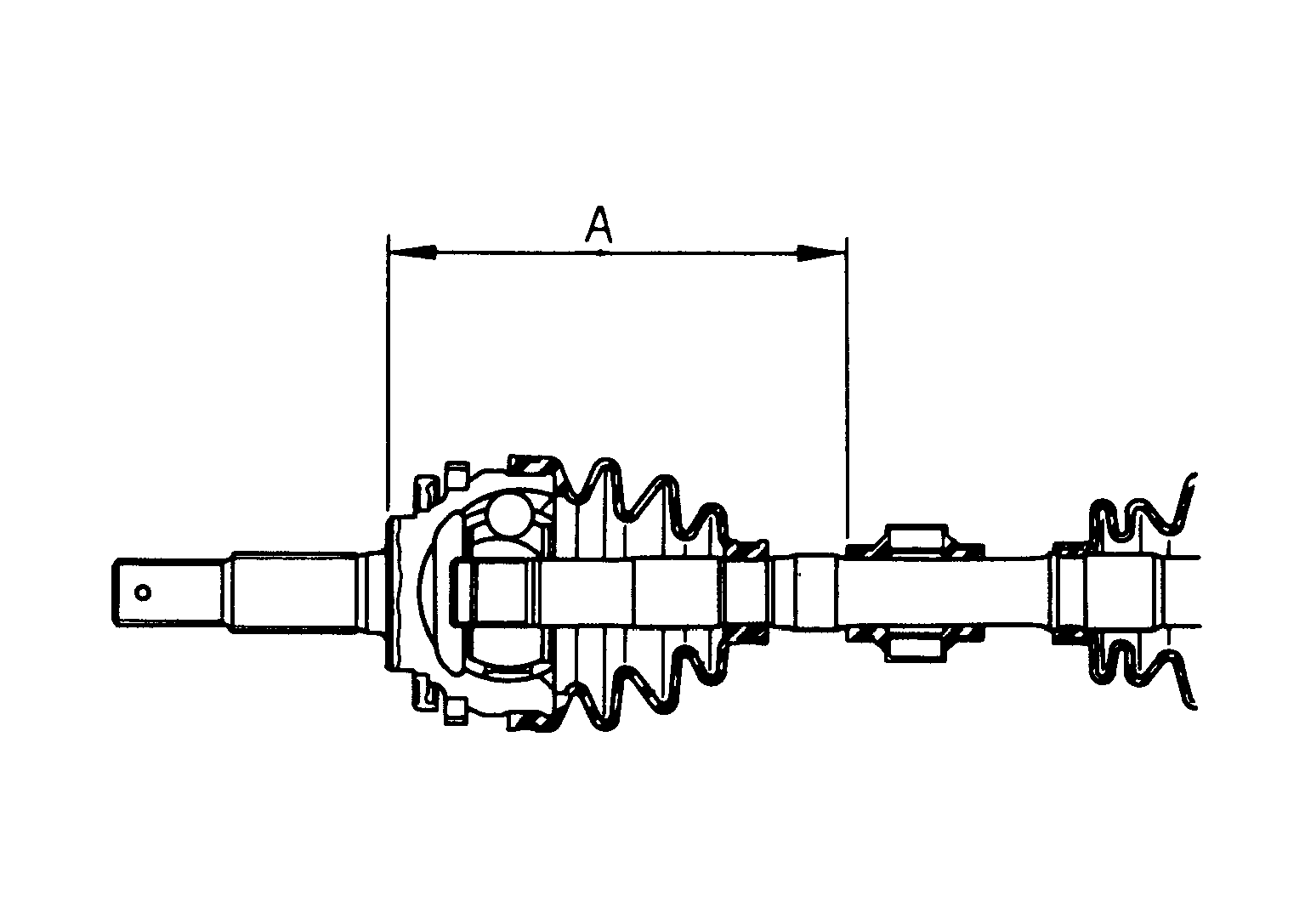

Dimension (A) |
237 - 243 mm (9.33 - 9.57 in) |
222 - 228 mm (8.74 - 8.98 in) |
502 - 508 mm (19.76 - 20.00 in) |
|||
|
Application |
MR16DDT M/T |
MR16DDT CVT |
||||
|
(LH) |
(RH) |
(LH) |
(RH) |
|||
|
Dimension (A) |
244.75 (9.636 in) |
244.13 (9.611 in) |
245.61 mm (9.670 in) |
245.80 mm (9.677 in) |
||
