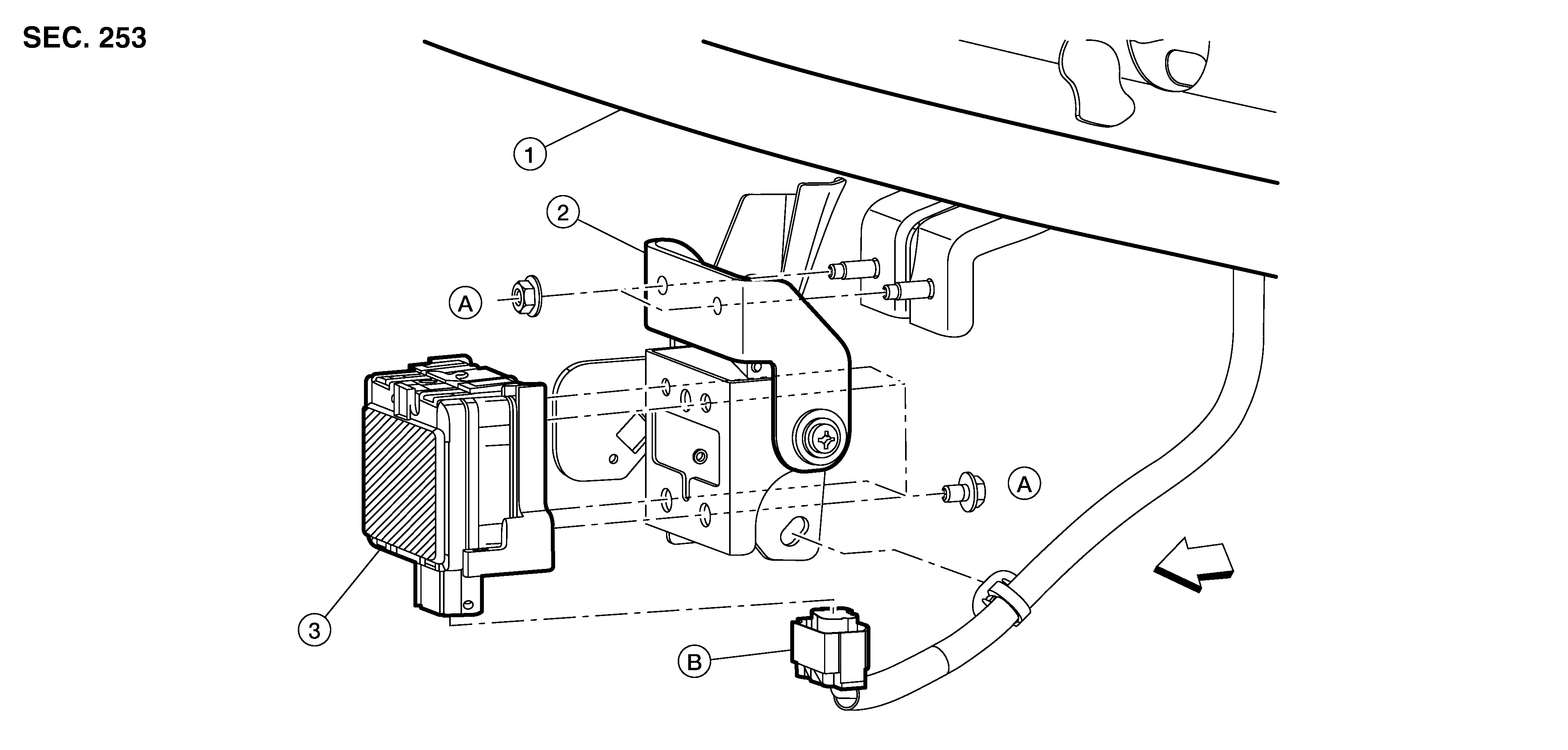

Exploded View

GNSDB114544Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front bumper reinforcement

2.

ICC sensor bracket

3.

ICC sensor

A.

Refer to INSTALLATION

B.

ICC sensor harness connector

SYMBOL

Front
