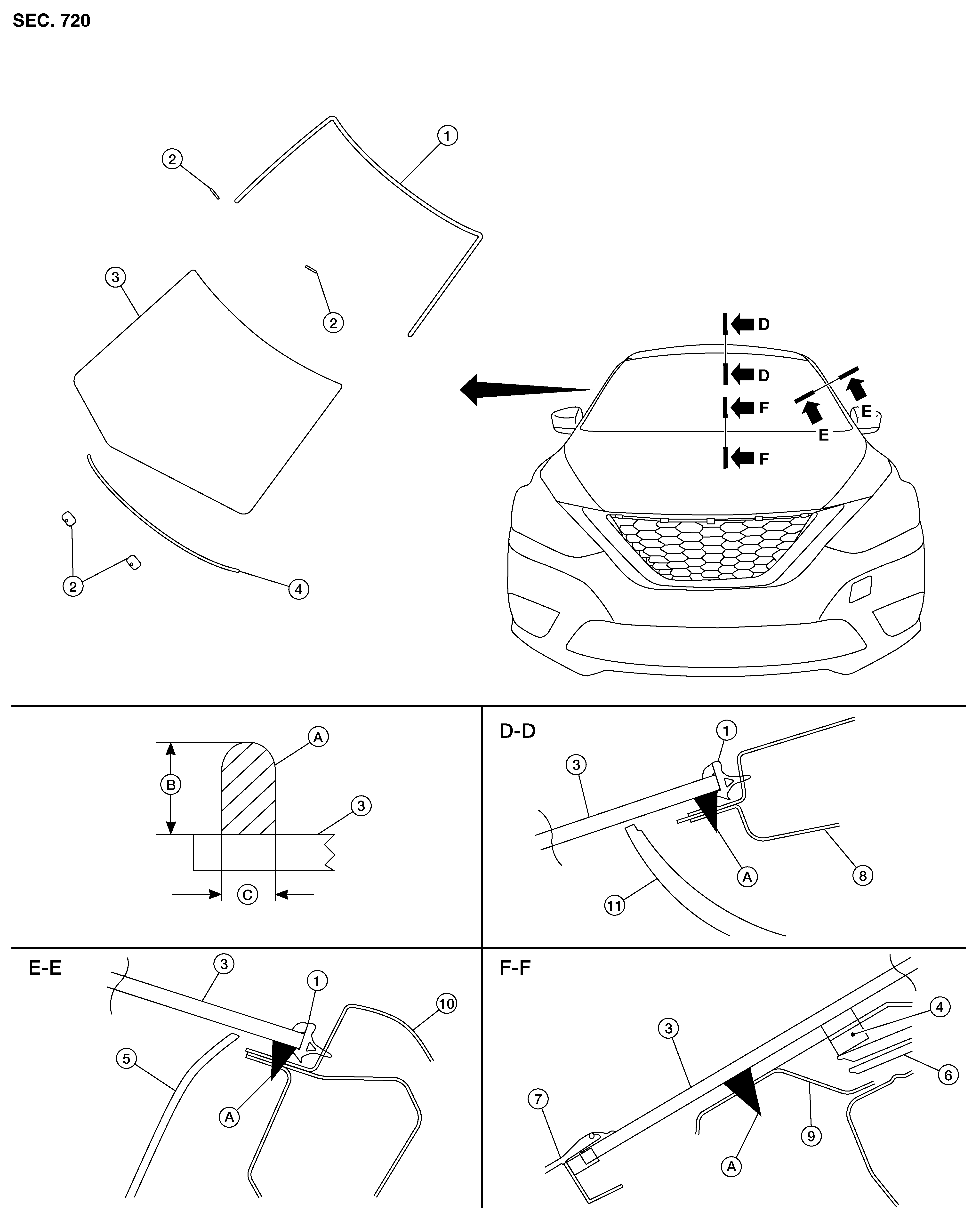

1.
Windshield glass molding
2.
Spacer
3.
Windshield glass
4.
Windshield insulator
5.
Front pillar finisher
6.
Instrument panel
7.
Cowl top cover
8.
Roof panel
9.
Cowl top
10.
Body side outer
11.
Headlining
A.
Adhesive
B.
12 +2.0 mm (0.5 +0.08 in)
C.
7 +2.0 mm (0.3 +0.08 in)
