Component Parts Location

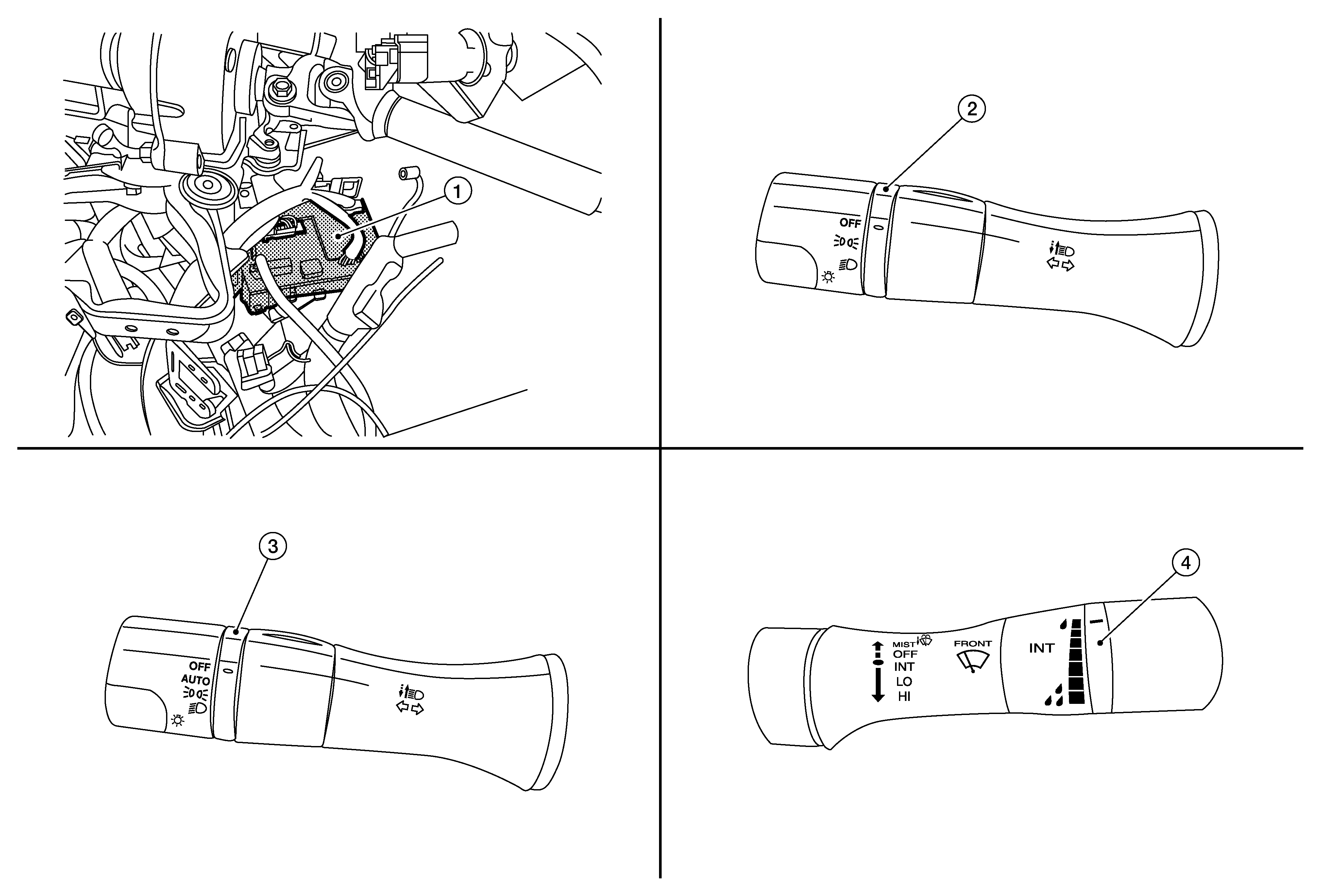

GNSAWMIA0043Z-043Courtesy of NISSAN NORTH AMERICA, INC.

1.

BCM (view with instrument panel removed)

2.

Combination switch (lighting and turn signal) (without auto light system)

3.

Combination switch (lighting and turn signal) (with auto light system)

4.

Combination switch (wiper and washer)
