Exploded View
Exploded View

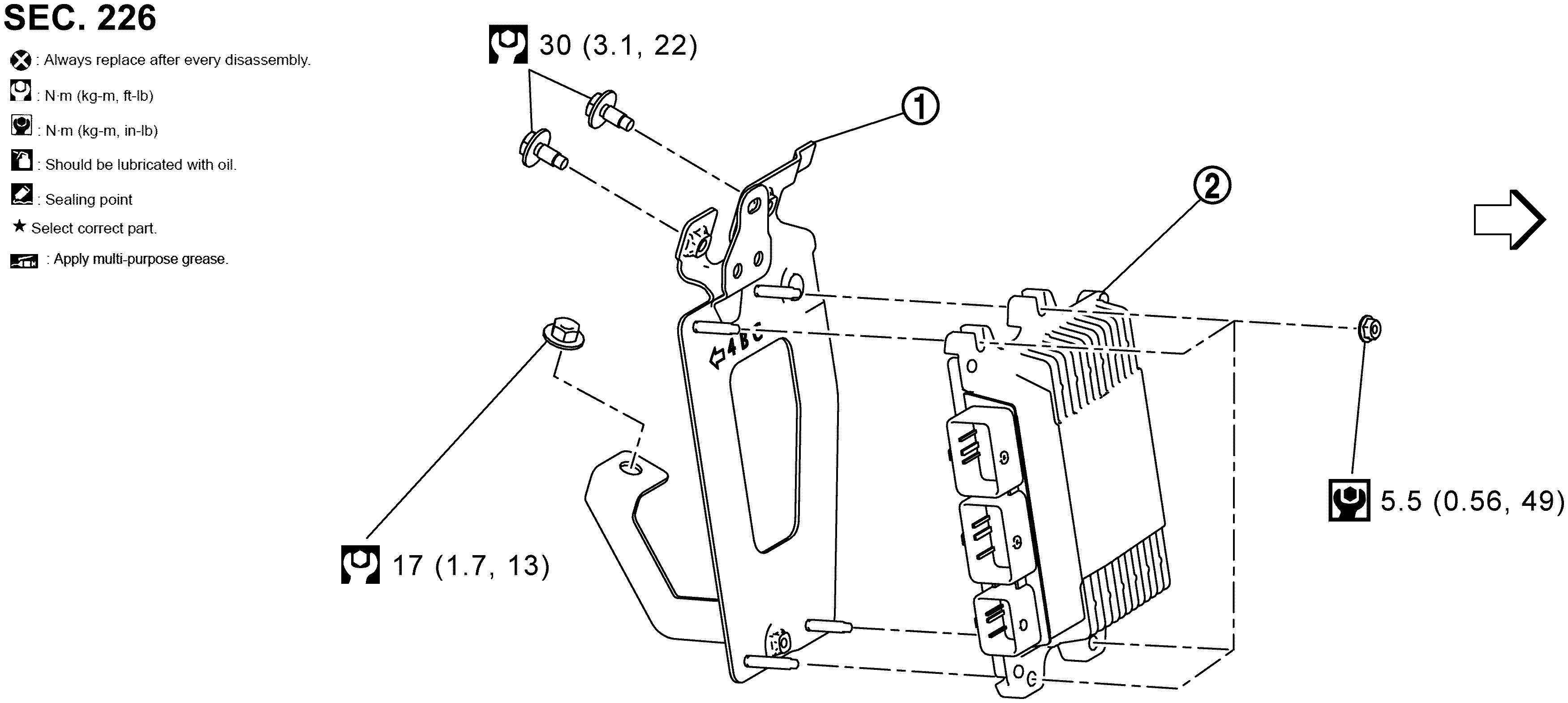

Fig 1: ECM With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Bracket
2.
ECM
: Vehicle front
Courtesy of NISSAN NORTH AMERICA, INC.
