Exploded View

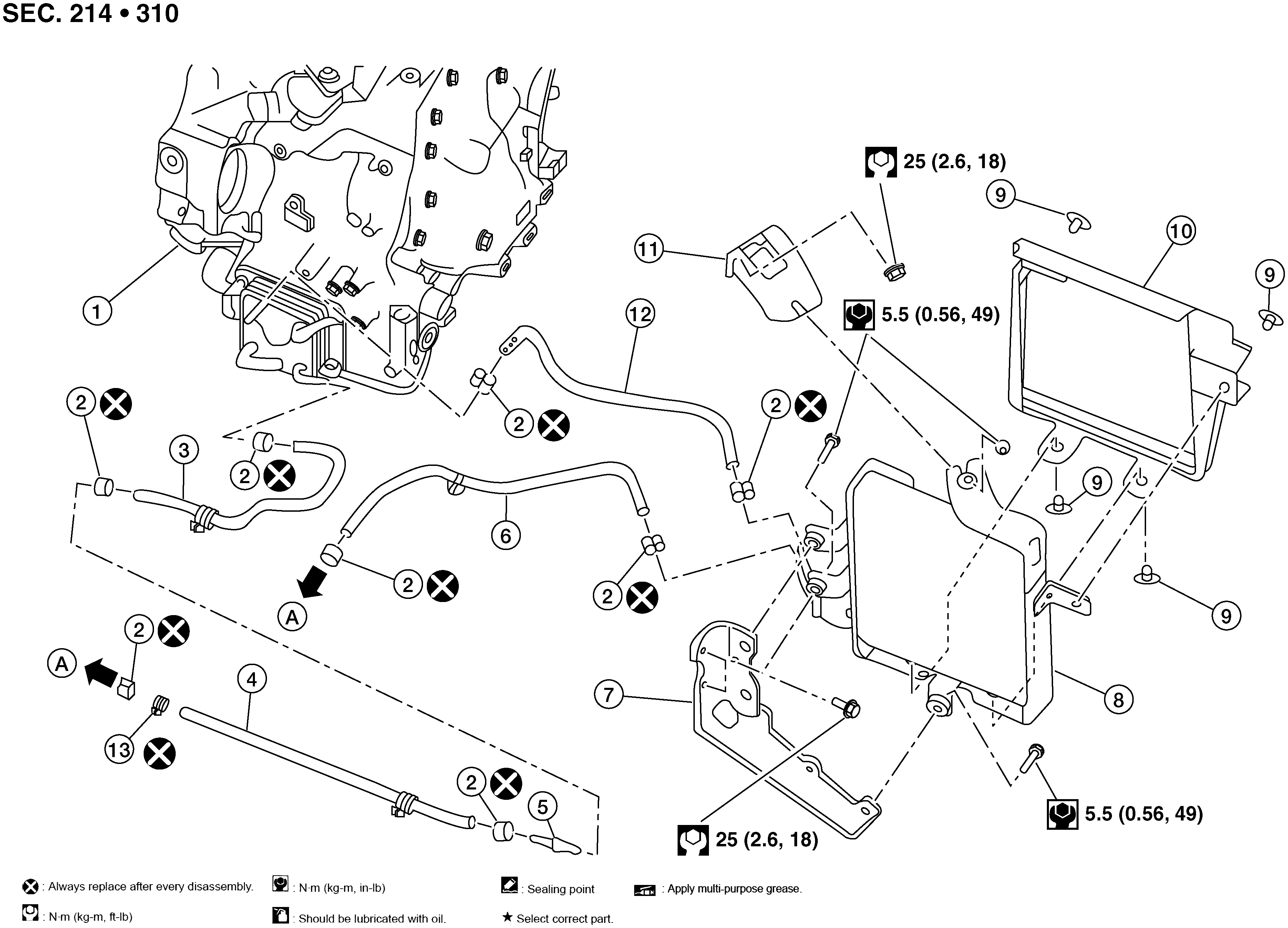

Fig 1: CVT Fluid Cooler System With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Transaxle assembly	Hose clamp	CVT fluid cooler hose A
CVT fluid cooler hose B	Connector tube	CVT fluid cooler hose C
Bracket	CVT fluid cooler (auxiliary)	Clip
Air guide	Bracket	CVT fluid cooler hose D
CVT fluid hose clamp (wire type)	To radiator
: Always replace after every disassembly.
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)
