Exploded View

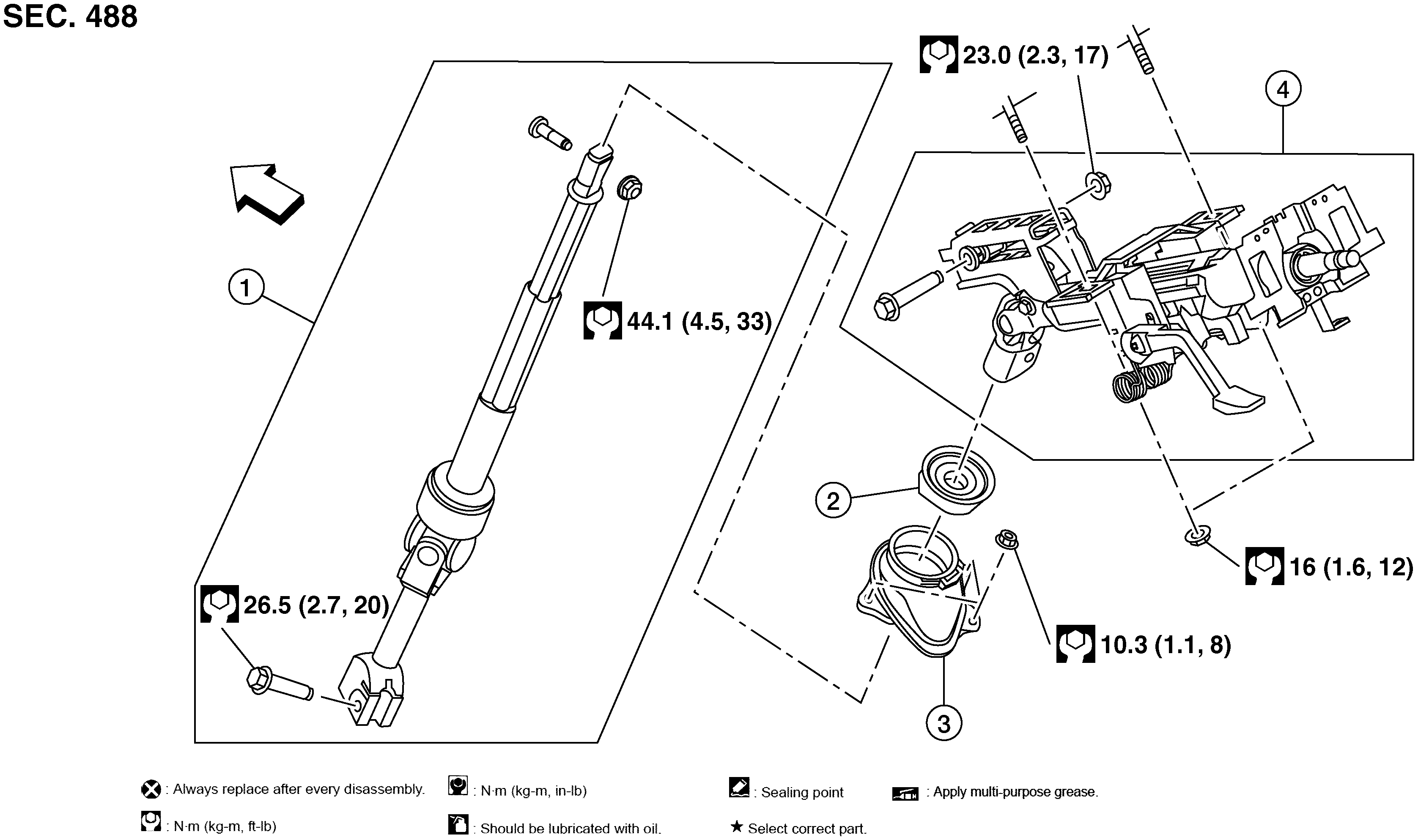

Fig 1: Steering Column Without Tilt And Telescopic Motor With Torque Specifications
GNSALGIA03Z-003Courtesy of NISSAN NORTH AMERICA, INC.

1.

Intermediate shaft

2.

Hole cover seal

3.

Hole cover

4.

Steering column

SYMBOL

Front

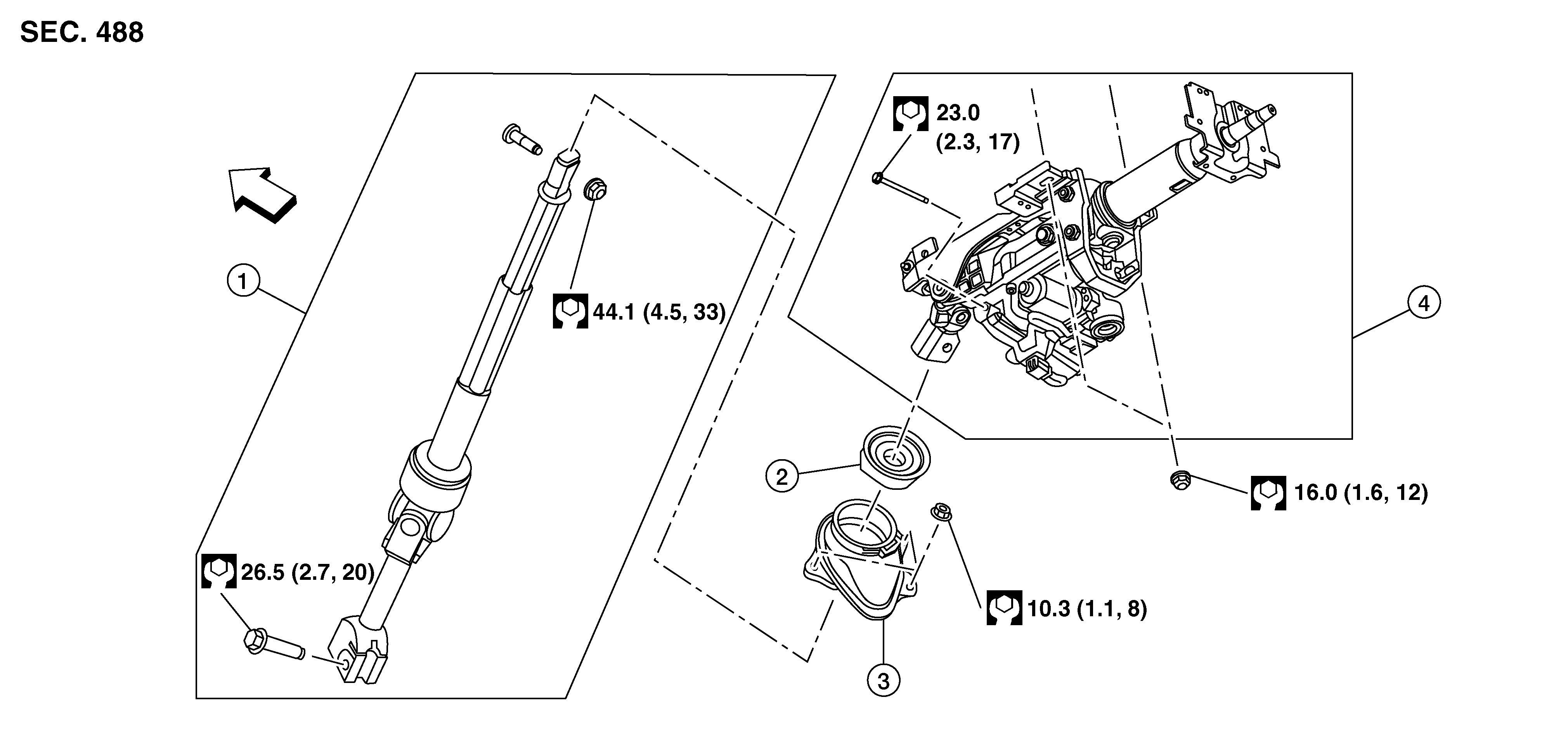

Fig 2: Steering Column With Tilt And Telescopic Motor With Torque Specifications
GNSALGIA0143Z-143Courtesy of NISSAN NORTH AMERICA, INC.

1.

Intermediate shaft

2.

Hole cover seal

3.

Hole cover

4.

Steering column

SYMBOL

Front
