Disassembly and Assembly: Assembly

  1. Apply grease (Autolex A or Dow Corning 111) or equivalent to inner socket and turn pinion fully to retract inner socket into steering gear housing.
    CAUTION: Make sure there are no contaminants in the grease, on the inner socket, or inside the steering gear housing.
  2. Install large end (1) of boot (2) to steering gear housing.
    GNSAWGIA0107Z-107Courtesy of NISSAN NORTH AMERICA, INC.
  3. Install small end (3) of boot (2) to inner socket boot groove.
  4. Install outer boot clamp to boot small end.
    G04134821Courtesy of NISSAN NORTH AMERICA, INC.
  5. Install inner boot clamp to boot large end using suitable tool.

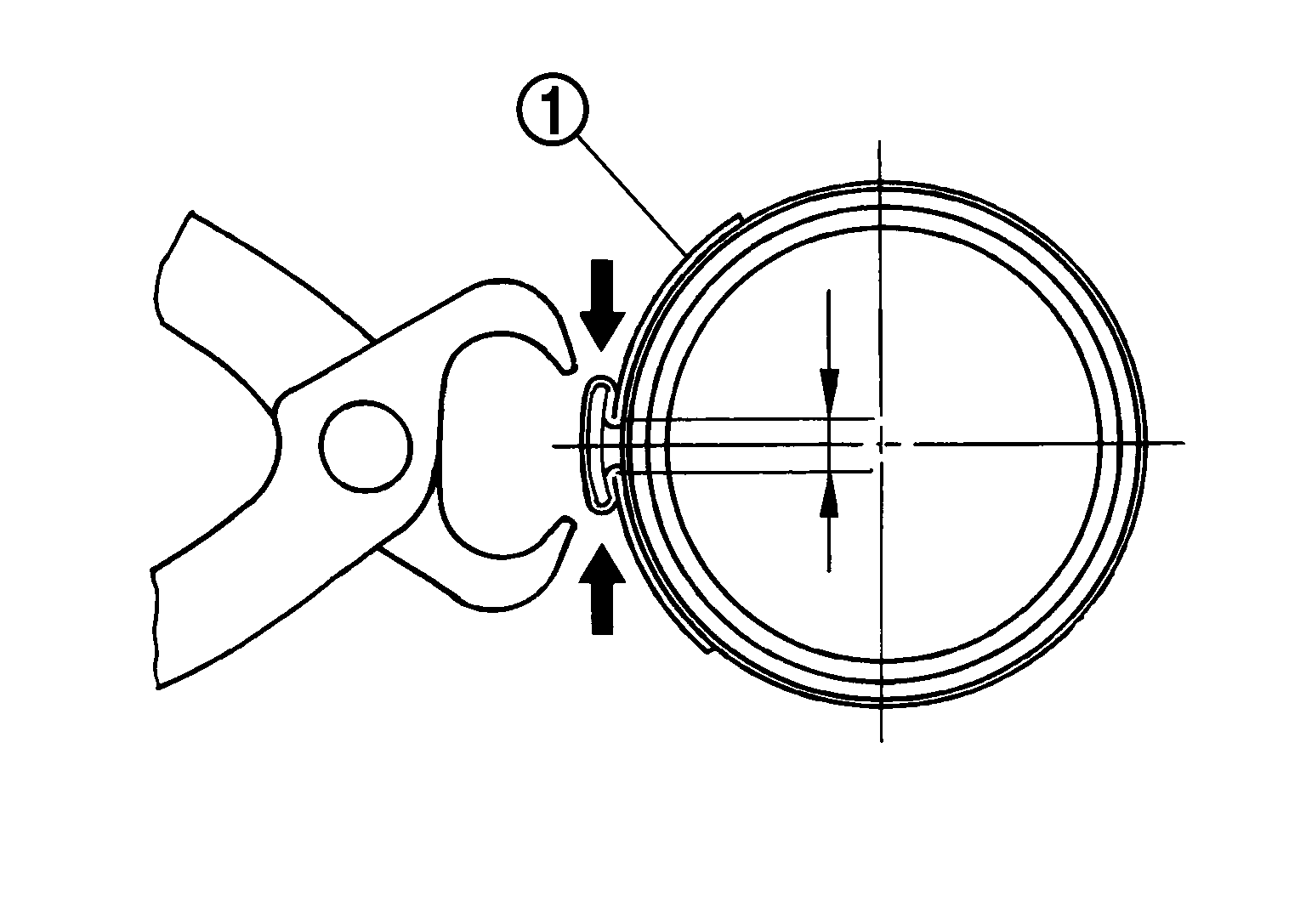

    G04814188Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Install inner boot clamp (1) securely to boot groove, and crimp it so as to have clearance of 3 mm (0.12 in) or less as shown.
  6. Install outer socket.
  7. Adjust inner socket to standard length (L), and then tighten lock nut to the specified torque. Check length again after tightening lock nut.
    G04076779Courtesy of NISSAN NORTH AMERICA, INC.

    Inner socket length

    : Refer to Inner Socket Length .
  8. Check wheel alignment. Refer to Inspection .
    CAUTION: When tightening outer socket lock nut (1), be sure to hold outer socket (2) using a suitable tool to prevent ball joint from contacting knuckle.
    GNSJSGIA0538Z-538Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: The length achieved after adjusting wheel alignment is not necessarily the above value.
