Exploded View (Rear)

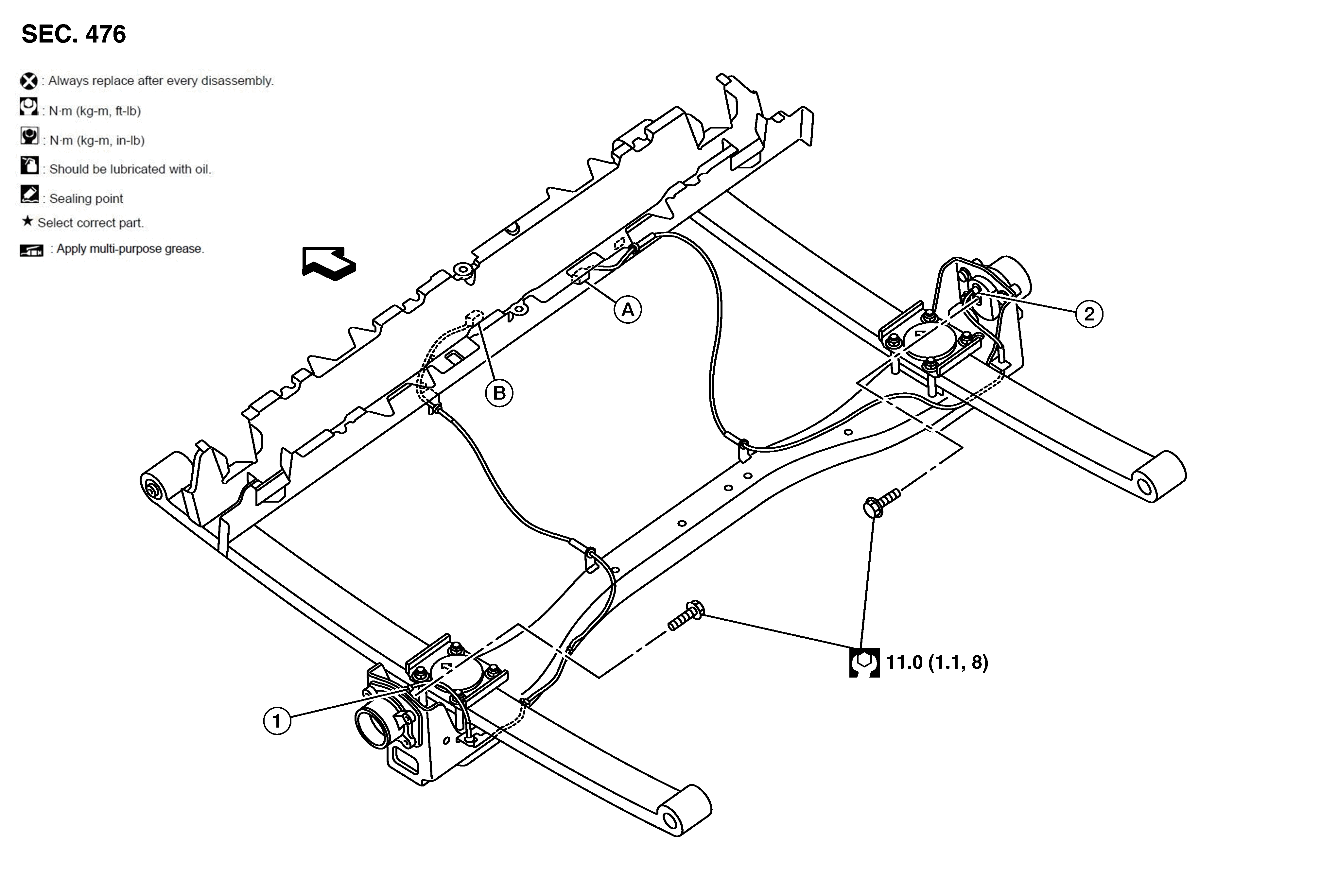

Fig 1: Rear Wheel Sensor With Torque Specifications
GNSAWFIA0985Z-985SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

1.

Rear wheel sensor (LH)

2.

Rear wheel sensor (RH)

A.

Rear wheel sensor harness connector (RH)

B.

Rear wheel sensor harness connector (LH)

SYMBOL

Front
