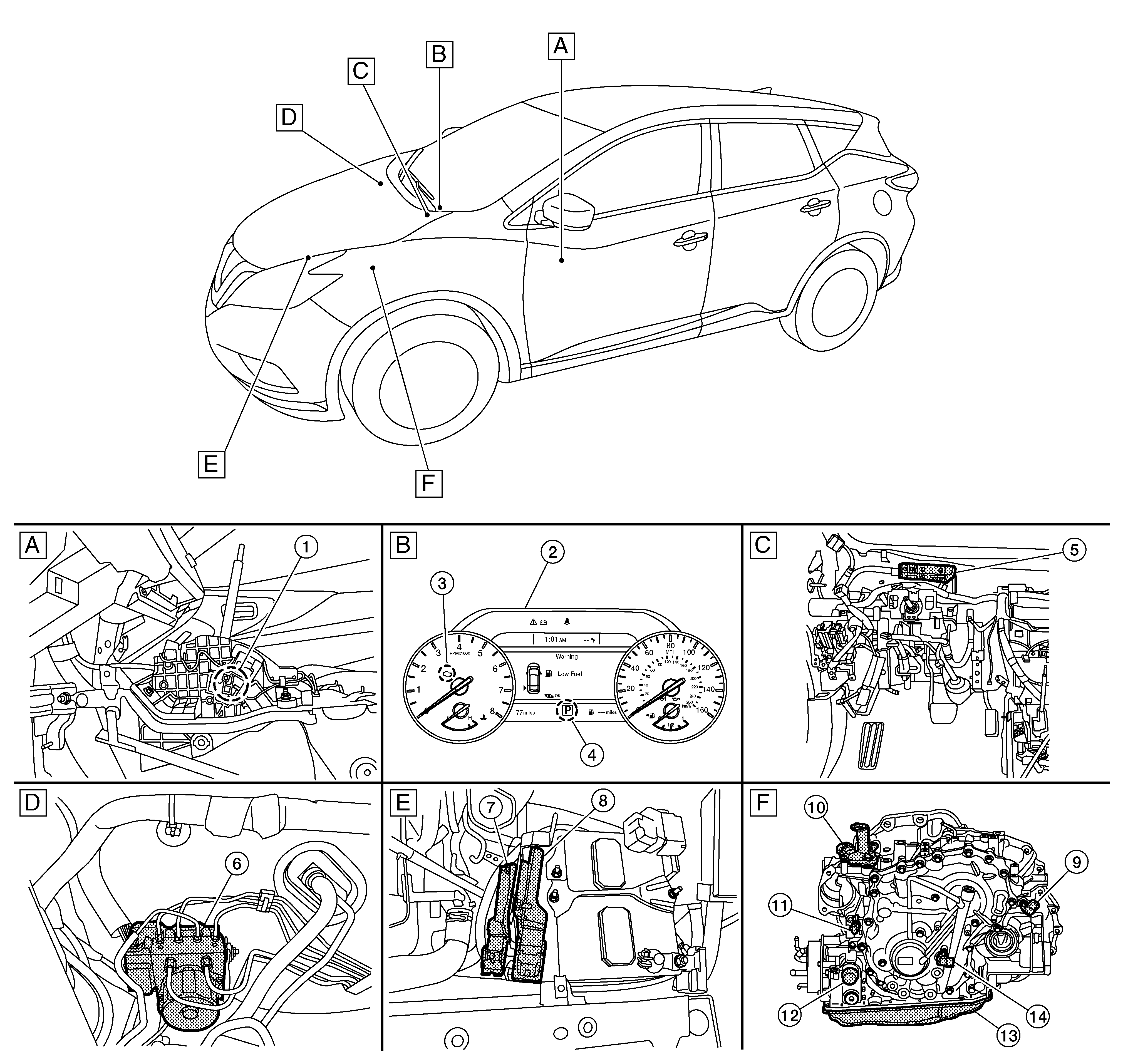

Component Location: Notes

GNSALDIA0577Z-577Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

CVT shift selector assembly

SYMBOL

Combination meter

SYMBOL

Behind of combination meter

SYMBOL

Engine room (RH side)

SYMBOL

Engine room (LH side)

SYMBOL

Transaxle assembly
