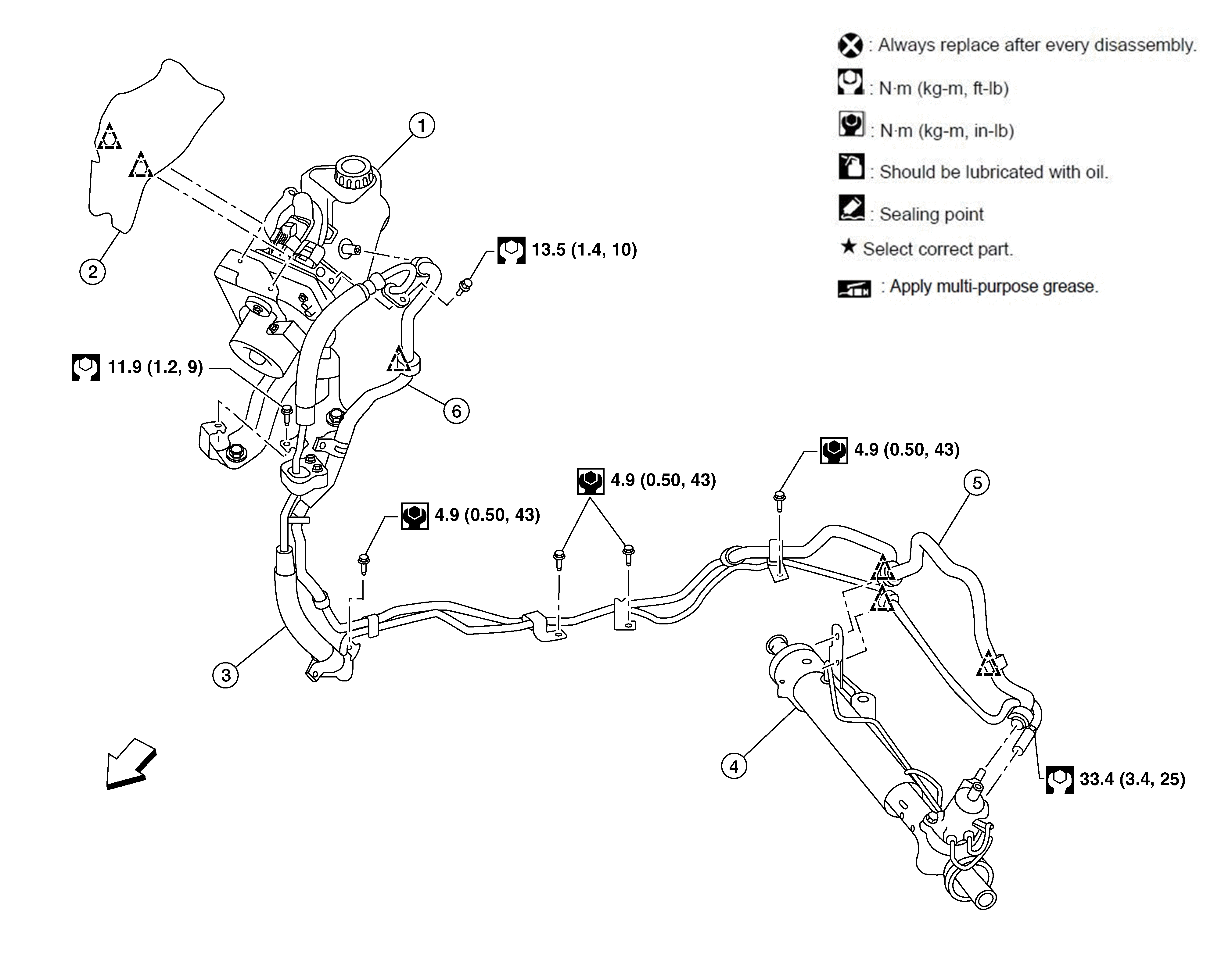

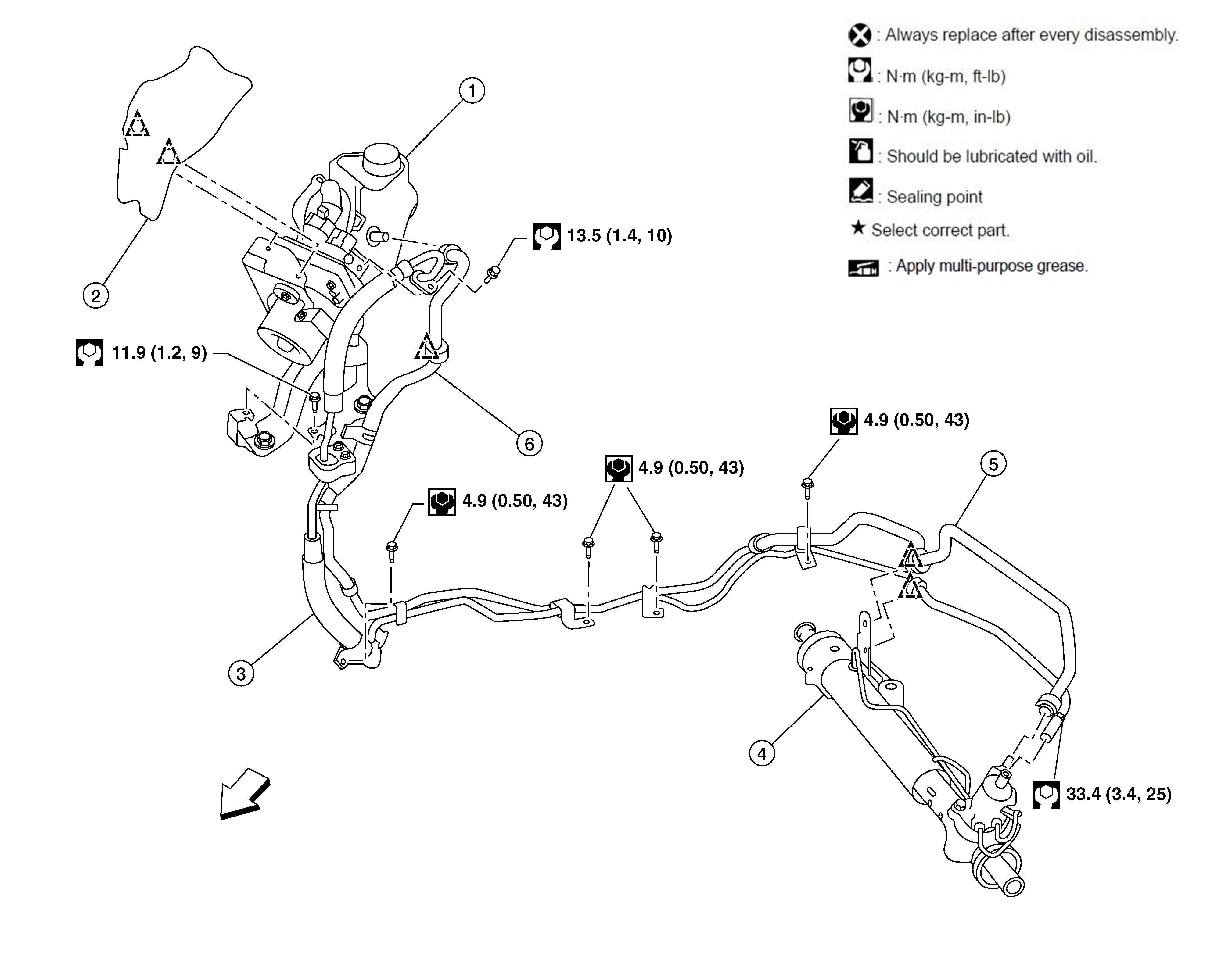

Exploded View
|
1. |
Power steering oil pump |
2. |
Cover |
3. |
High-pressure piping |
|
4. |
Steering gear |
5. |
Low-pressure piping (lower) |
6. |
Low-pressure piping (upper) |
|
|
Clip |
|
Front |
NOTE:
Service high-pressure and low-pressure piping as an assembly of hydraulic lines.
|
1. |
Power steering oil pump |
2. |
Cover |
3. |
High-pressure piping |
|
4. |
Steering gear |
5. |
Low-pressure piping (lower) |
6. |
Low-pressure piping (upper) |
|
|
Clip |
|
Front |
NOTE:
Service high-pressure and low-pressure piping as an assembly of hydraulic lines.
