Exploded View

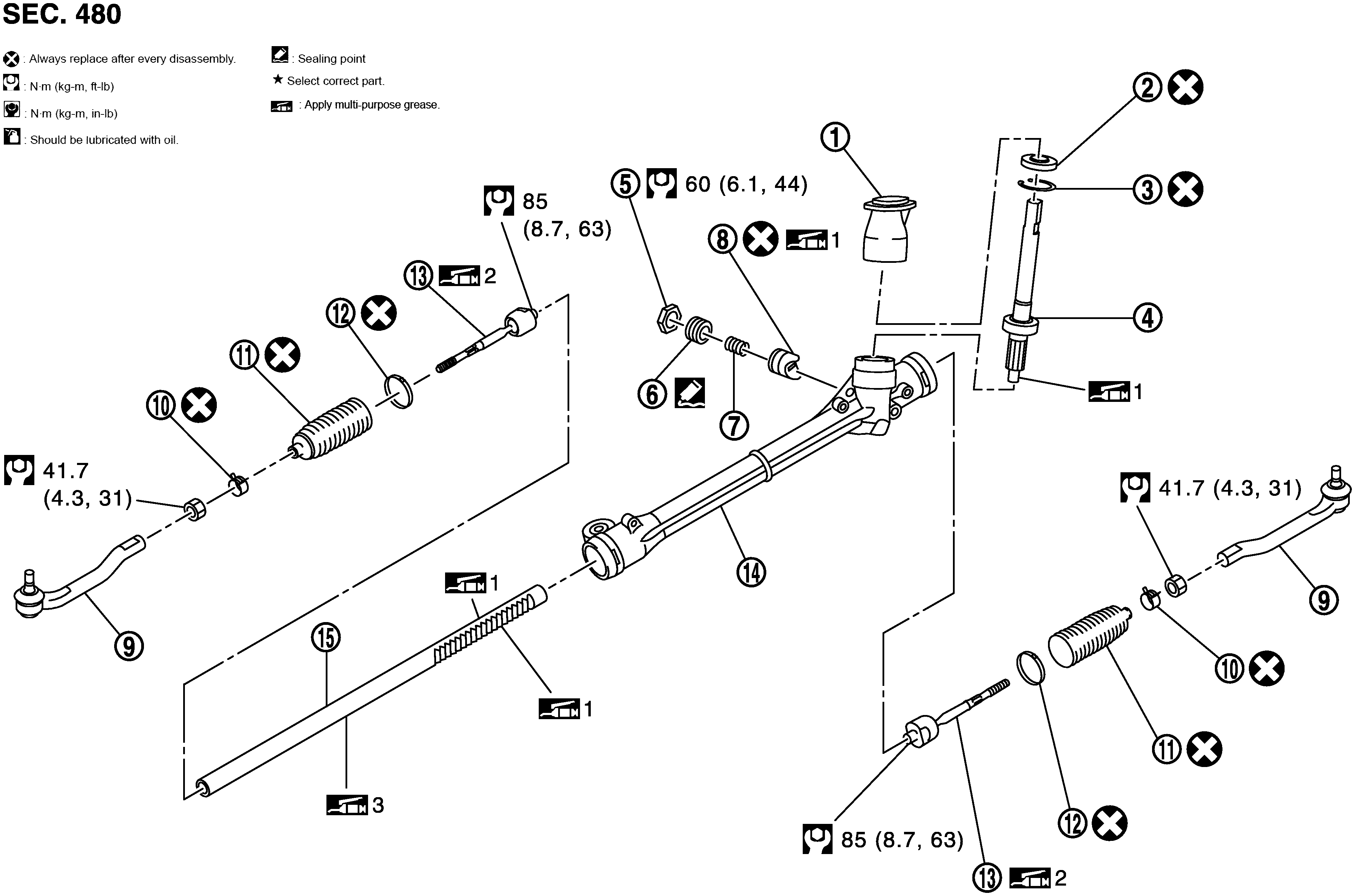

Fig 1: Steering Gear And Linkage With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Joint cover	2.	Dust seal	3.	Snap ring
4.	Pinion	5.	Lock nut	6.	Adjusting screw
7.	Spring	8.	Retainer	9.	Outer socket
10.	Boot clamp (small diameter)	11.	Boot	12.	Boot clamp (large diameter)
13.	Inner socket	14.	Gear housing	15.	Rack
1: Apply Genuine Lithium Soap, Multi-temp AC-P (manufactured by Kyodo yushi), Molywhite LSG or equivalent.
2: Apply Genuine Lithium Soap, Autorex A (manufactured by Kyodo yushi), Dow corning 111 or equivalent.
3: Apply Genuine Lithium Soap, One Luber MO No. 2 (manufactured by Kyodo yushi) or equivalent.
: Apply Genuine Thread Locking Sealant, Three Bond 1141 or equivalent.
