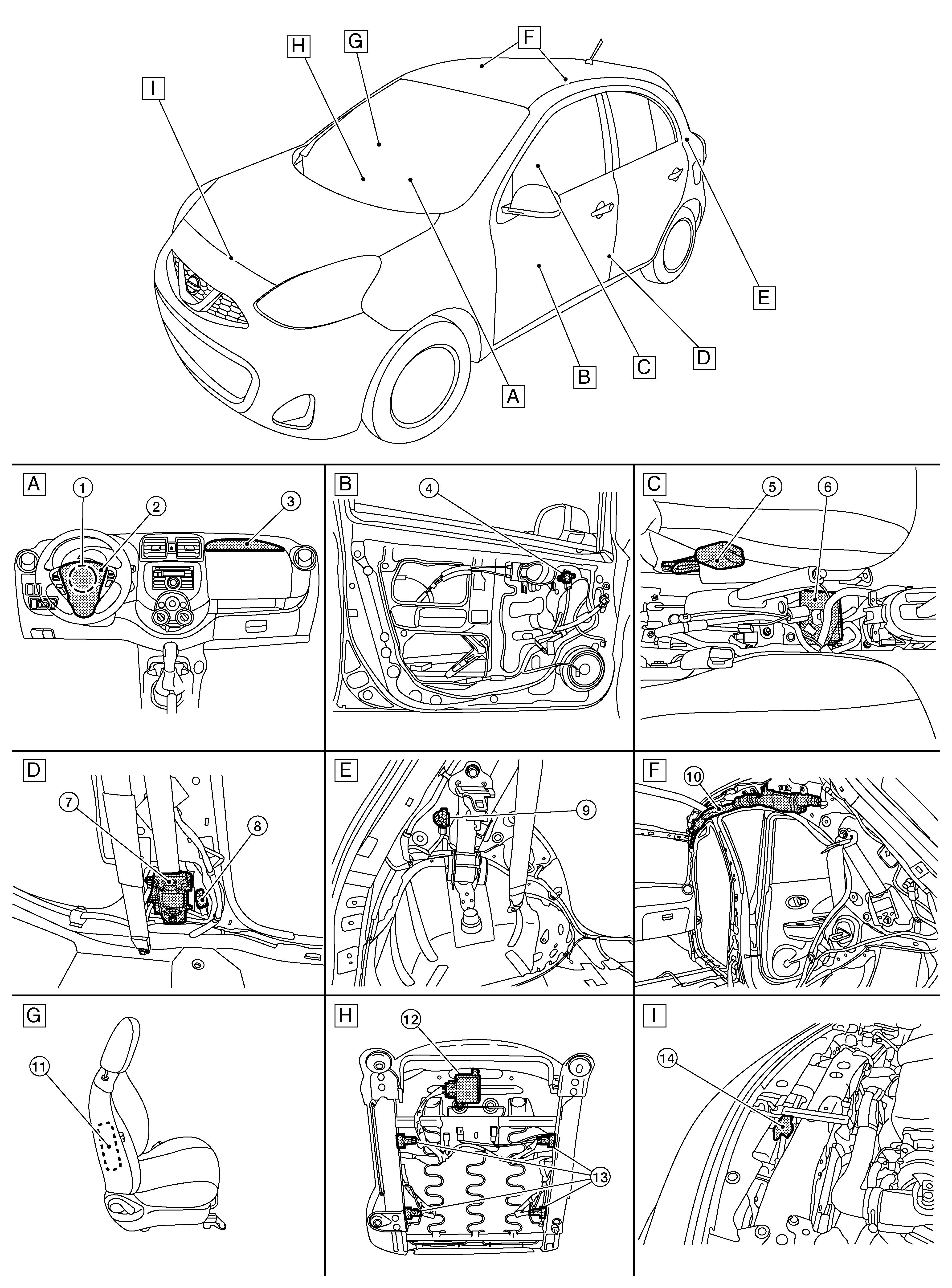

Component Location
|
A. |
Instrument panel |
B. |
View with front LH door finisher removed |
C. |
View with center console trim removed |
|
D. |
View with the lower B-pillar trim removed |
E. |
View with LH rear lower luggage finisher removed |
F. |
View with headlining removed |
|
G. |
RH front passenger seat |
H. |
Under side of front passenger seat RH |
I. |
Radiator core support assembly |
|
No. |
Component |
Function |
|
1. |
Spiral cable |
The spiral cable provides a rotating physical connection to the driver air bag module. |
|
2. |
Drivers air bag module |
Refer to Driver Air Bag Module . |
|
3. |
Front passenger air bag module |
Refer to Front Passenger Air Bag Module . |
|
4. |
Front door satellite sensor |
Refer to Front Door Satellite Sensor . |
|
5. |
Seat belt buckle switch LH (RH similar) |
The seat belt buckle switches (LH/RH) provide the seat belt buckle signals to the air bag diagnosis sensor unit and the combination meter. |
|
6. |
Air bag diagnosis sensor unit |
Refer to Air Bag Diagnosis Sensor Unit . |
|
7. |
Front seat belt pre-tensioner LH (RH similar) |
Refer to Front Seat Belt Pre-tensioner . |
|
8. |
Front side air bag satellite sensor |
Refer to Front Side Air Bag Satellite Sensor . |
|
9. |
Rear side air bag satellite sensor RH (LH similar) |
Refer to Rear Side Air Bag Satellite Sensor . |
|
10. |
Side curtain air bag module |
Refer to Side Curtain Air Bag Module . |
|
11. |
Front side air bag module |
Refer to Front Side Air Bag Module . |
|
12. |
Occupant classification system control unit |
Refer to System Description . |
|
13. |
Occupant classification system sensors |
Refer to System Description . |
|
14. |
Crash zone sensor |
Refer to Crash Zone Sensor . |
