Removal and Installation: Removal

  1. Remove battery. Refer to Removal and Installation .
  2. Remove IPDM E/R. Refer to Removal and Installation .

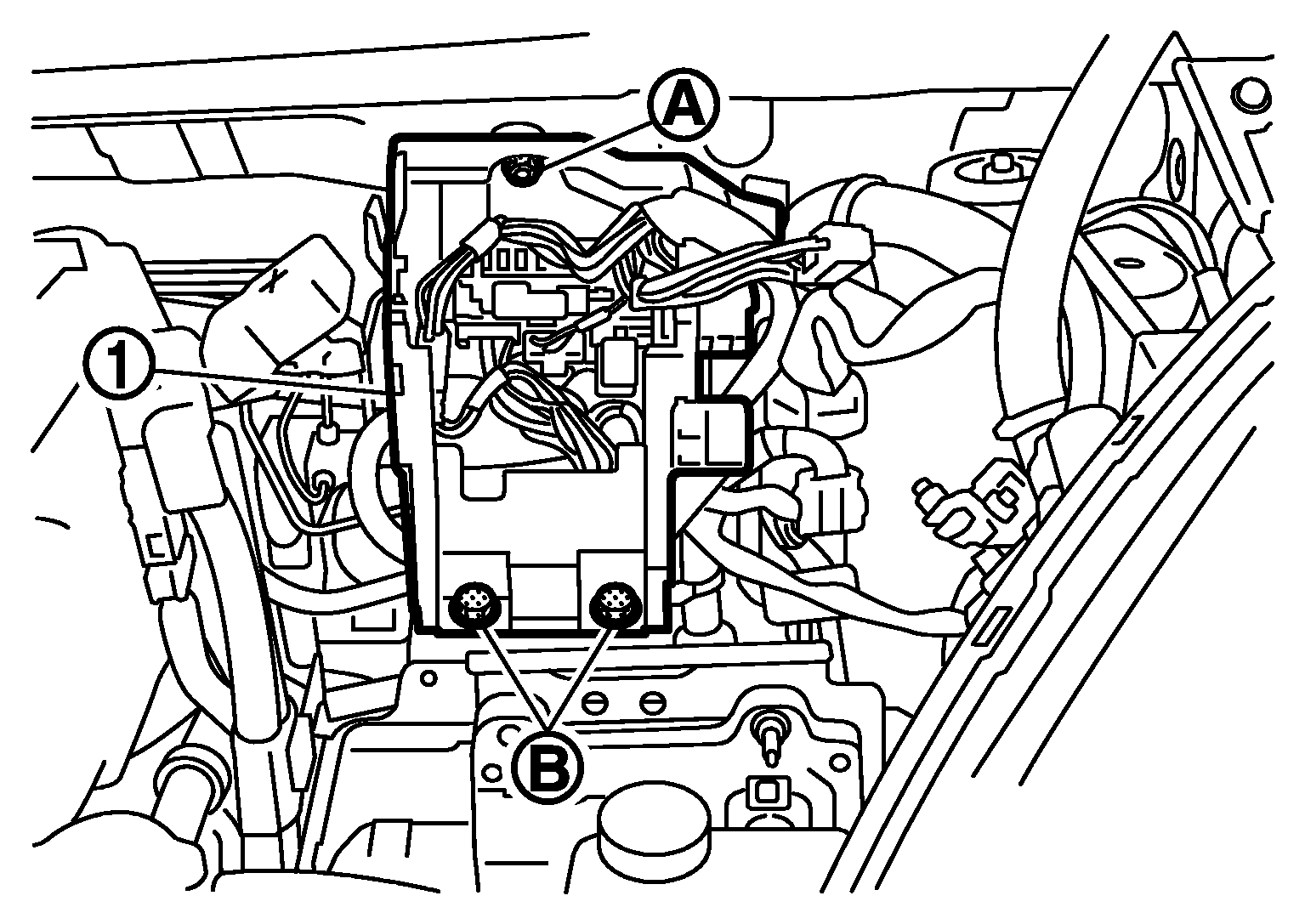

  3. Remove IPDM E/R cover (1).
    GNSJSBIA0473Z-473Courtesy of NISSAN NORTH AMERICA, INC.

    (A)

    : Nut

    (B)

    : Bolts
  4. Disconnect the harness connectors from ECM.
  5. Remove ECM nuts.
  6. Remove ECM from ECM bracket.
