Exploded View

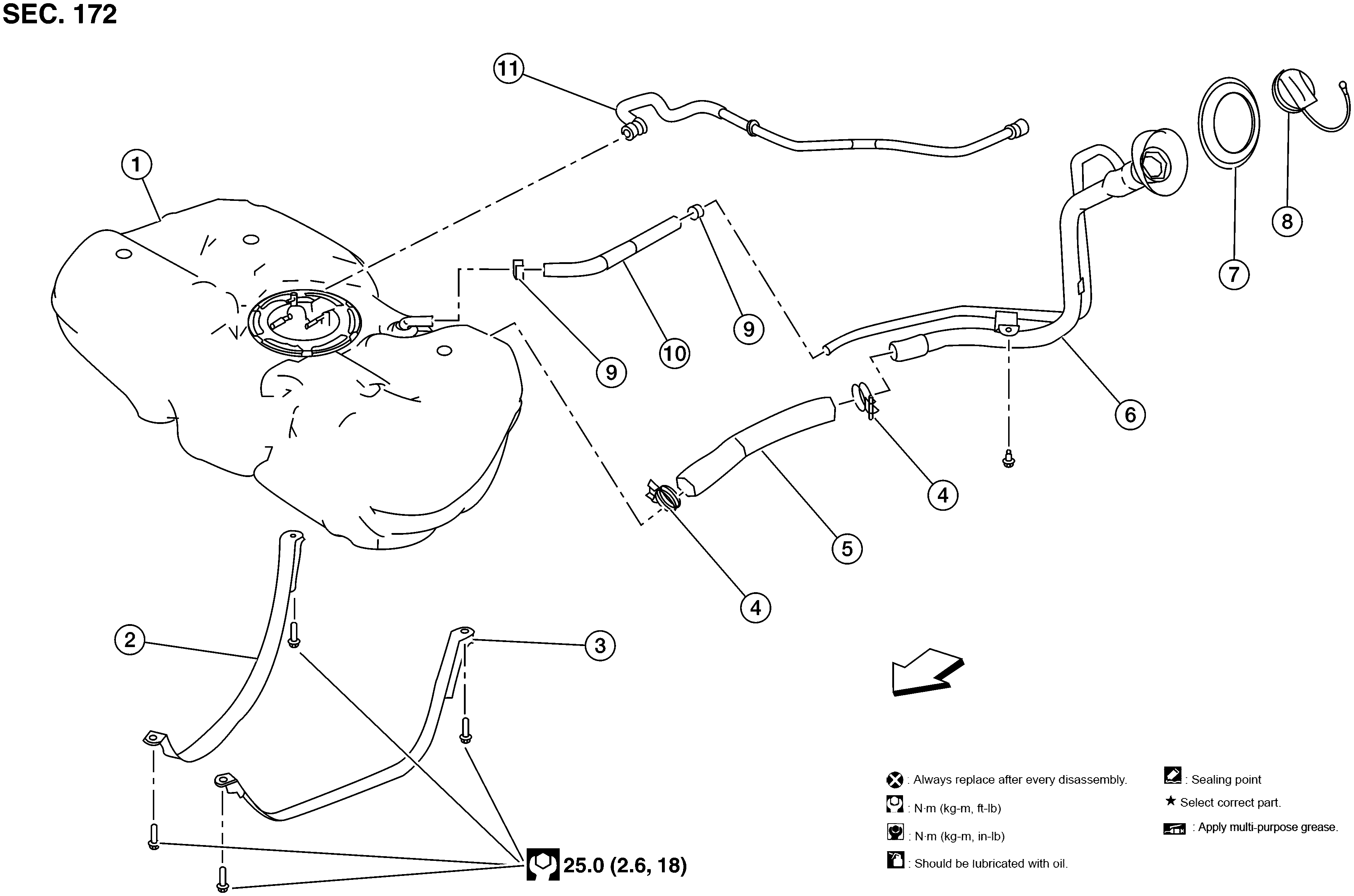

Fig 1: Fuel Tank With Torque Specification

GNSAWBIA1592Z-592

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel tank	2.	Fuel tank mounting band (RH)	3.	Fuel tank mounting band (LH)
4.	Clamp	5.	Fuel filler hose	6.	Fuel filler tube
7.	Grommet	8.	Fuel filler cap	9.	Clamp
10.	Vent hose	11.	EVAP vent line		Front
