Exploded View

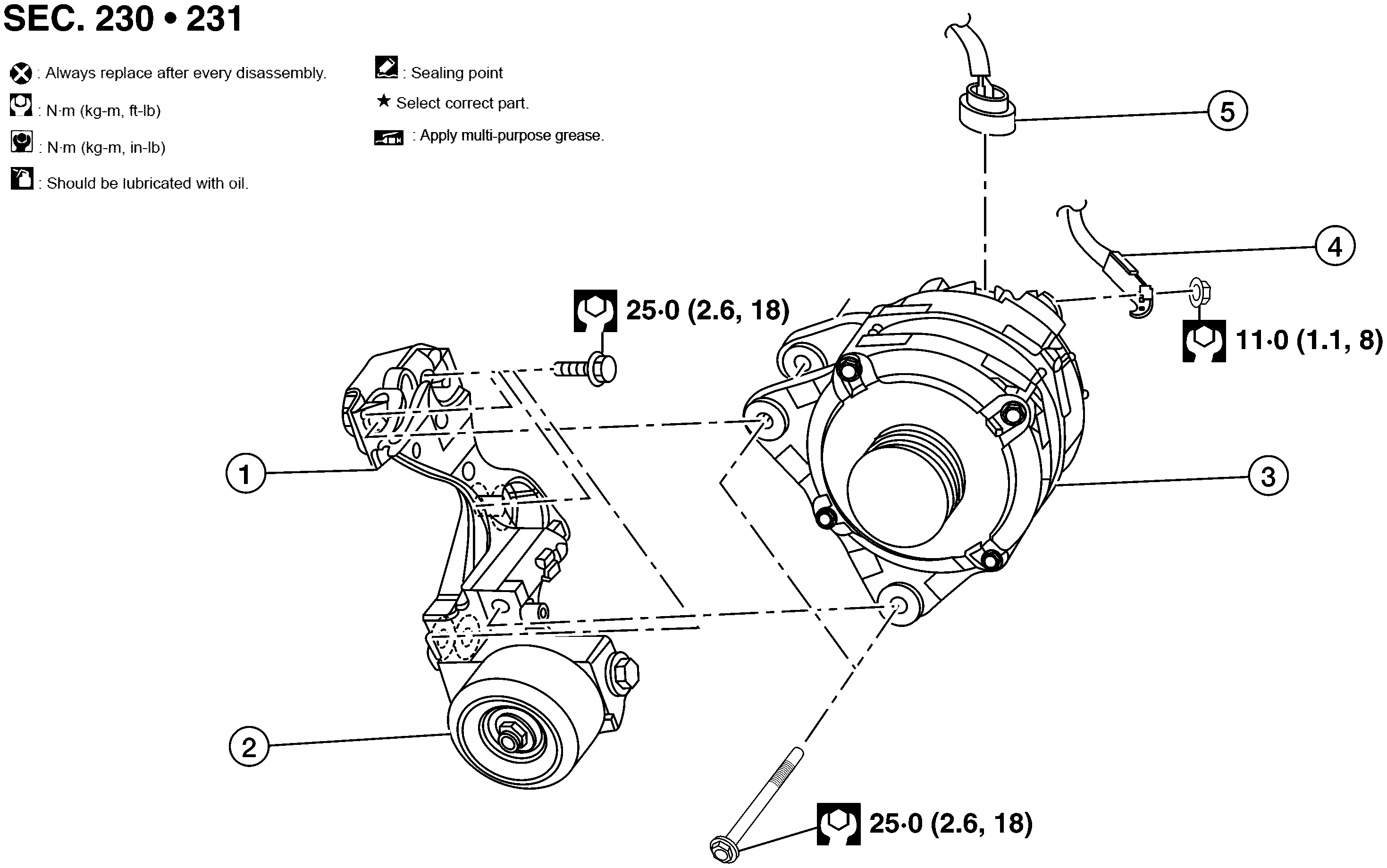

Fig 1: Generator With Torque Specification
GNSAWGIA0293Z-293Courtesy of NISSAN NORTH AMERICA, INC.

1.

Generator bracket

2.

Tensioner idler pulley

3.

Generator

4.

"B" terminal harness

5.

Generator harness connector
