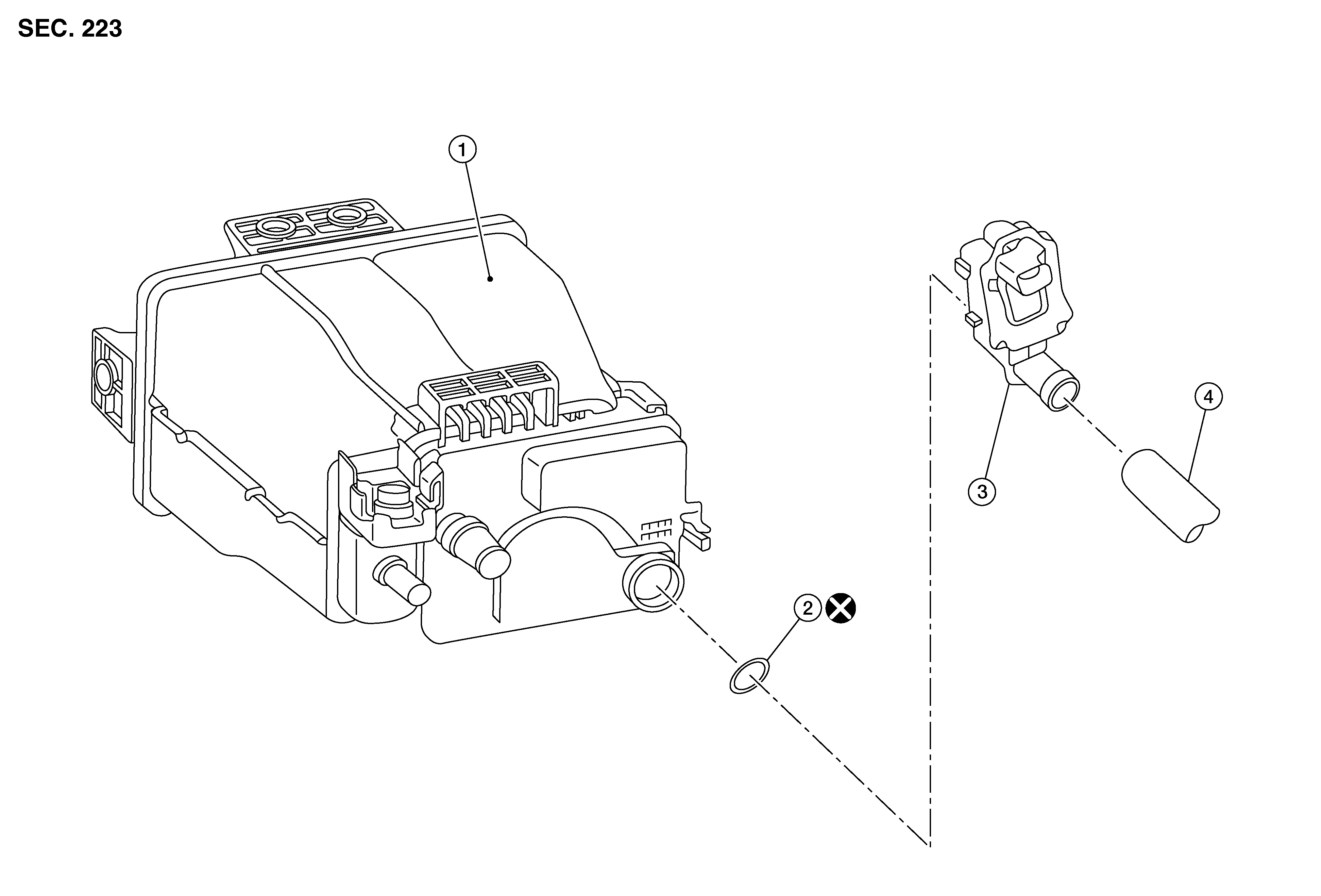

Exploded View

GNSAWBIA0131Z-131

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP Canister	2.	O-Ring	3.	EVAP Canister Vent Control Valve
4.	EVAP Canister Vent Control Valve Hose
