Removal (For Canada)

  1. Remove instrument panel assembly. Removal and Installation.
  2. Disconnect the harness connector from the dongle unit (1).

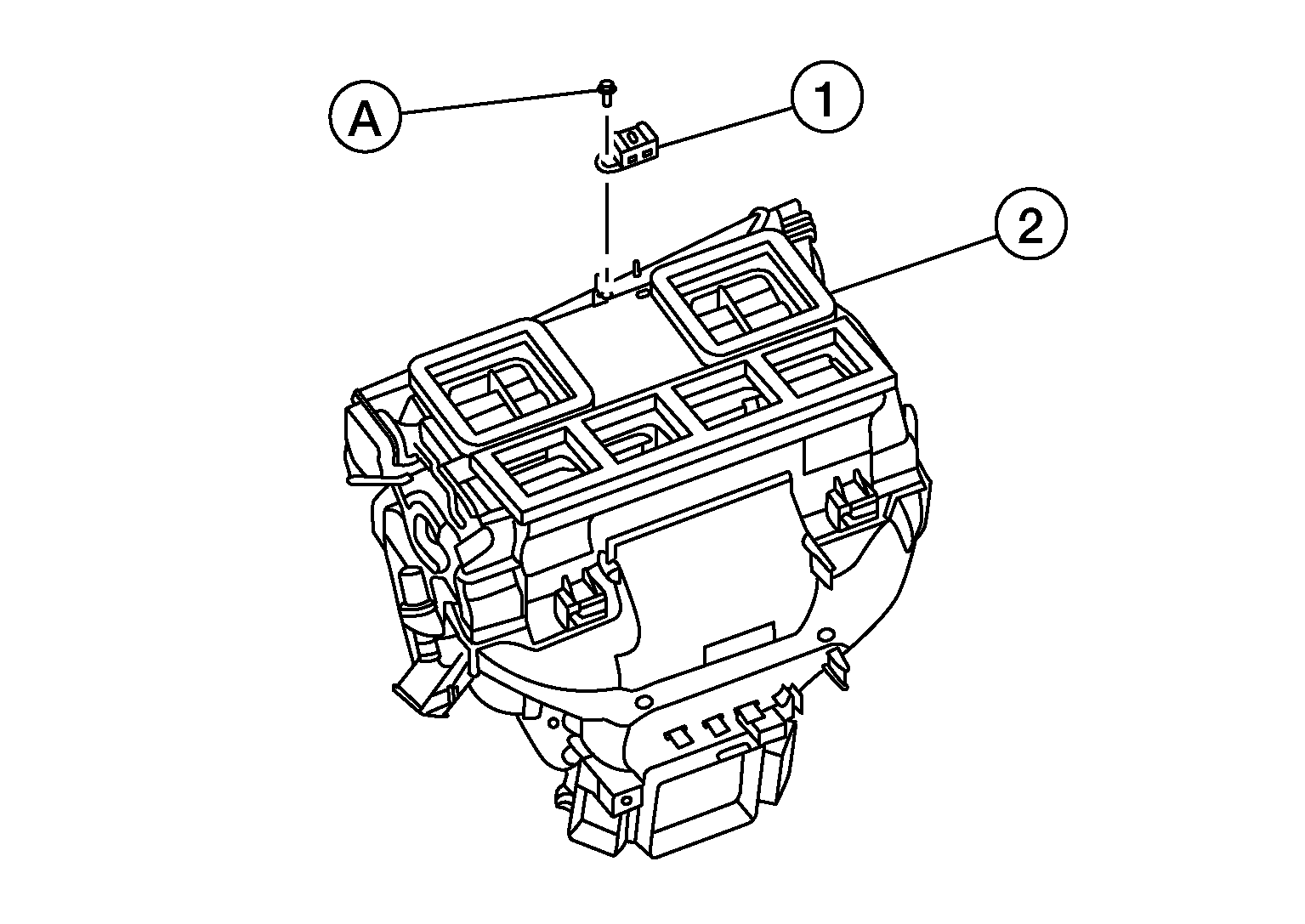

    GNSAWDIA1233Z-233Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove screw (A) and dongle unit (1) from heating and cooling unit assembly (2).
