Removal and Installation: Removal

CAUTION: If replacing ADAS control unit, perform "Before replace ECU" of "Read/Write Configuration" to save or print current vehicle specification. Refer to Description .
  1. Disconnect the battery negative terminal. Refer to Removal and Installation (Battery) .
  2. Remove the glove box assembly. Refer to Removal and Installation .

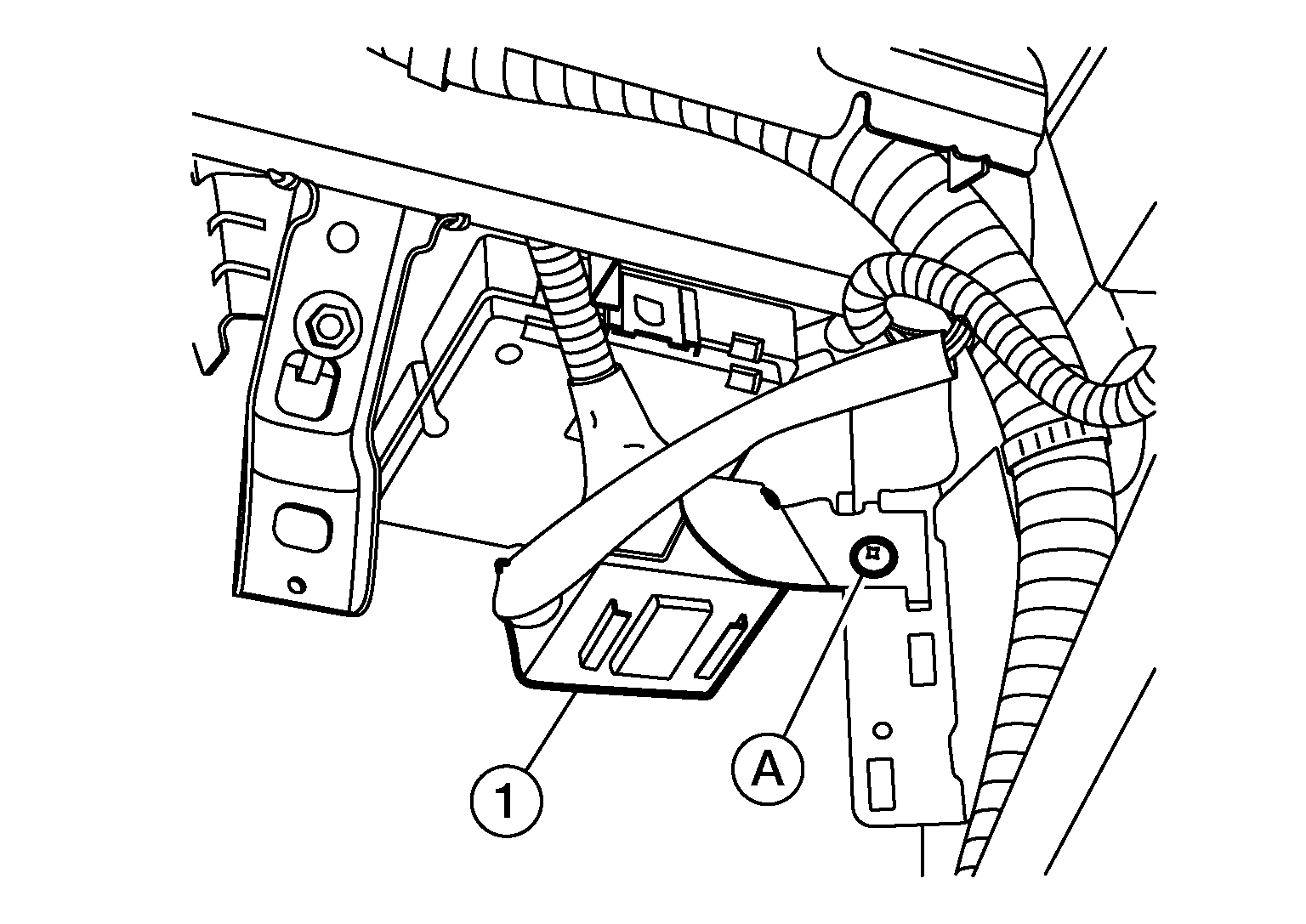

  3. Disconnect the harness connector from the ADAS control unit (1).
    GNSALOIA0107Z-107Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove bolt (A) and remove ADAS control unit.
