VCR CONTROL MODULE : Exploded View
VCR CONTROL MODULE : Exploded View

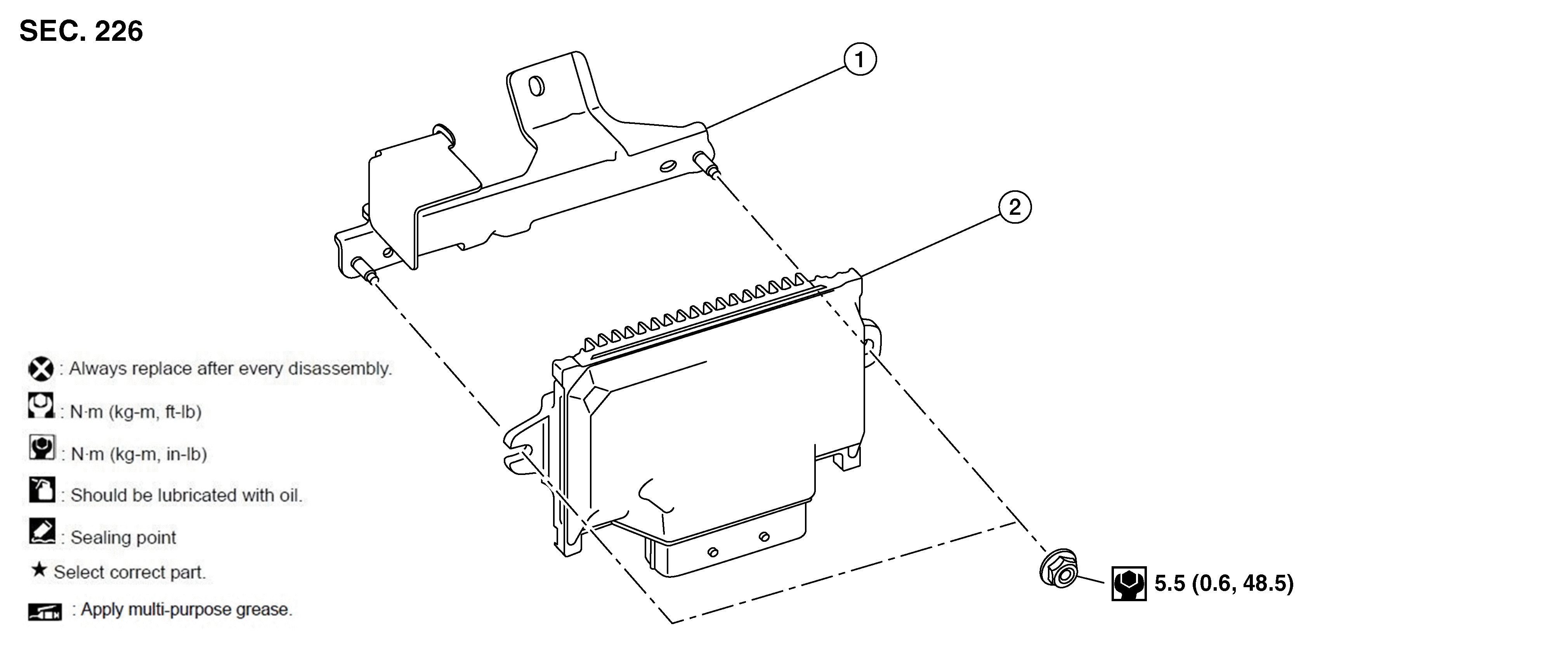

Fig 1: VCR Control Module With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Bracket
2.
VCR control module
Courtesy of NISSAN NORTH AMERICA, INC.
