Engine Control System (KR20DDET) (3 Of 3)
>>
Removal And Installation
>>
Active Torque Rod Control Module
>>
ACTIVE TORQUE ROD CONTROL MODULE : Exploded View
ACTIVE TORQUE ROD CONTROL MODULE : Exploded View

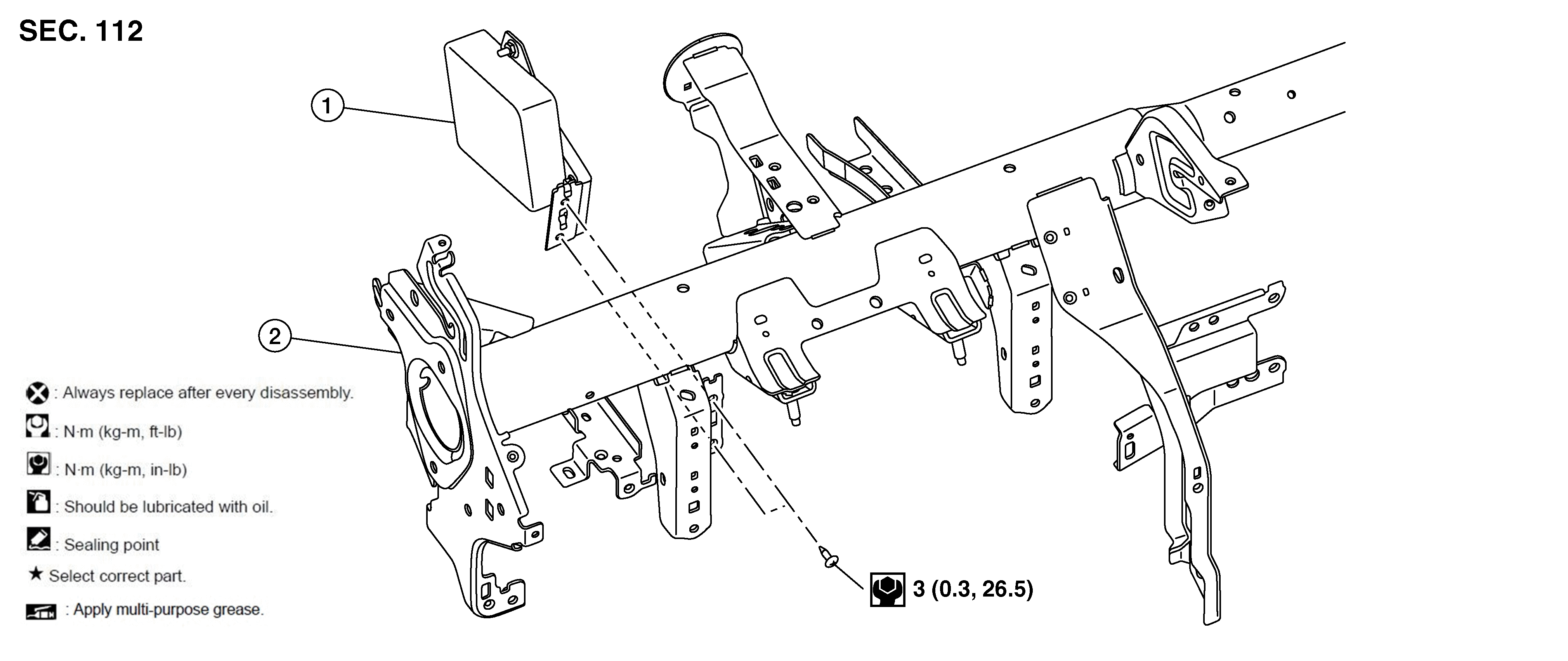

Fig 1: Active Torque Rod Control Module With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Active torque rod control module
2.
Steering member
