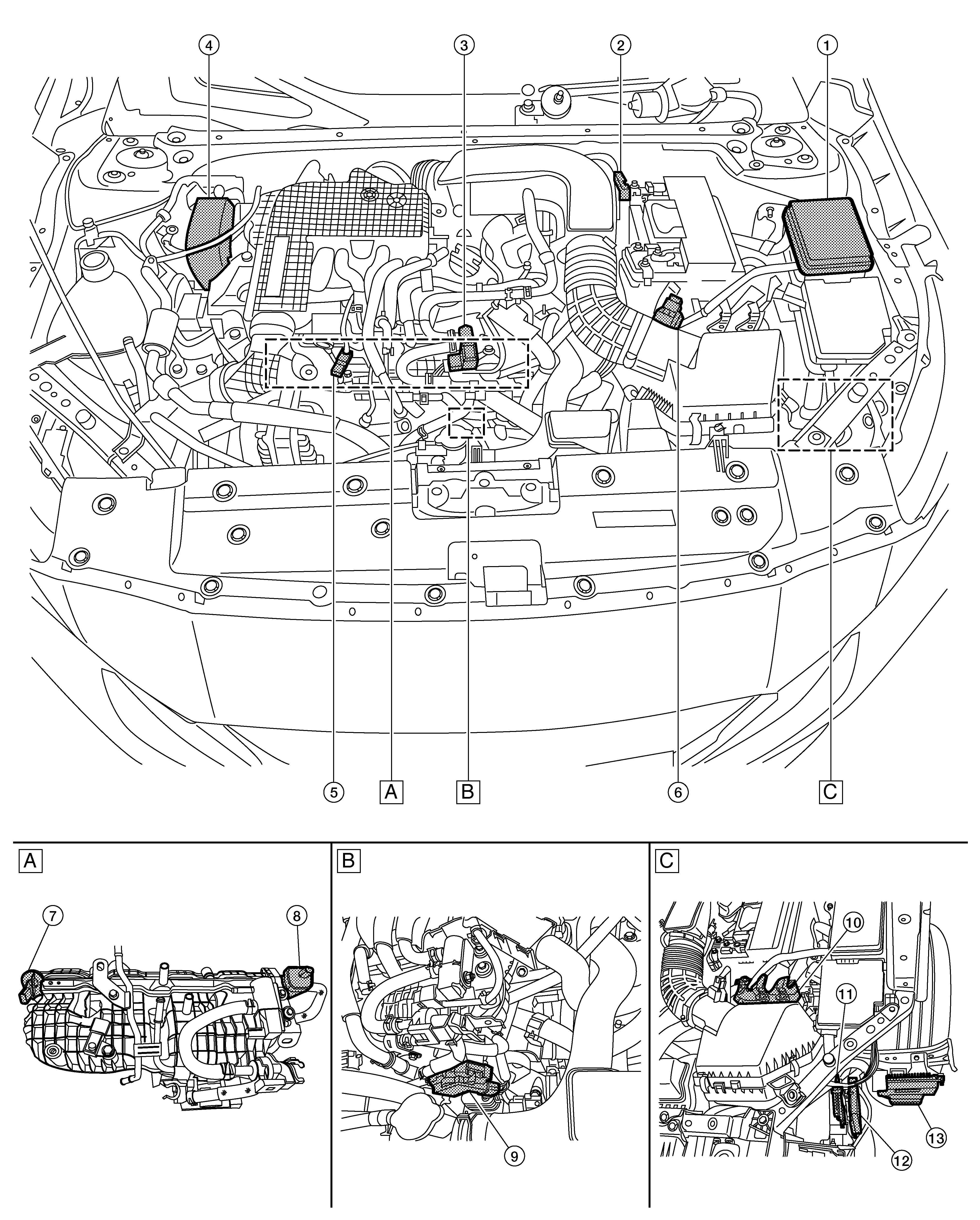

Engine Room Compartment
|
|
Left center of engine compartment |
|
Right front of vehicle |
|
Left front of engine compartment |
|
|
IPDM E/R |
|
Battery current sensor |
|
EVAP purge control solenoid valve |
|
|
Active torque rod actuator |
|
MAP sensor |
|
Mass air flow sensor Electric throttle control actuator |
|
|
Intake manifold runner control valve position sensor |
|
Intake manifold runner control valve motor |
|
Electric throttle control actuator |
|
|
ECM |
|
TCM |
|
Electric intake valve timing control module |
|
|
VCR control module |
