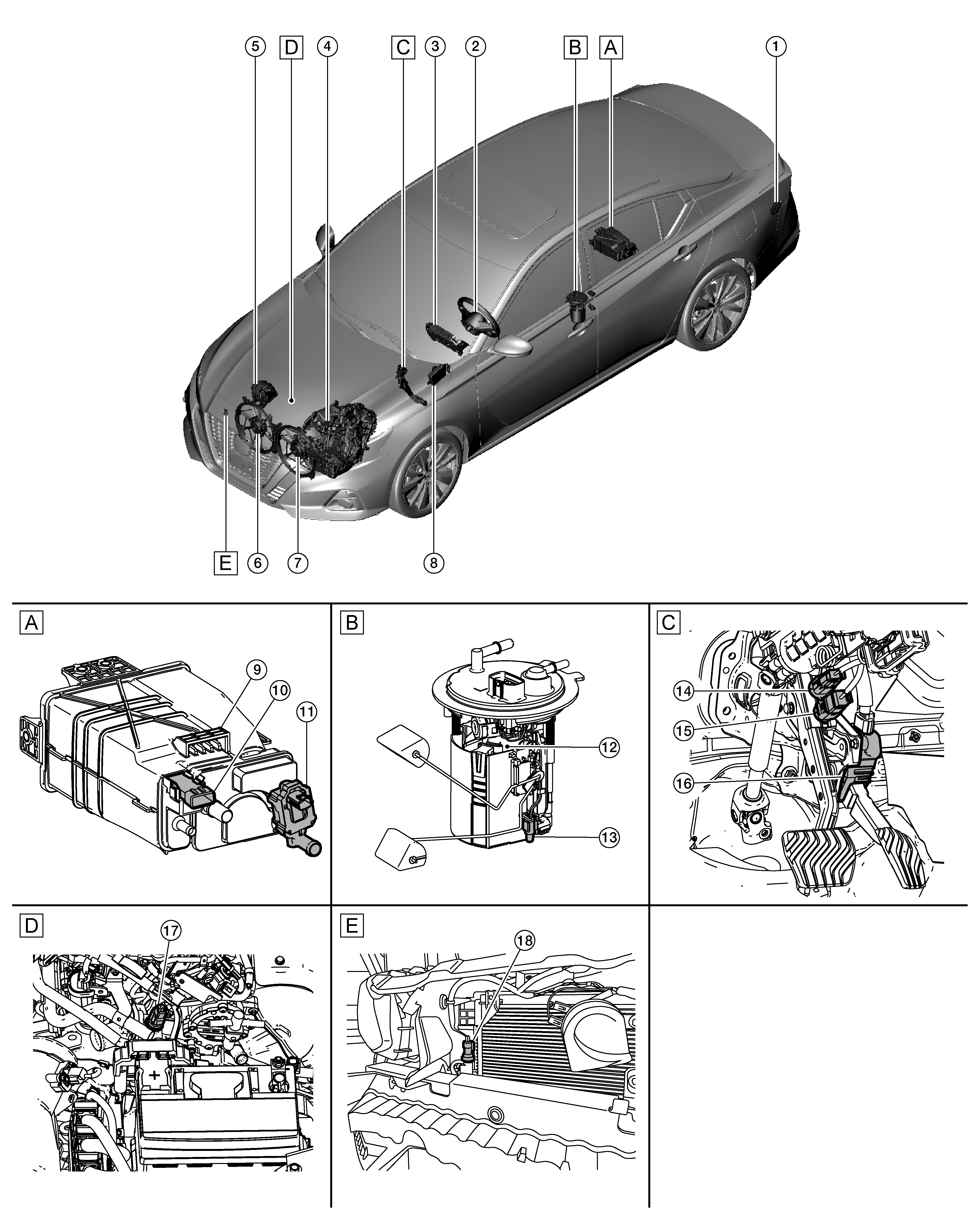

Body Compartment
|
|
Rear of fuel tank area |
|
Inside fuel tank area |
|
Pedal periphey area |
|
|
Left side of engine |
|
Right front of vehicle |
|
|
Fuel pump control module |
|
ASCD/ICC steering switch |
|
Combination meter |
|
|
Transmission range switch |
|
Altemator |
|
Cooling fan motor 2 |
|
|
Cooling fan motor 1 |
|
Active Torque Rod control module |
|
EVAP canister |
|
|
EVAP canister system pressure sensor |
|
EVAP canister vent control valve |
|
Fuel level sensor unit and fuel pump |
|
|
Fuel tank temperature sensor |
|
Brake pedal position switch |
|
Stop lamp switch |
|
|
Accelerator pedal position sensor |
|
Engine coolant temperature sensor |
|
Refrigerant pressure sensor |
