Air Flow

WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.

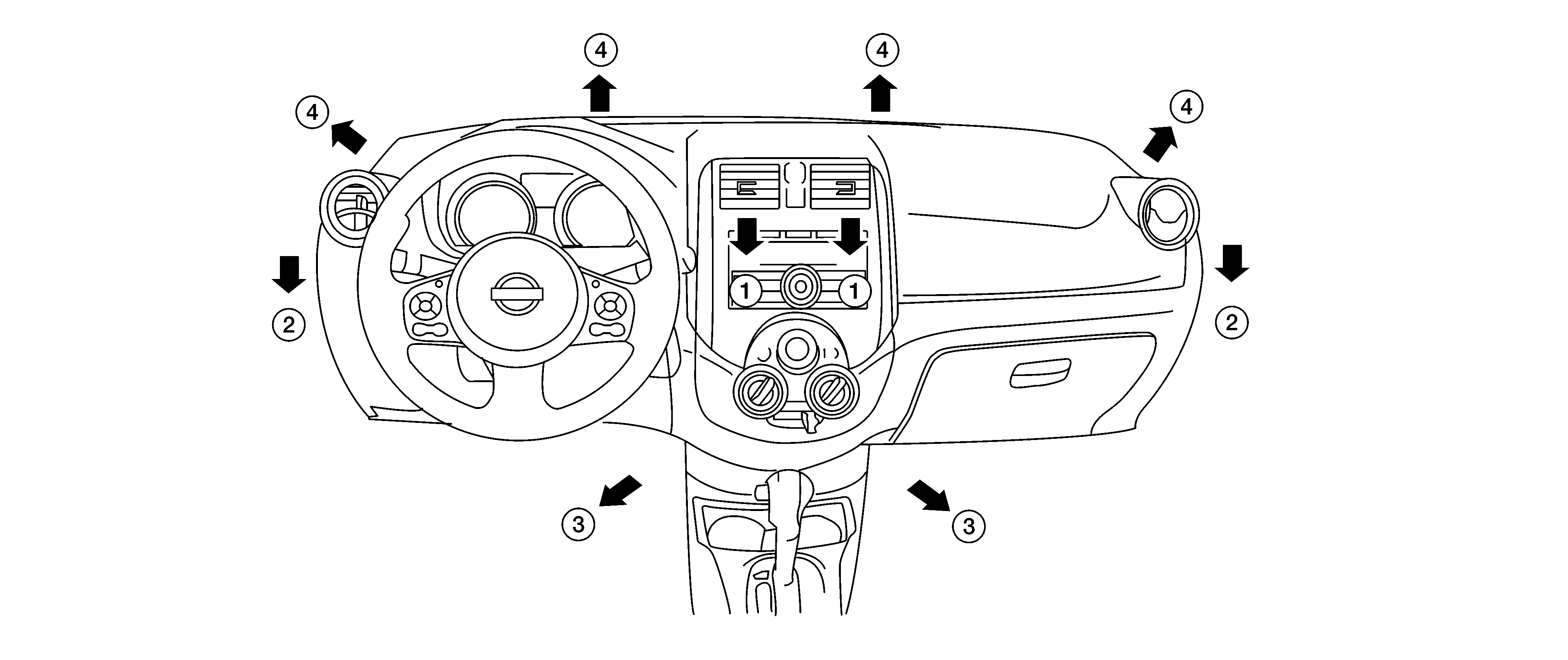

Front

G09618553Courtesy of NISSAN NORTH AMERICA, INC.

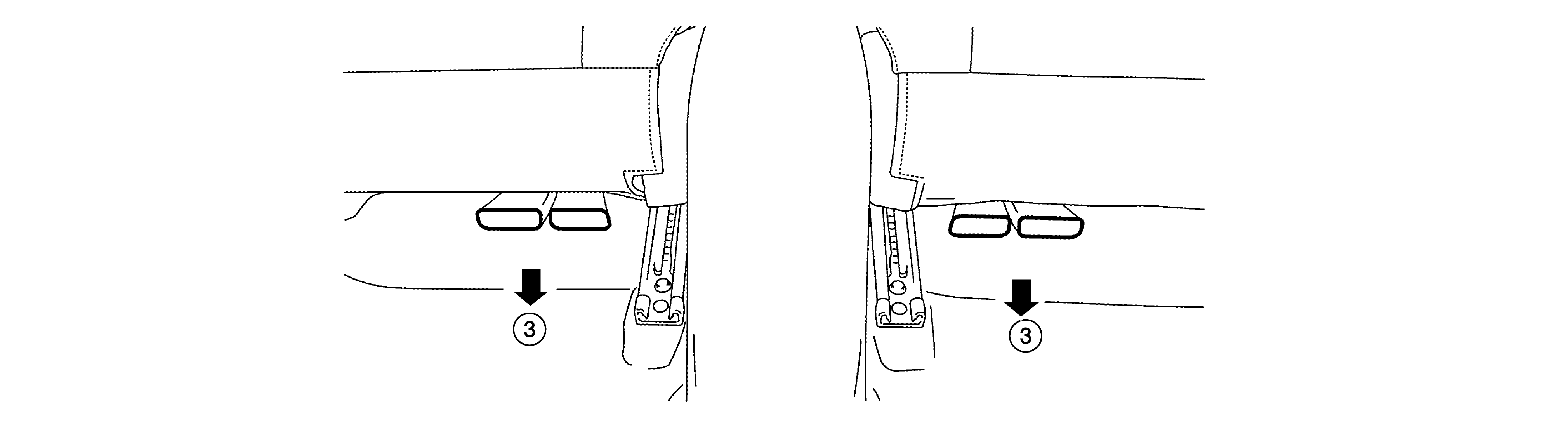

Rear (if equipped)

G08200421Courtesy of NISSAN NORTH AMERICA, INC.

: Applicable

MODE/DEF setting AIR OUTLET
Ventilator Foot Defroster (4)
Center (1) Side (2) Front (3) Rear (3) (Canada only)
HEAT1 * * - - -
HEAT3 * * * * -
HEAT2 - * * * *
HEAT4 - * * * *
WINDEF - * - - *
