Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.

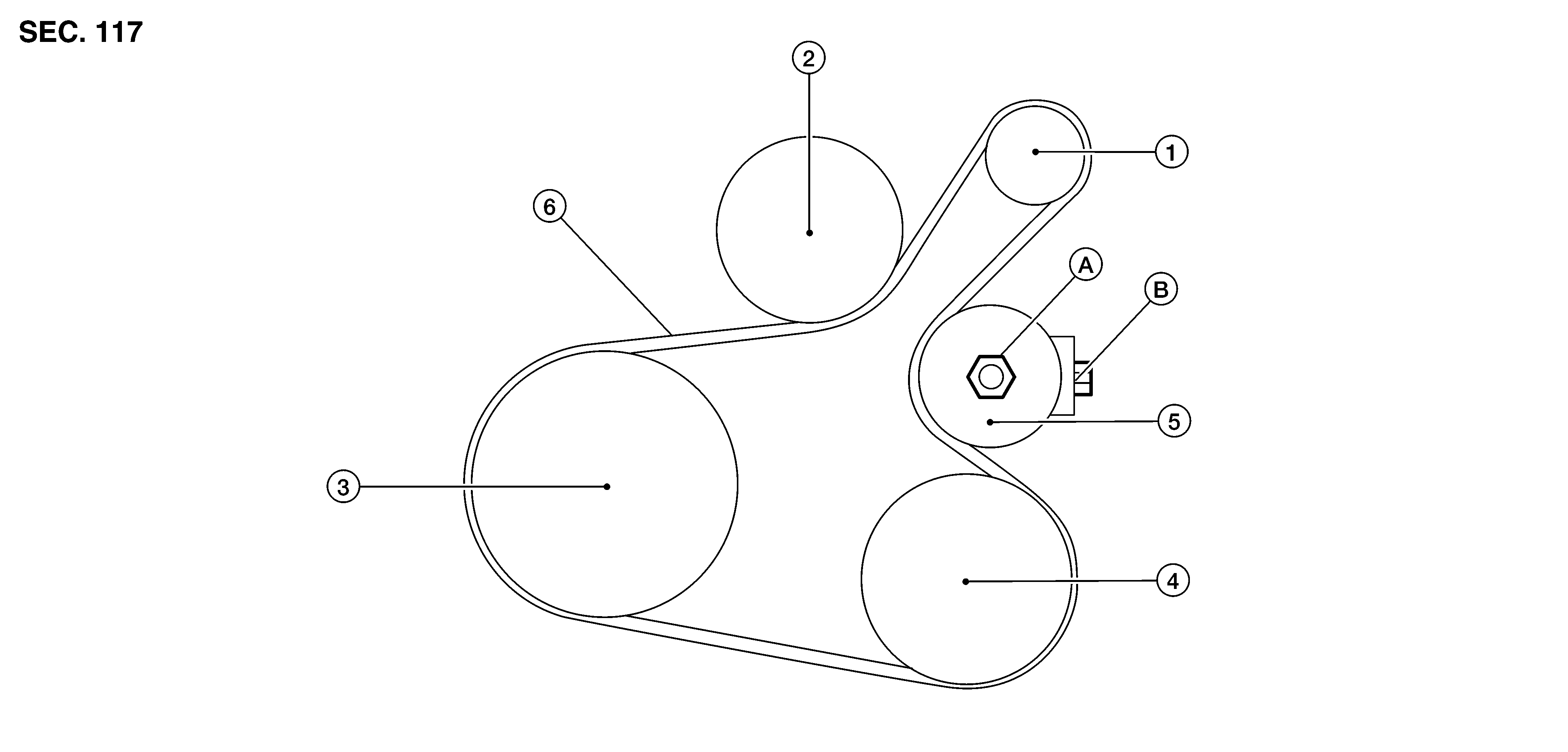

GNSALBIA1157ZZ-157Courtesy of NISSAN NORTH AMERICA, INC.
1. Generator 2. Water pump 3. Crankshaft pulley
4. A/C compressor 5. Tensioner idler pulley 6. Drive belt
A. Lock nut B. Adjusting bolt
