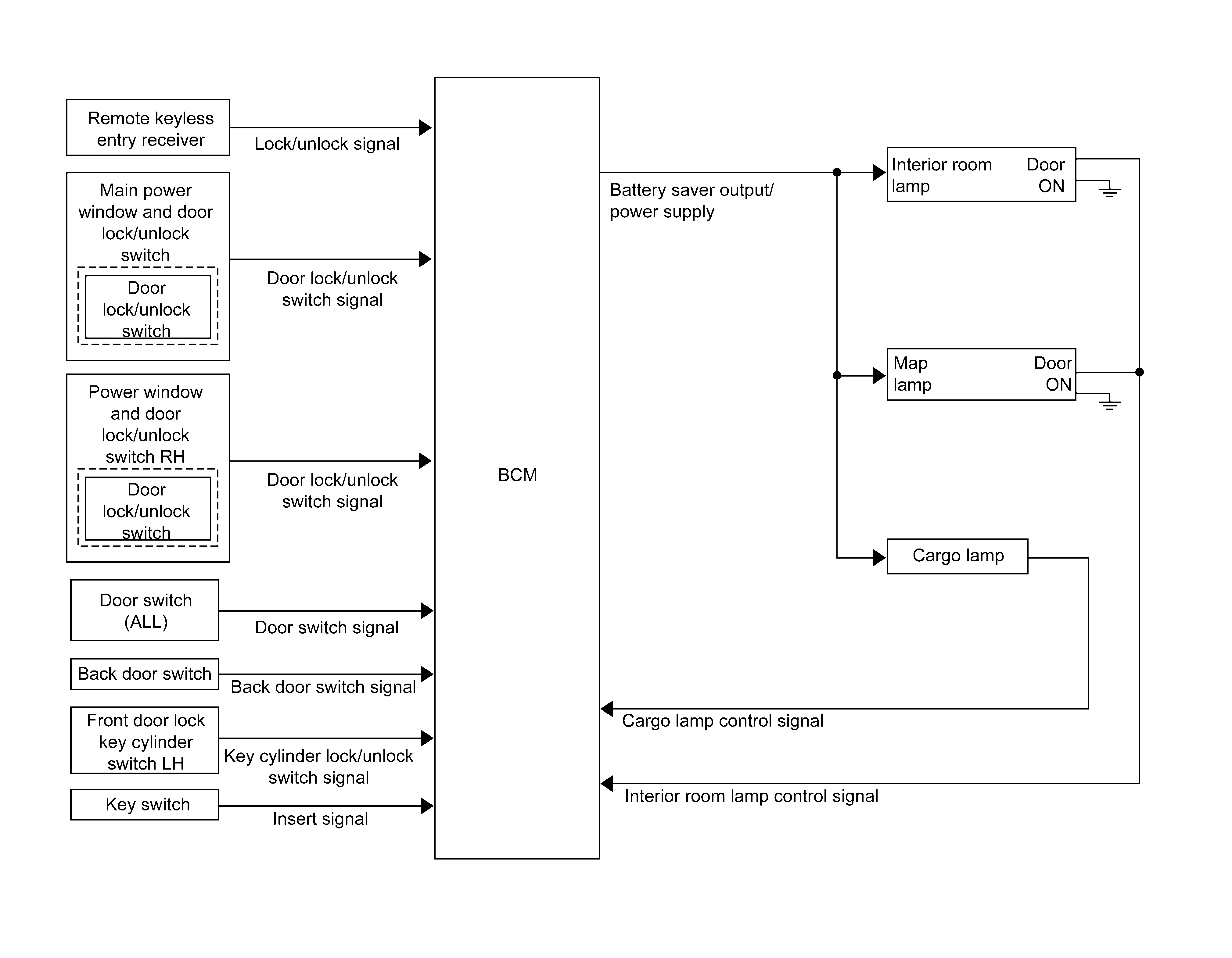

System Diagram (Without Intelligent Key System)

WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.
G09604737Courtesy of NISSAN NORTH AMERICA, INC.
