Disassembly And Assembly: Assembly
WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.
- Install bleeder valve and cap.
- Apply clean brake fluid to new piston seal (1), and install to groove in cylinder body.CAUTION:
Do not reuse piston seal.
- Apply Syntheso® GLK 1 grease or equivalent to piston boot (1). Cover the piston (2) end with new piston boot, and then install cylinder side lip on piston boot securely into a groove on cylinder body.CAUTION:
Do not reuse piston boot.

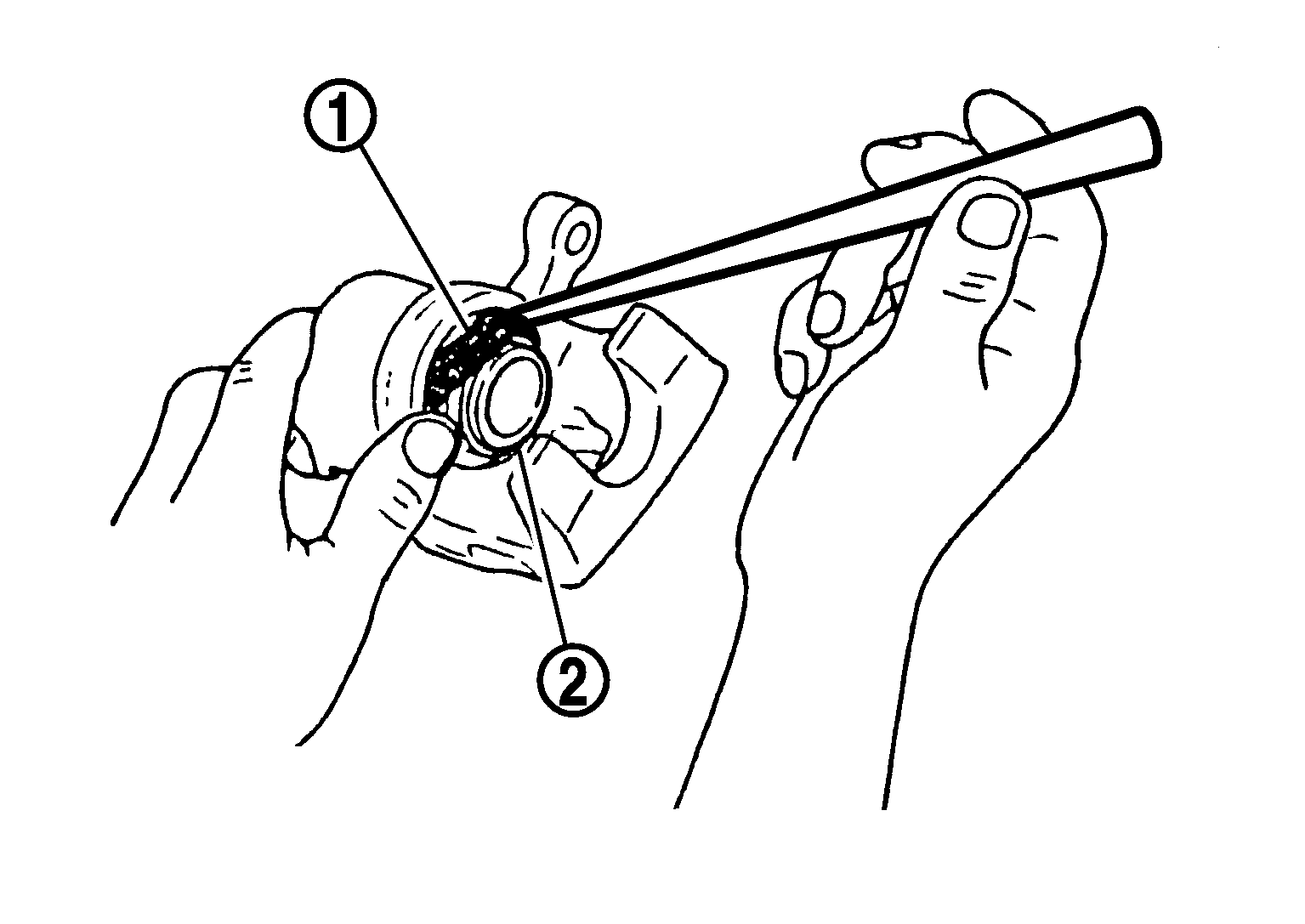

- Push piston (1) into cylinder body by hand and push piston boot (2) piston-side lip into the piston groove.CAUTION:
Press the piston evenly and vary the pressing point to prevent cylinder inner wall from being rubbed.

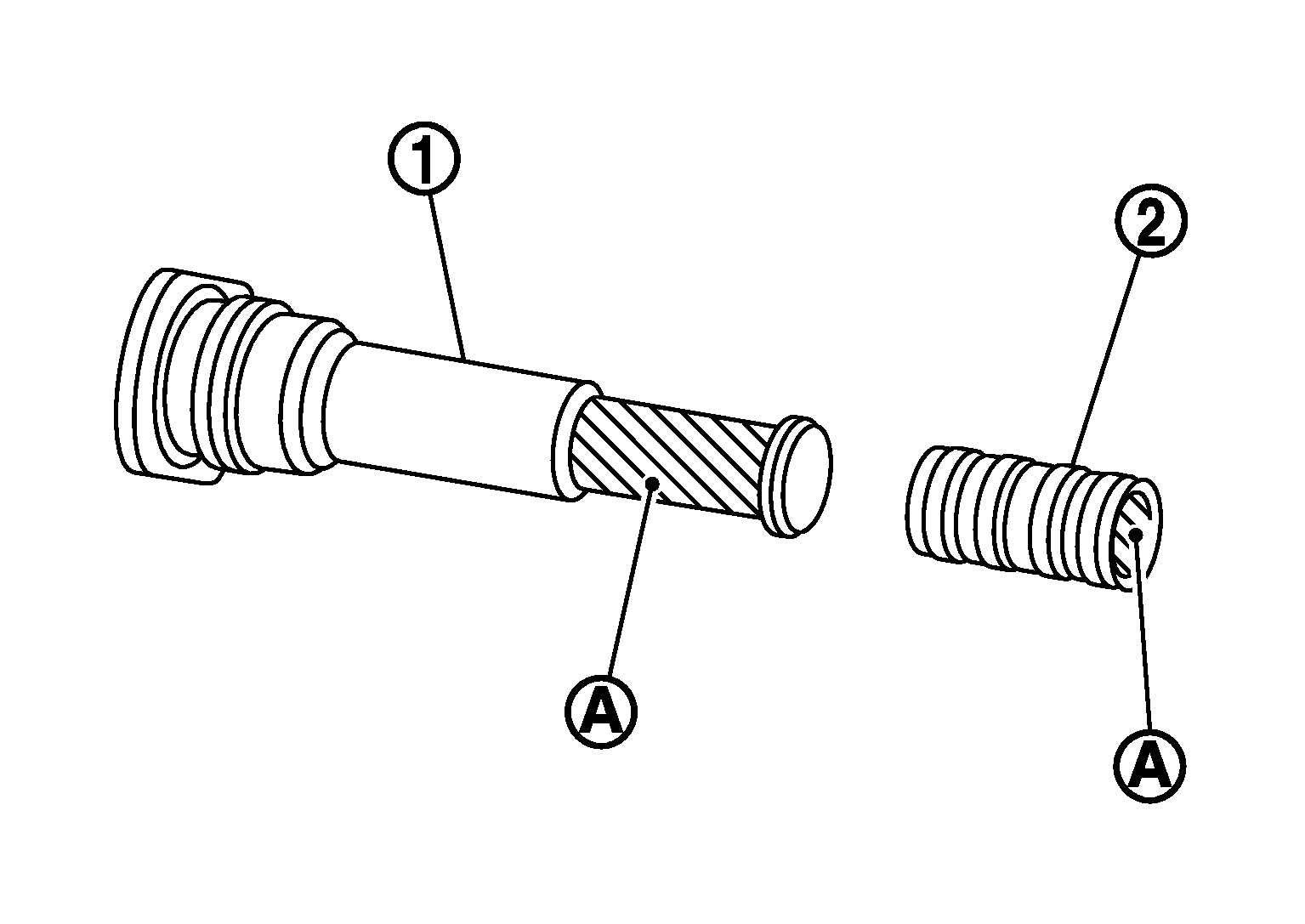

- Apply rubber grease to the mating surfaces (A) of the sliding pin (1) and the bushing (2).
- Install the bushing to the sliding pin.

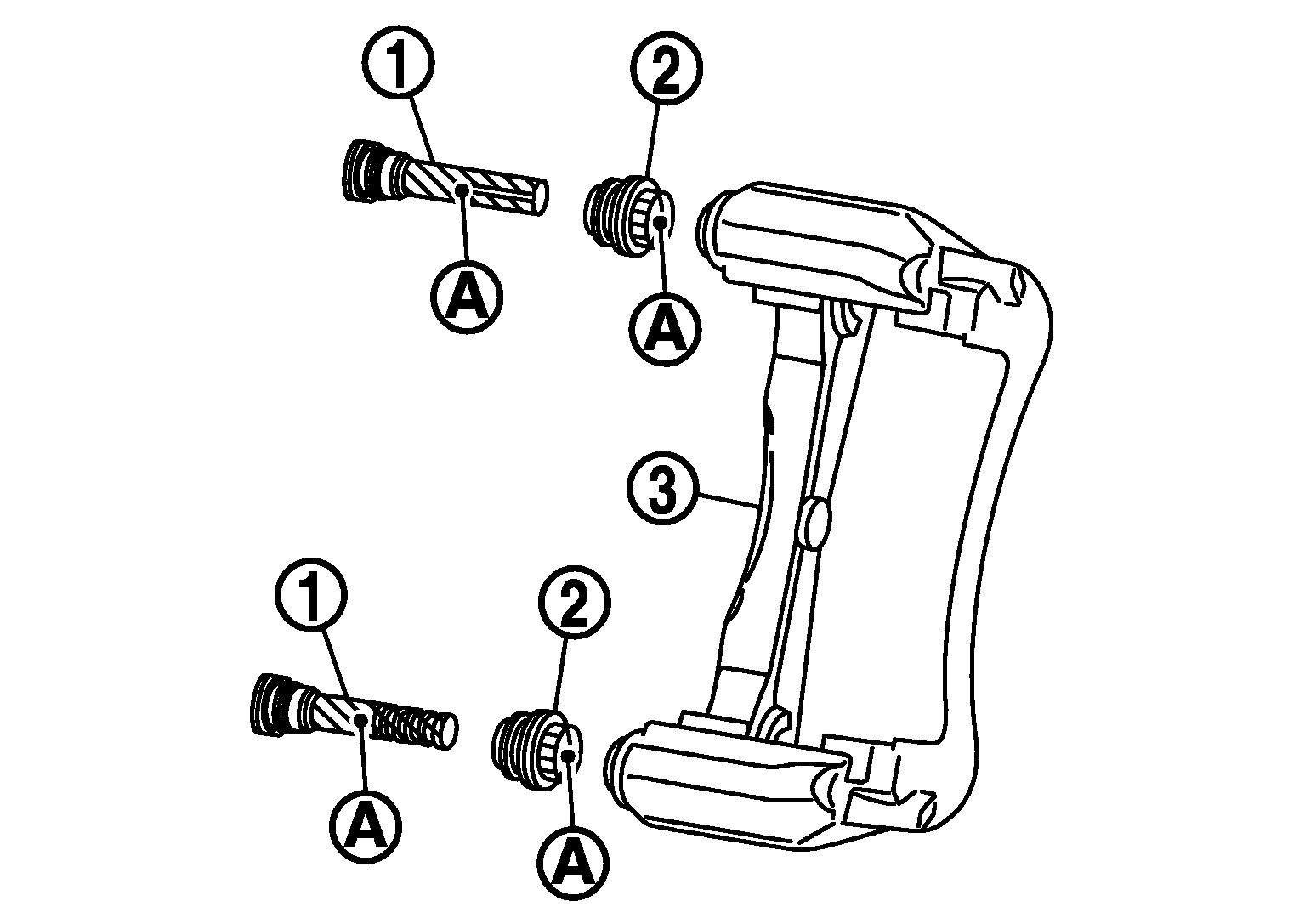

- Apply rubber grease to the mating surfaces of the sliding pins (1) and the sliding pin boots (2).
- Install the sliding pins and sliding pin boots to the torque member (3).
- Install the cylinder body to the torque member with the sliding pin bolts. Refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS .
