Exploded View

WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.

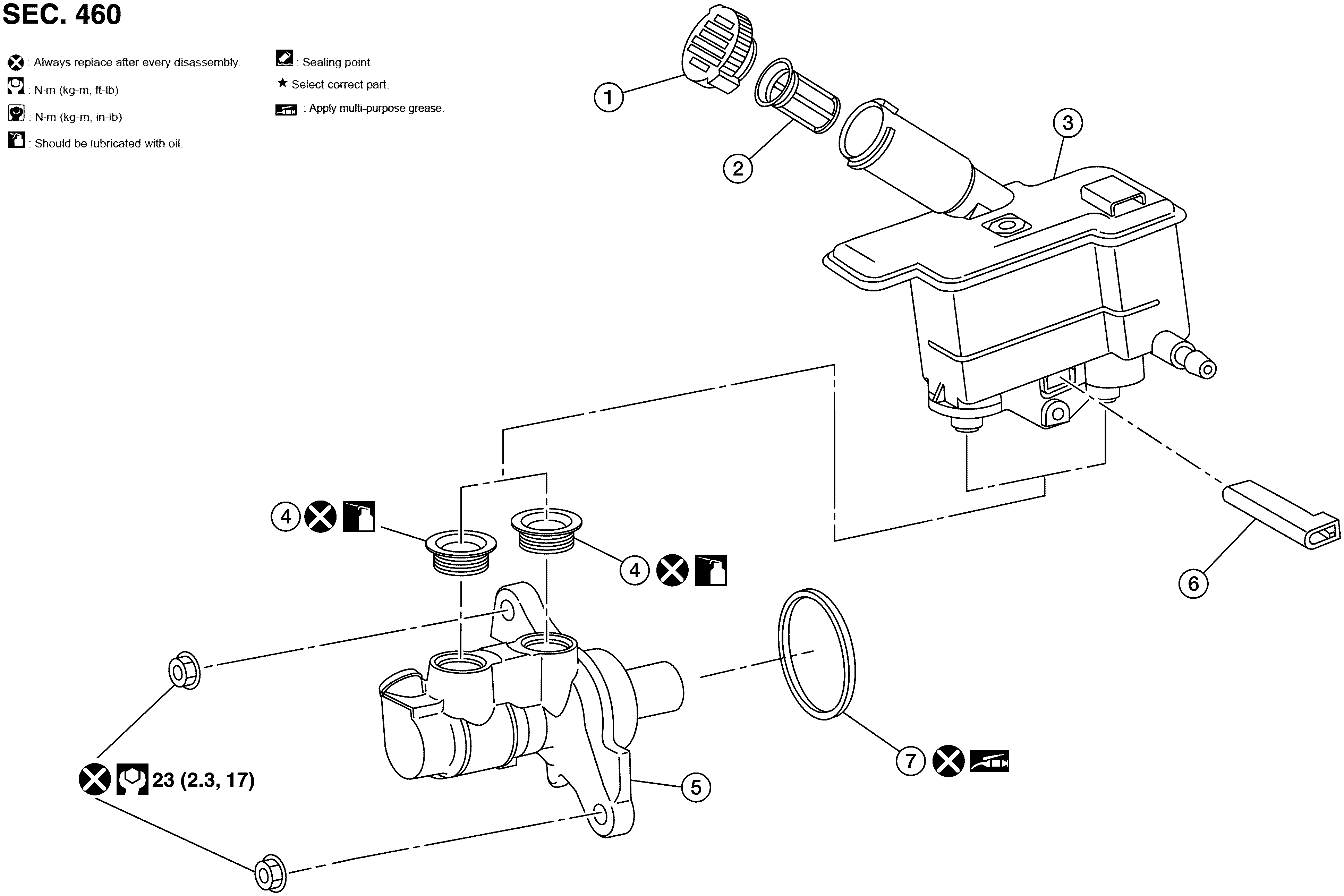

Fig 1: Brake Master Cylinder With Torque Specifications
GNSAWFIA1021ZZ-021Courtesy of NISSAN NORTH AMERICA, INC.
1. Reservoir cap 2. Brake fluid strainer 3. Reservoir tank
4. Grommet 5. Brake master cylinder 6. Brake fluid level switch
7. O-ring OIL Apply brake fluid GREASE PBC (Poly Butyl Cuprysil) grease or silicone-based grease
