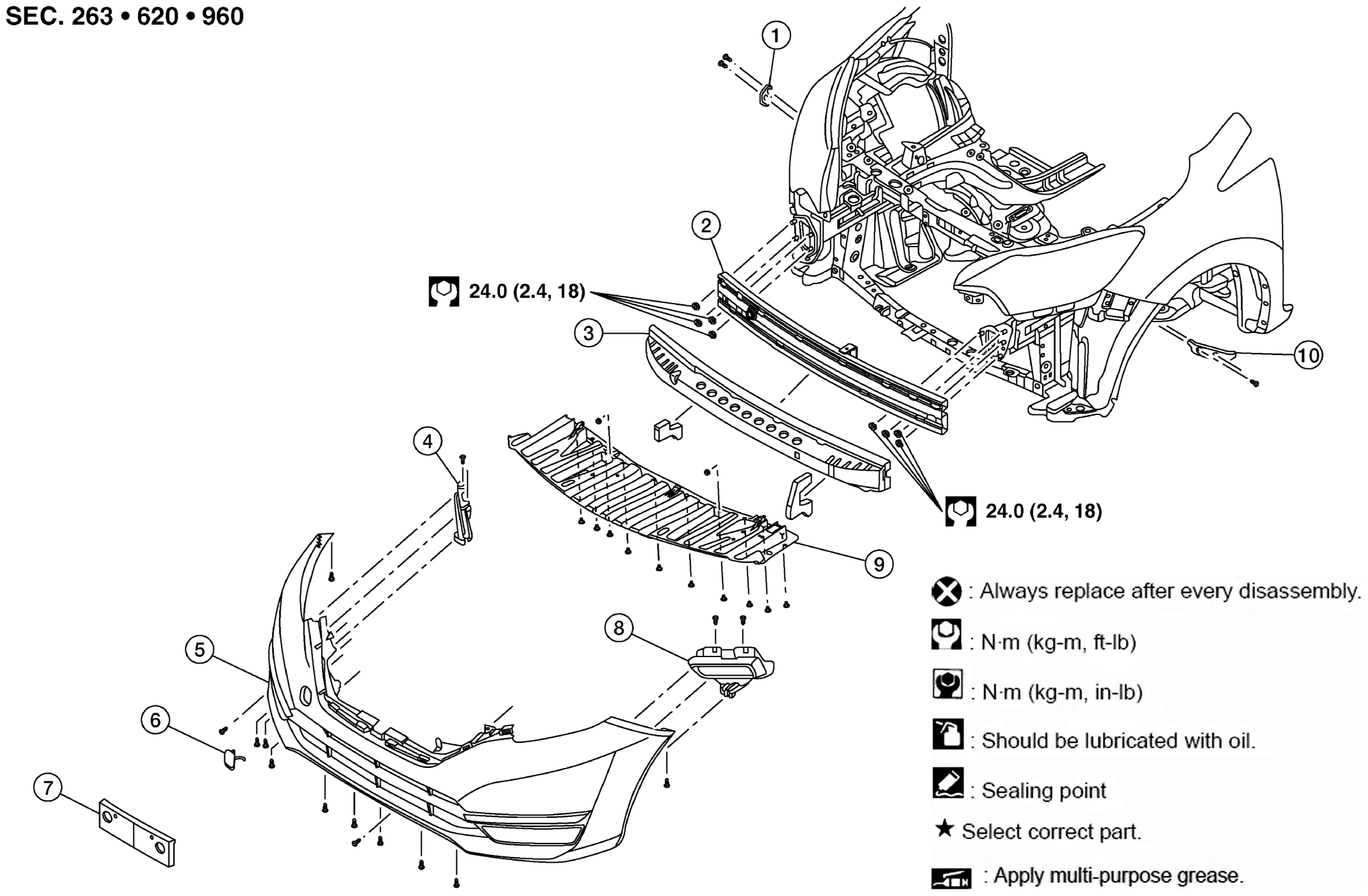

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Front bumper fascia side bracket (RH) | 2. | Front bumper reinforcement | 3. | Front energy absorber |
| 4. | Front fog lamp finisher (RH) | 5. | Front bumper fascia | 6. | Front bumper bracket cover |
| 7. | Front license plate bracket | 8. | Front fog lamp finisher (LH) | 9. | Front under cover |
| 10. | Front bumper fascia side bracket (LH) |
