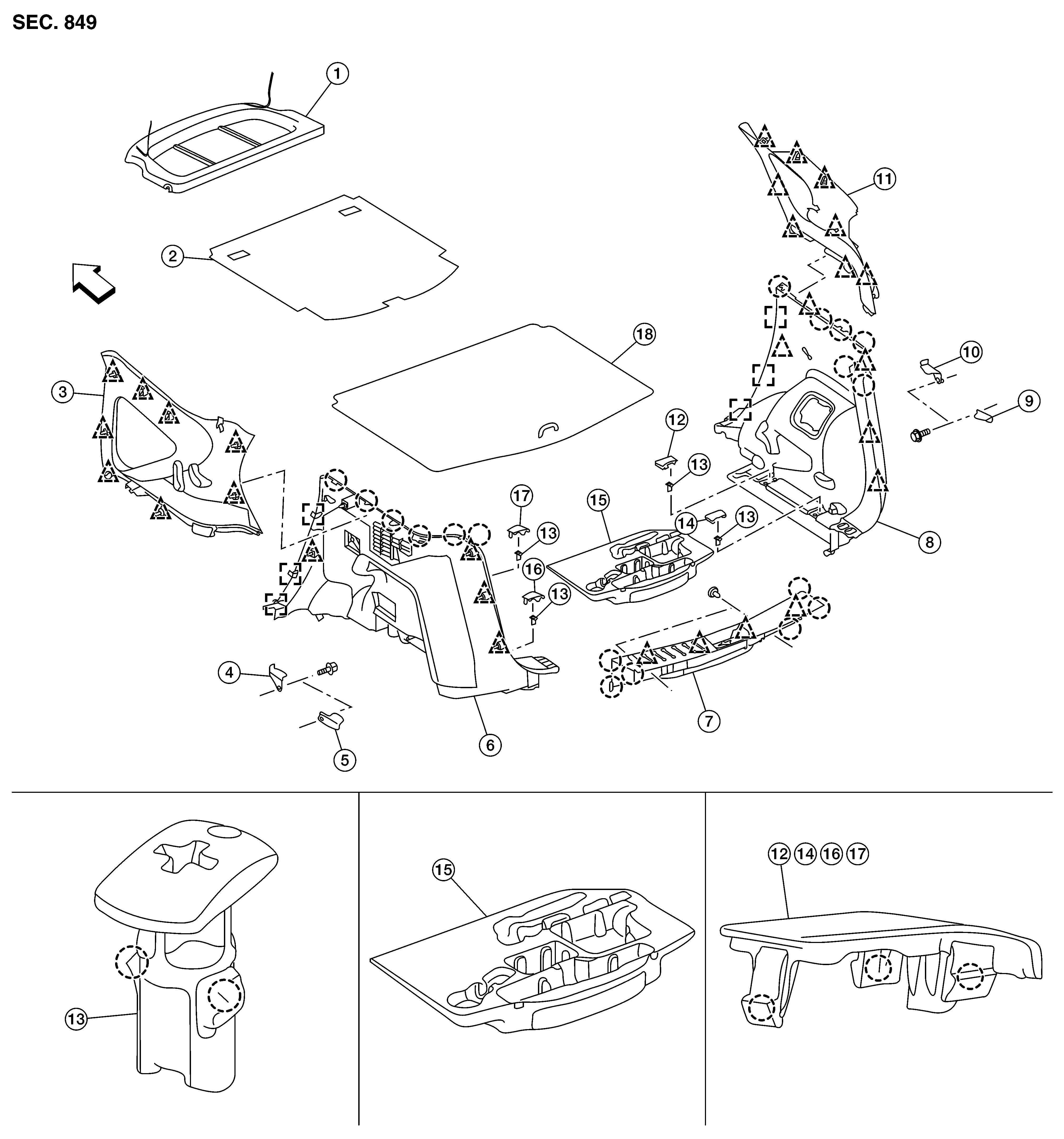

Exploded View

1.

Parcel shelf finisher (if equipped)

2.

Luggage floor board (if equipped)

3.

Luggage side upper finisher (LH)

4.

Luggage side front reinforcement (LH)

5.

Luggage side rear reinforcement (LH)

6.

Luggage side lower finisher (LH)

7.

Luggage rear plate

8.

Luggage side lower finisher (RH)

9.

Luggage side rear reinforcement (RH)

10.

Luggage side front reinforcement (RH)

11.

Luggage side upper finisher (RH)

12.

Luggage side front cover (RH)

13.

Luggage side clip

14.

Luggage side rear cover (RH)

15.

Luggage floor box

16.

Luggage side rear cover (LH)

17.

Luggage side front cover (LH)

18.

Luggage floor trim

Pawl

Metal clip

Clip

Front
