Exploded View

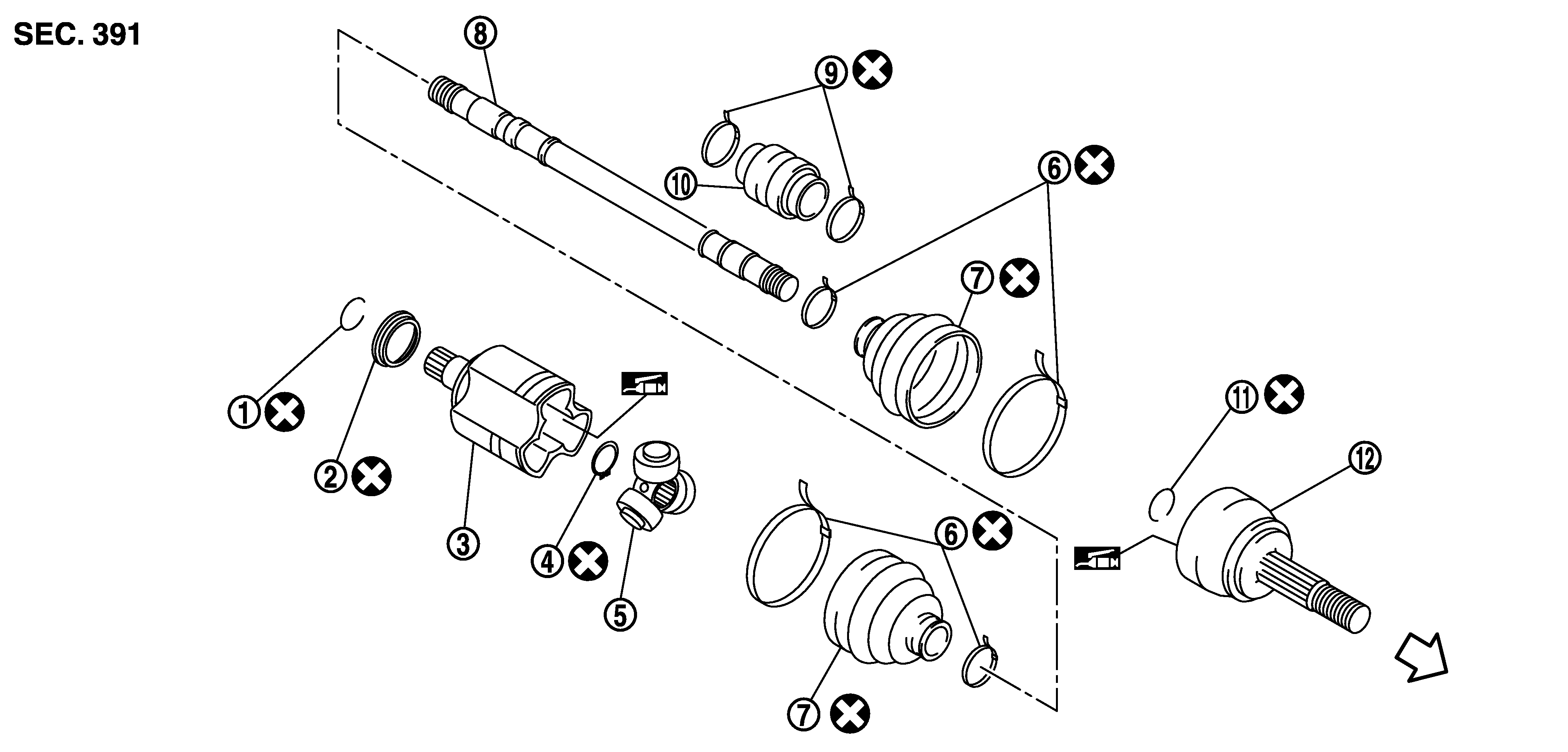

Left Hand Side
|
1. |
Circular clip |
2. |
Dust shield |
3. |
Slide joint housing |
|
4. |
Snap ring |
5. |
Spider assembly |
6. |
Boot band |
|
7. |
Boot |
8. |
Shaft |
9. |
Damper band |
|
10. |
Dynamic damper |
11. |
Circular clip |
12. |
Joint sub-assembly |
|
|
Wheel side |

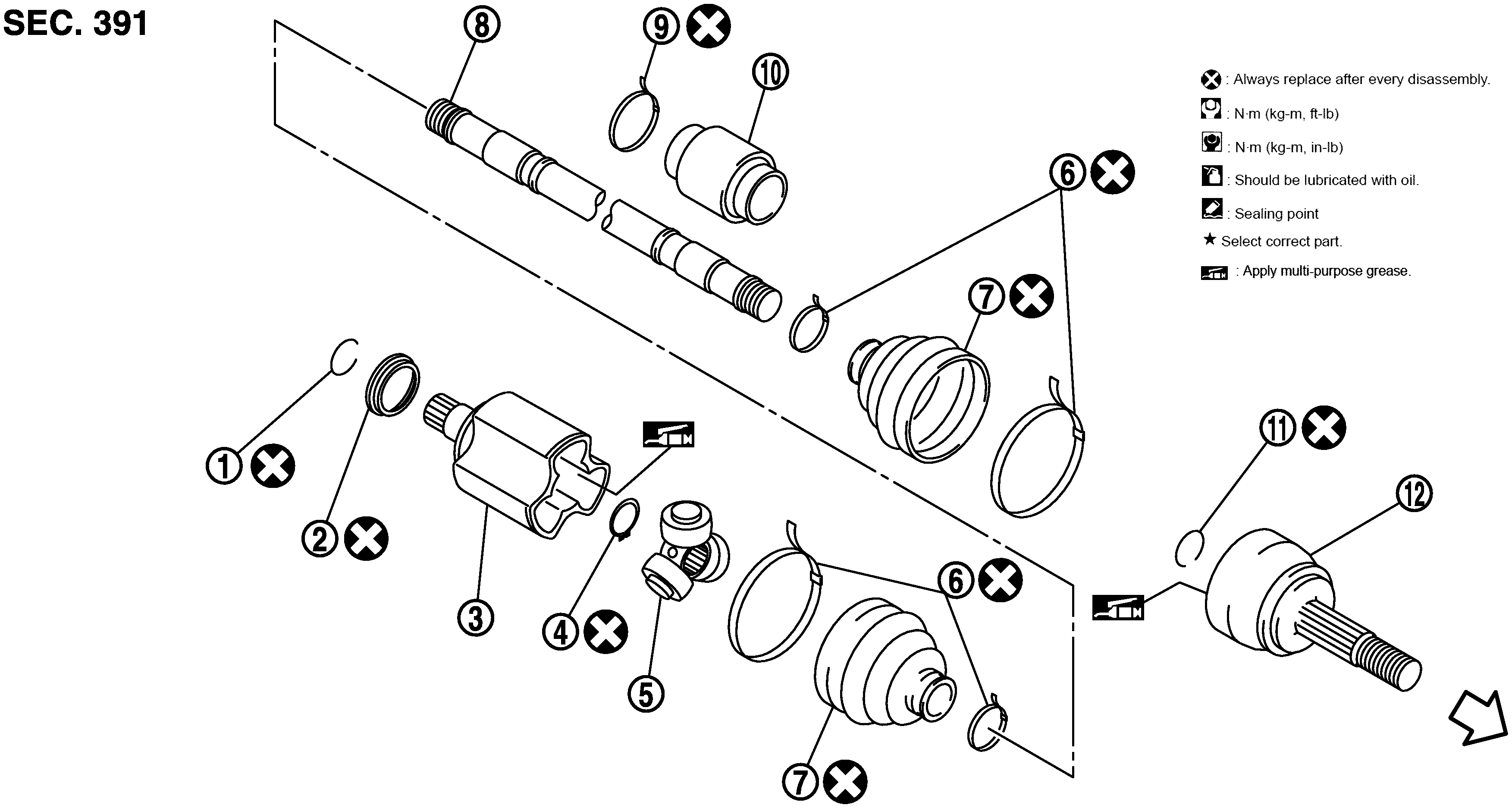

Right Hand Side
|
1. |
Circular clip |
2. |
Dust shield |
3. |
Slide joint housing |
|
4. |
Snap ring |
5. |
Spider assembly |
6. |
Boot band |
|
7. |
Boot |
8. |
Shaft |
9. |
Damper Band |
|
10. |
Dynamic damper |
11. |
Circular clip |
12. |
Joint sub-assembly |
|
|
Wheel side |
