Exploded View
Exploded View

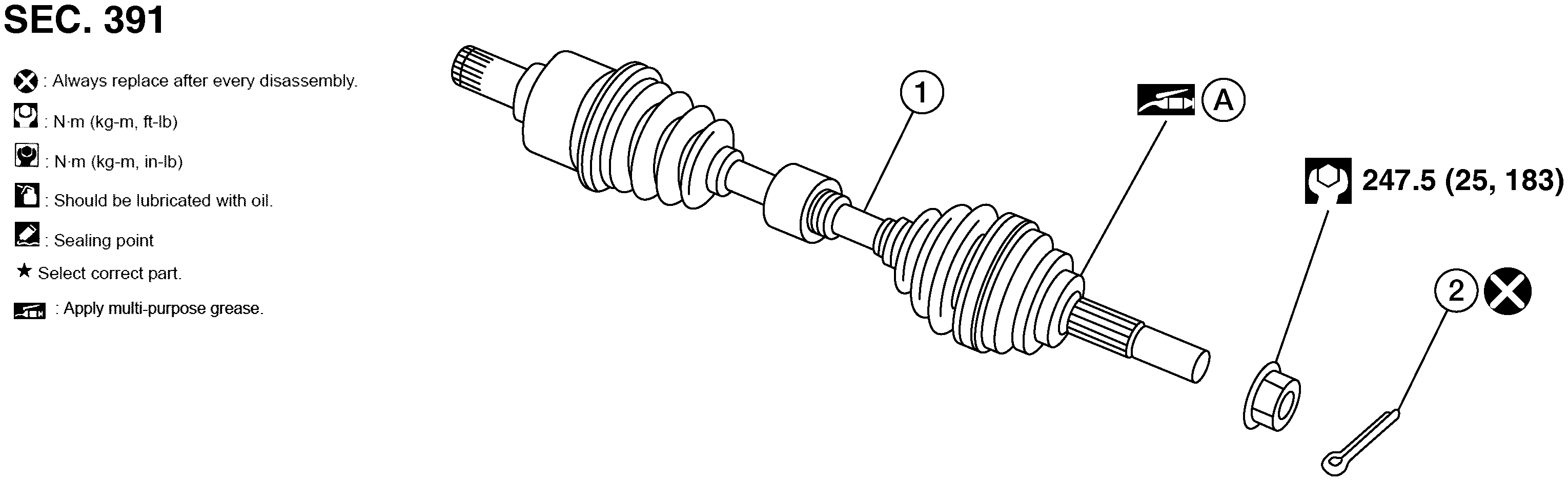

Fig 1: Front Drive Shaft With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Drive shaft
2.
Cotter pin
A.
Apply Molykote M77
Courtesy of NISSAN NORTH AMERICA, INC.
