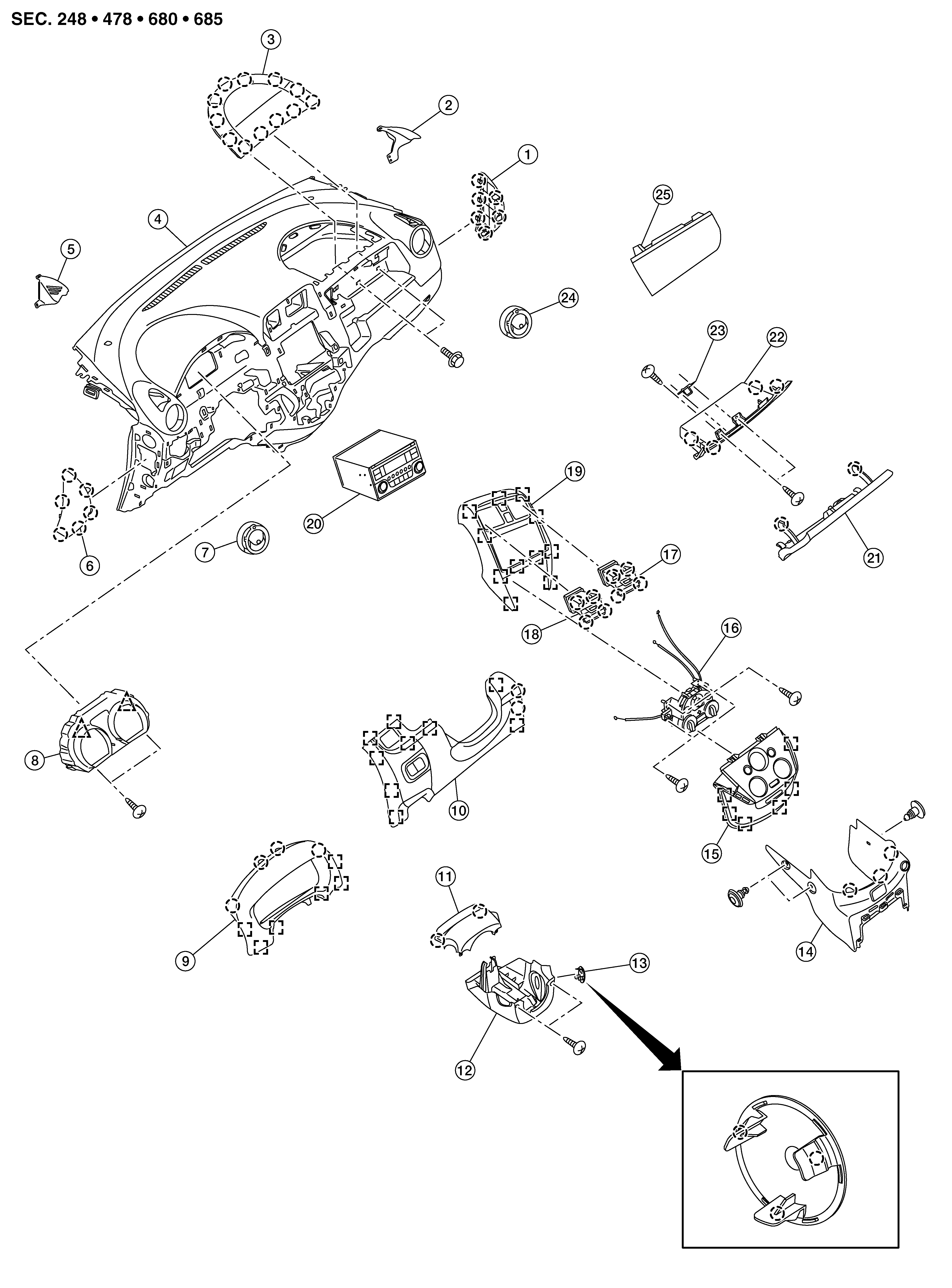

Exploded View
|
1. |
Instrument side finisher (RH) |
2. |
Side defroster grille (RH) |
3. |
Passenger air bag module |
|
4. |
Instrument panel assembly |
5. |
Side defroster grille (LH) |
6. |
Instrument side finisher (LH) |
|
7. |
Side ventilator grille (LH) |
8. |
Combination meter |
9. |
Cluster lid A |
|
10. |
Instrument lower panel LH |
11. |
Steering column upper cover |
12. |
Steering column lower cover |
|
13. |
Steering lock escutcheon |
14. |
Center console lower |
15. |
Front air control finisher |
|
16. |
Front air control |
17. |
Center ventilator grille (RH) |
18. |
Center ventilator grille (LH) |
|
19. |
Cluster lid C |
20. |
Audio unit/AV control unit |
21. |
Glove box striker |
|
22. |
Glove box assembly |
23. |
Glove box striker |
24. |
Side ventilator grille (RH) |
|
25. |
Upper glove box |
|
Clip |
|
Pawl |
|
|
Metal clip |
