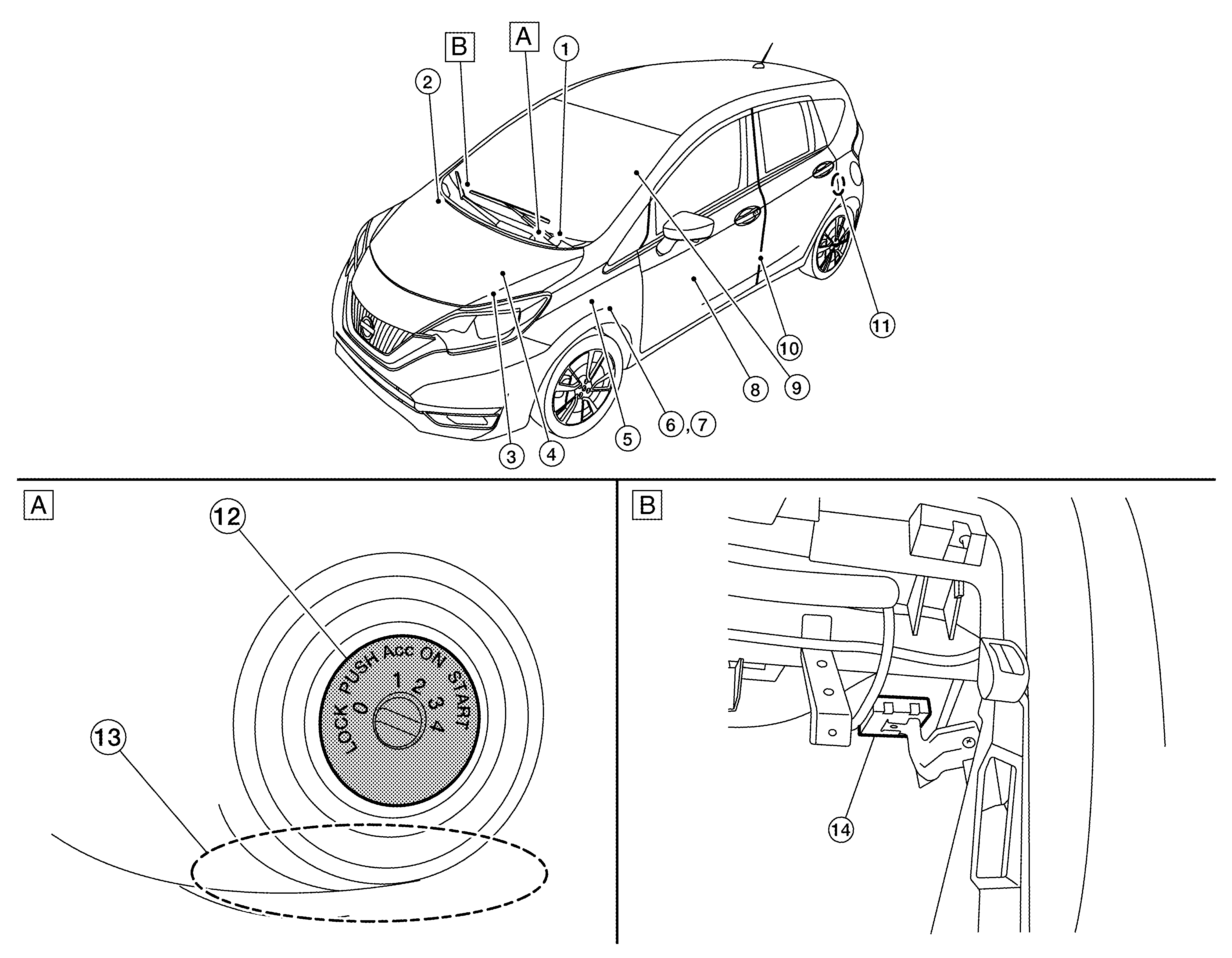

Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

View from right side of steering column

View with glove box door removed

No.	Component	Function
1.	Combination meter	Combination meter transmits the vehicle speed signal to BCM via CAN communication. BCM also receives the vehicle speed signal from ABS actuator and electric unit (control unit) via CAN communication. BCM compares both signals to detect the vehicle speed. Security indicator lamp is located on combination meter. Security indicator lamp blinks when ignition switch is in any position other than ON to warn that NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] is on board. Refer to Component Parts Location .
2.	ABS actuator and electric unit (control unit)	ABS actuator and electric unit (control unit) transmits the vehicle speed signal to BCM via CAN communication. BCM also receives the vehicle speed signal from the combination meter via CAN communication. BCM compares both signals to detect the vehicle speed. Refer to Component Parts Location for detailed installation location.
3.	Transmission range switch	Transmission range switch detects the CVT shift selector lever position.
4.	IPDM E/R	Starter control relay is used for the engine starting function. Starter control relay is controlled by IPDM E/R while communicating with BCM. IPDM E/R sends the starter control relay statu signal to BCM.
5.	BCM	BCM controls NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] and VEHICLE SECURITY SYSTEM. When the ignition switch is turned ON, BCM performs ID verification between BCM and ECM. If the ID verification result is OK, ECM can start engine. Refer to Component Parts Location for detailed installation location.
6.	Clutch interlock switch	Clutch interlock switch detects that clutch pedal is depressed, and then transmits ON/OFF signal to the BCM.
7.	Stop lamp switch	Stop lamp switch detects that brake pedal is depressed, and then transmits ON/OFF signal to the BCM.
8.	Main power window and door lock/unlock switch	Door lock and unlock switch is integrated into the main power window and door lock/unlock switch. Door lock and unlock switch transmits door lock/unlock operation signal to BCM. Refer to Component Parts Location .
9.	CVT shift selector (park position switch)	Park position switch is integrated into the CVT shift selector and detects that the selector lever is in the P (park) position, then transmits ON/OFF signal to the BCM and IPDM E/R.
10.	Front door switch LH	Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.
11.	Rear door switch LH	Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.
12.	Ignition switch	Input ignition switch ON/OFF condition to BCM.
13.	NATS antenna amp.	ID verification is performed between the BCM and the transponder integrated into the key via the NATS antenna amp.
14.	Remote keyless entry receiver	Remote keyless entry receiver receives button operation signal and key ID signal then transmits them to the BCM.
