Removal and Installation: Removal

  1. Remove NATS antenna amp. Refer to Removal and Installation .

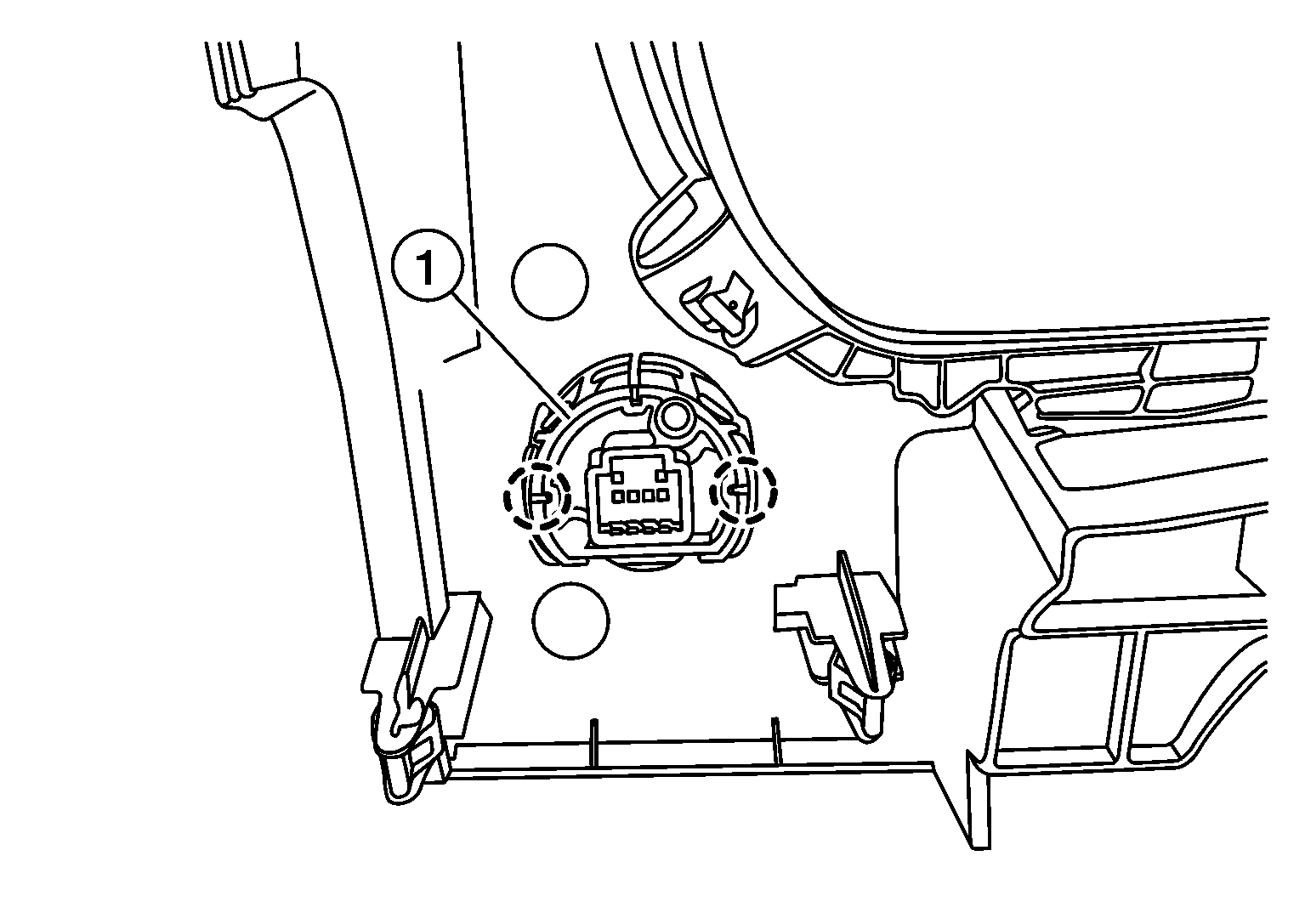

  2. Release pawls and remove the push-button ignition switch (1).
    GNSALKIA3180Z-180Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl
