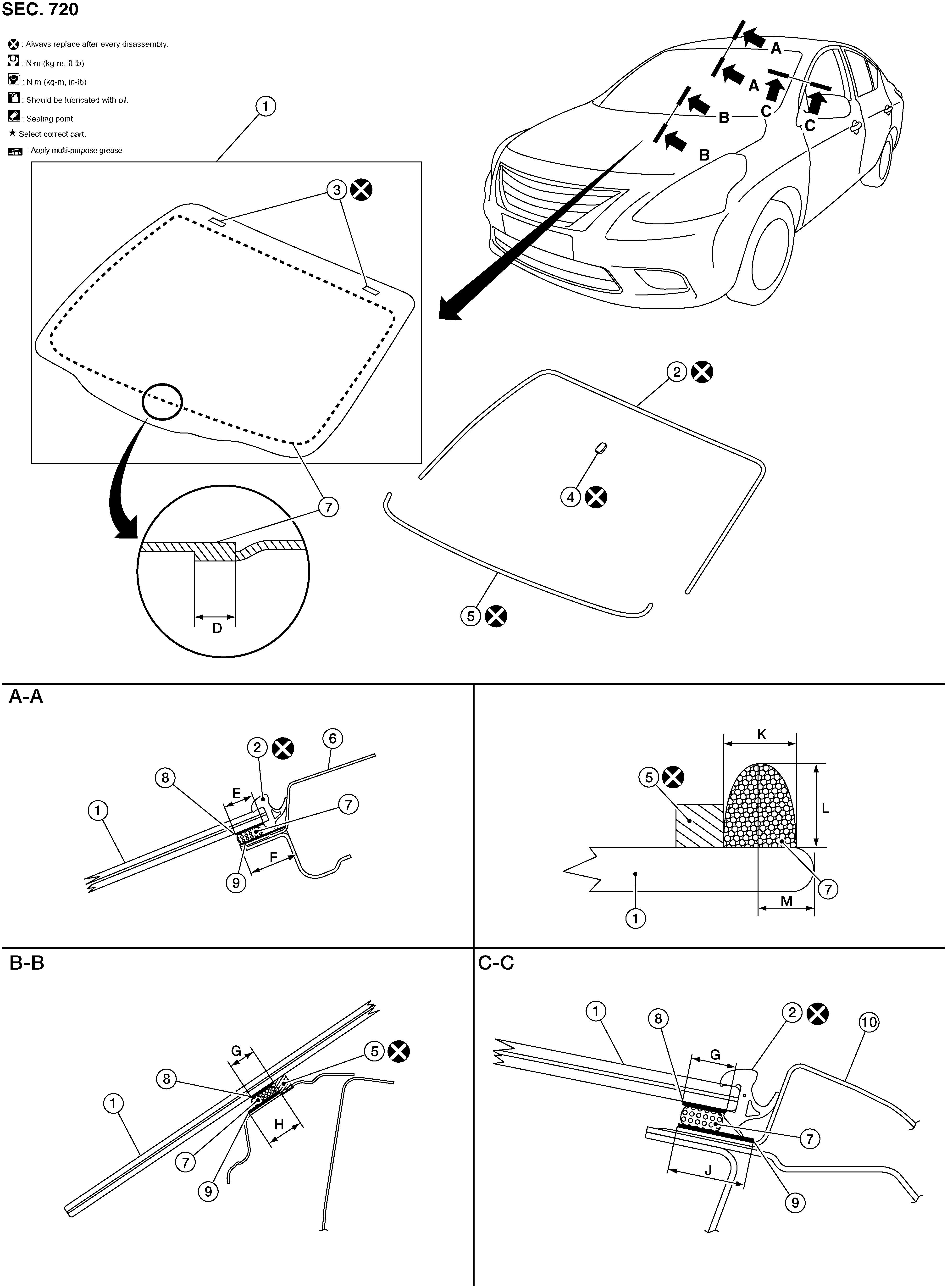

Exploded View

1.

Windshield glass

2.

Windshield glass molding

3.

Windshield glass holder

4.

Inside mirror base

5.

Dam sealant rubber (lower)

6.

Roof assembly

7.

Adhesive

8.

Glass primer

9.

Body primer

10.

Body side outer panel

D.

30 mm (1.2 in)

E.

10.0 ± 1 mm (0.39 ±0.04 in)

F.

17.0 mm (0.67 in)

G.

13 mm (0.51 in)

H.

19.5 mm (0.77 in)

J.

19.0 mm (0.75 in)

K.

7 +2 -0 mm (0.28 +0.08-0 in)

L.

12.0 +2 -0 mm (0.47 +0.08 -0 in)

M.

5.5 ± 1 mm (0.22 ±0.04 in)
