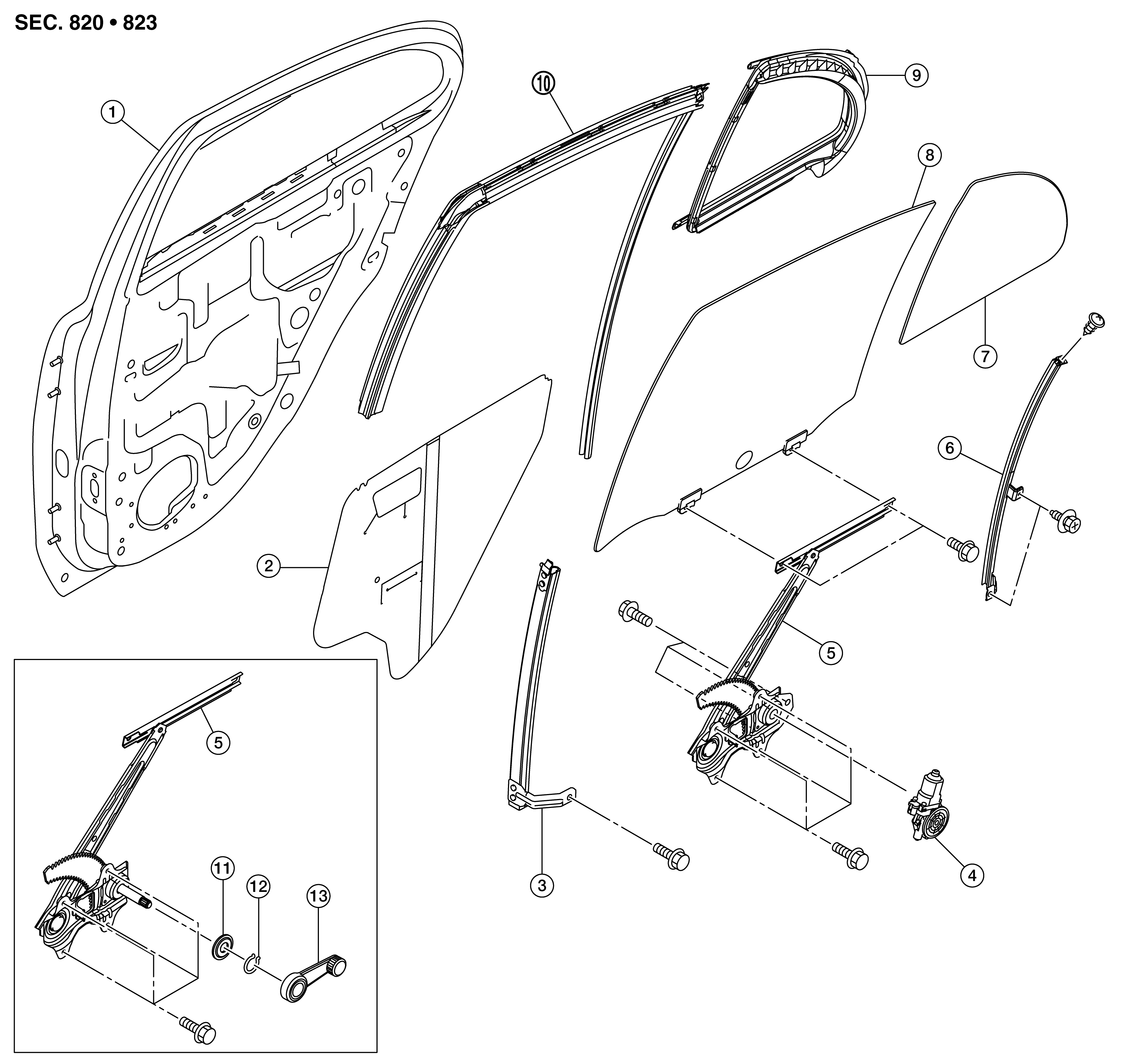

Exploded View

1.

Rear door panel

2.

Sealing screen

3.

Rear door sash

4.

Rear power window motor

5.

Regulator assembly

6.

Partition sash

7.

Partition glass

8.

Rear door glass

9.

Partition weather-strip

10.

Rear door glass run

11.

Regulator seal (manual window)

12.

Retaining clip (manual window)

13.

Regulator handle (manual window)
