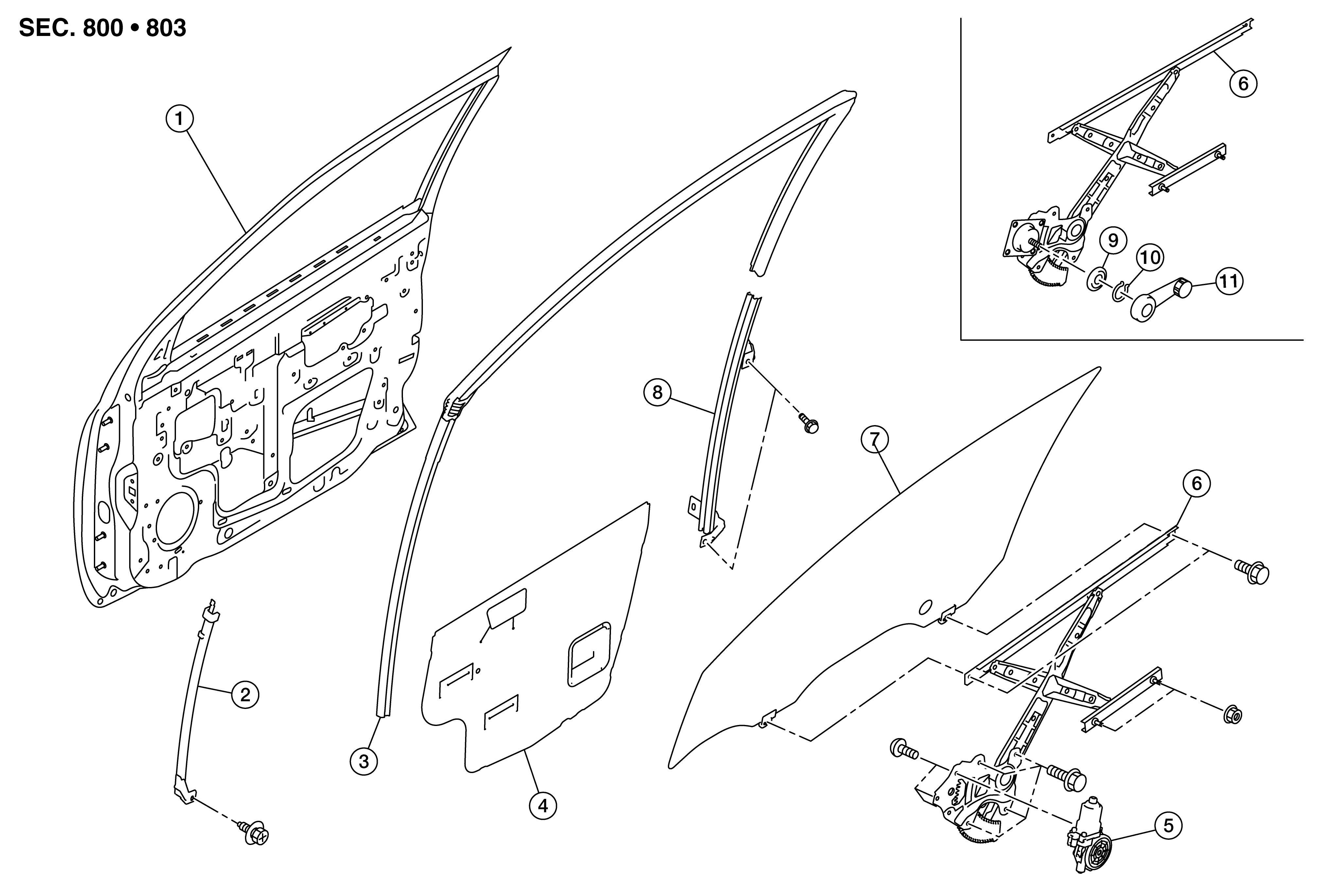

Exploded View

1.

Front door panel

2.

Front door lower sash (front)

3.

Front door glass run

4.

Front door sealing screen

5.

Front door power window motor

6.

Front door regulator

7.

Front door glass

8.

Front door lower sash (rear)

9.

Regulator seal (manual window)

10.

Snap pin (manual window)

11.

Regulator handle (manual window)
