Exploded View: Removal

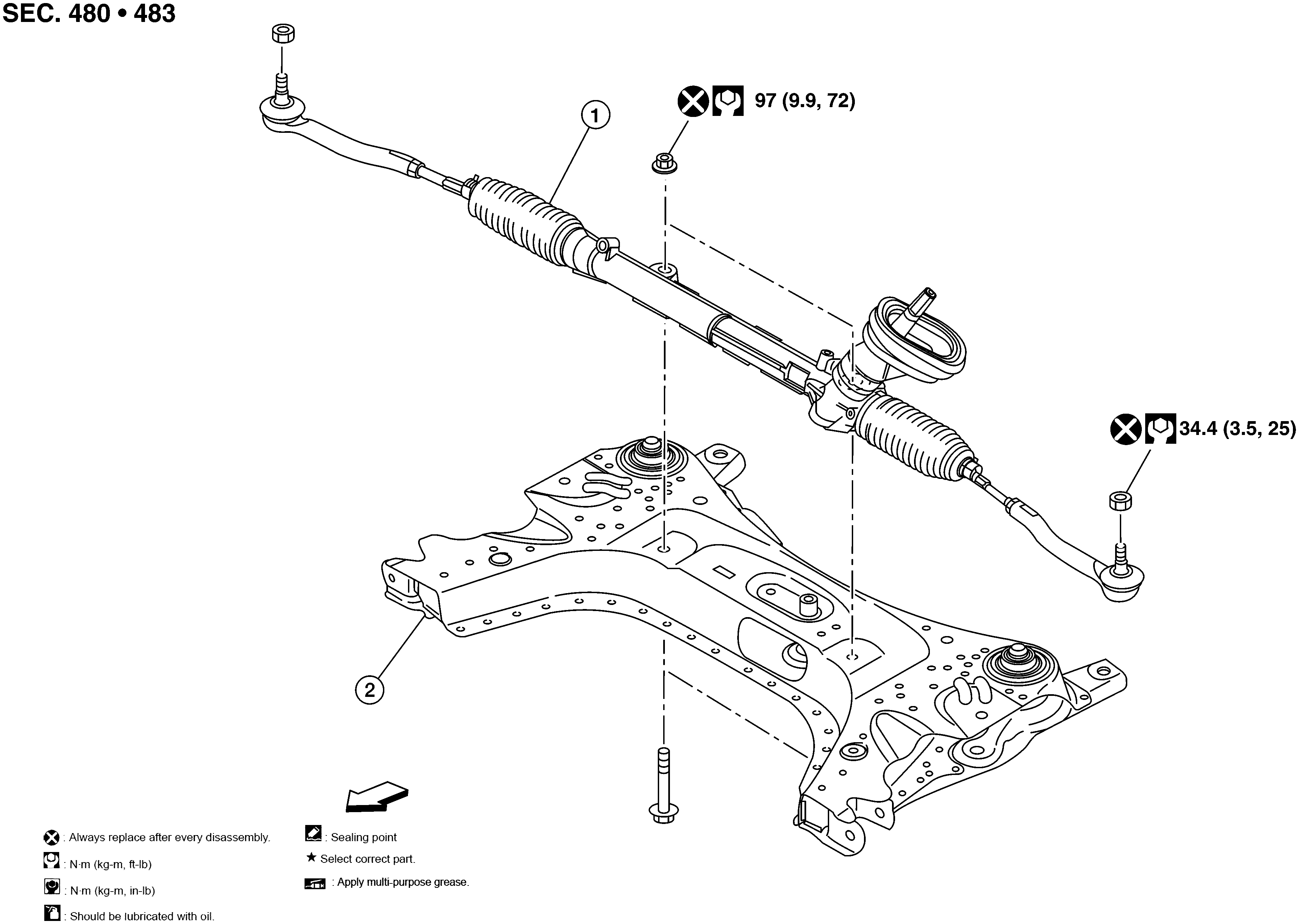

Fig 1: Steering Gear And Linkage Removal And Installation 1.8L With Torque Specifications
GNSAWGIA0254Z-254Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering gear assembly

2.

Front suspension member

SYMBOL

Front

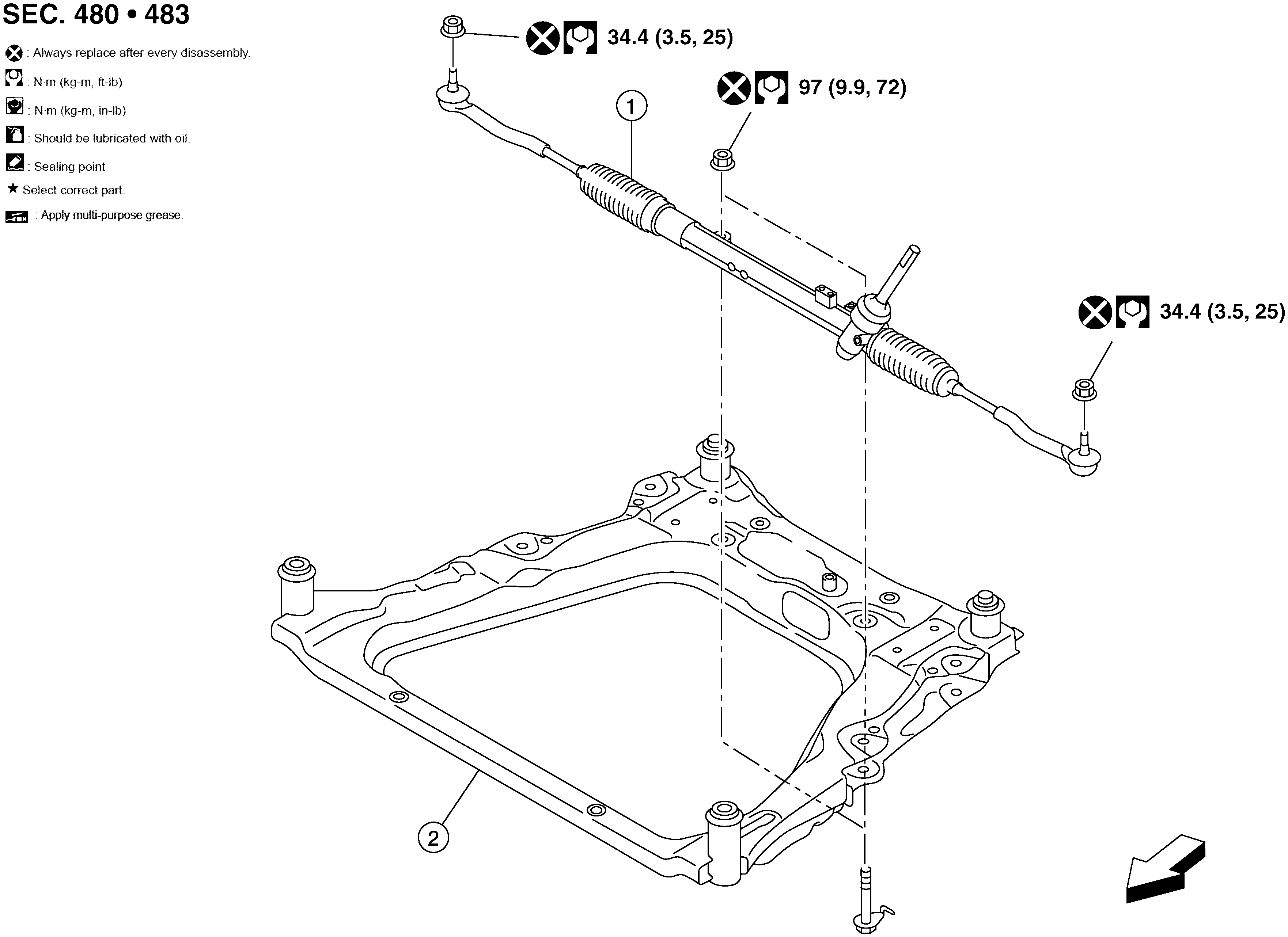

Fig 2: Steering Gear And Linkage Removal And Installation 1.6L With Torque Specifications
GNSAWGIA0491Z-491Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering gear assembly

2.

Front suspension member

SYMBOL

Front
