Exploded View

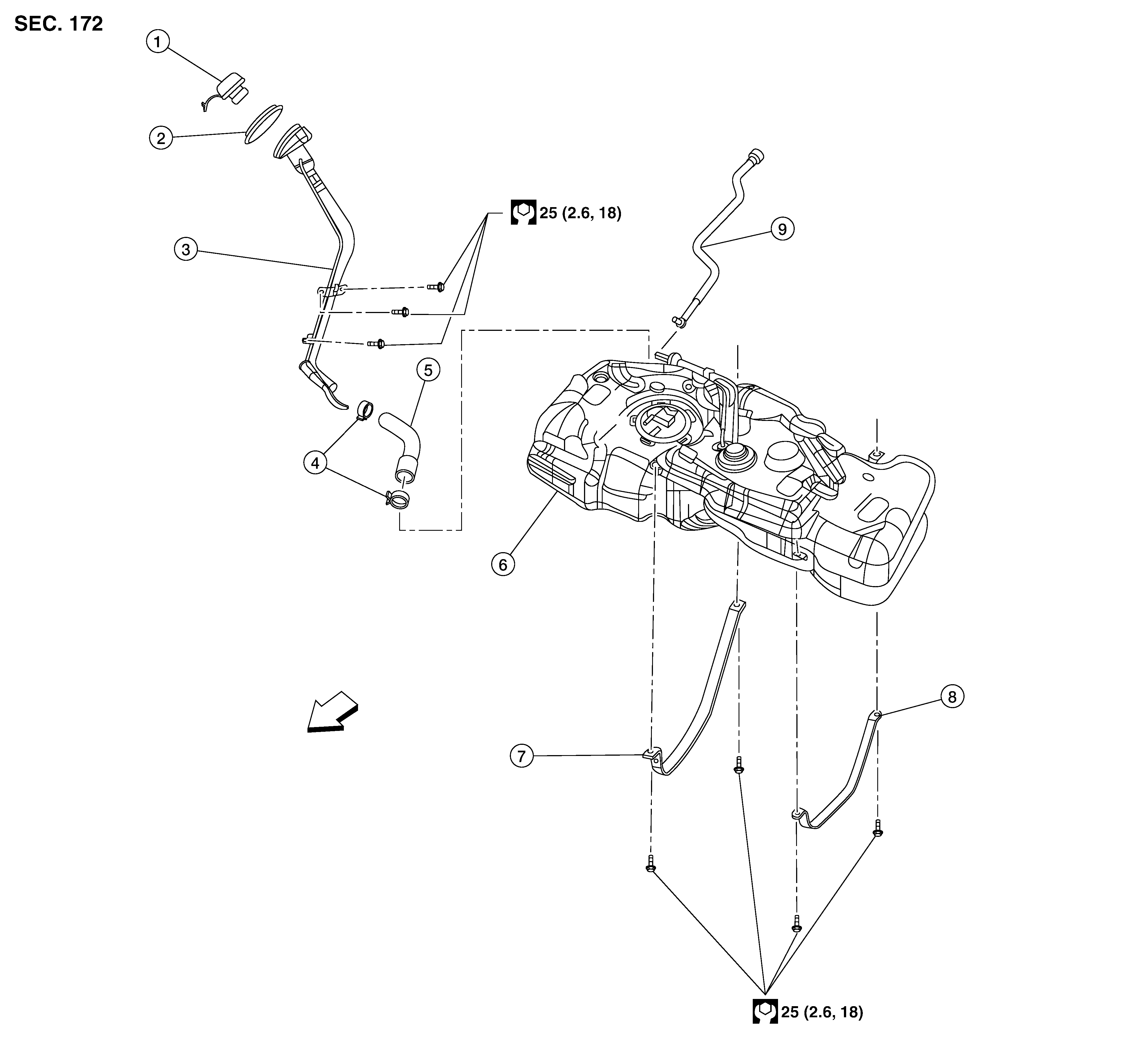

Fig 1: Fuel Tank Assembly With Torque Specifications (For California)

GNSAWBIA2877Z-877

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel Filler Cap	2.	Grommet	3.	Fuel Filler Tube
4.	Clamp	5.	Fuel Filler Hose	6.	Fuel Tank
7.	Fuel Tank Mounting Band (RH)	8.	Fuel Tank Mounting Band (LH)	9.	Vent Hose
	Front

Fig 2: Fuel Tank Assembly With Torque Specifications (except For California)

GNSAWBIA2878Z-878

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel Filler Cap	2.	Grommet	3.	Fuel Filler Tube
4.	Clamp	5.	Fuel Filler Hose	6.	Fuel Tank
7.	Fuel Tank Mounting Band (RH)	8.	Fuel Tank Mounting Band (LH)	9.	Vent Hose
	Front
