Exploded View

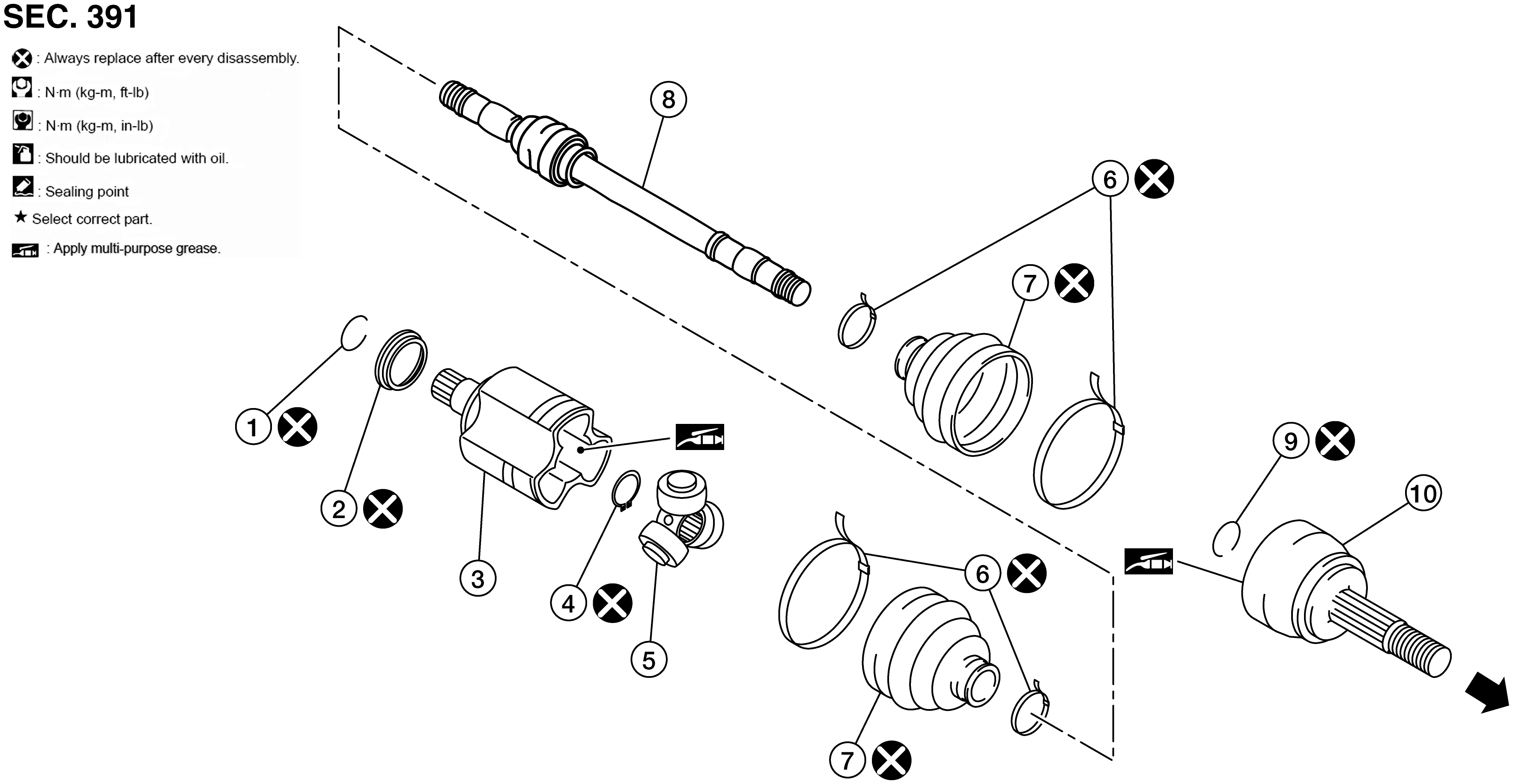

Fig 1: (LH)

GNSAWDIA1579Z-579

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Circular clip	2.	Dust shield	3.	Slide joint housing
4.	Snap ring	5.	Spider assembly	6.	Boot band
7.	Boot	8.	Shaft	9.	Circular clip
10.	Joint sub-assembly		Wheel side

Fig 2: (RH) 6M/T

GNSAWDIA1578Z-578

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Joint sub-assembly	2.	Circular clip	3.	Boot band
4.	Boot	5.	Shaft	6.	Boot
7.	Boot band	8.	Spider assembly	9.	Snap ring
10.	Slide joint housing	11.	Dust shield	12.	Support bearing
13.	Snap ring	14.	Dust shield		Wheel side

Fig 3: (RH) CVT

GNSAWDIA1580Z-580

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Joint sub-assembly	2.	Circular clip	3.	Boot band
4.	Boot	5.	Shaft	6.	Spider assembly
7.	Snap ring	8.	Slide joint housing	9.	Dust shield
10.	Circular clip		Wheel side
