Exploded View

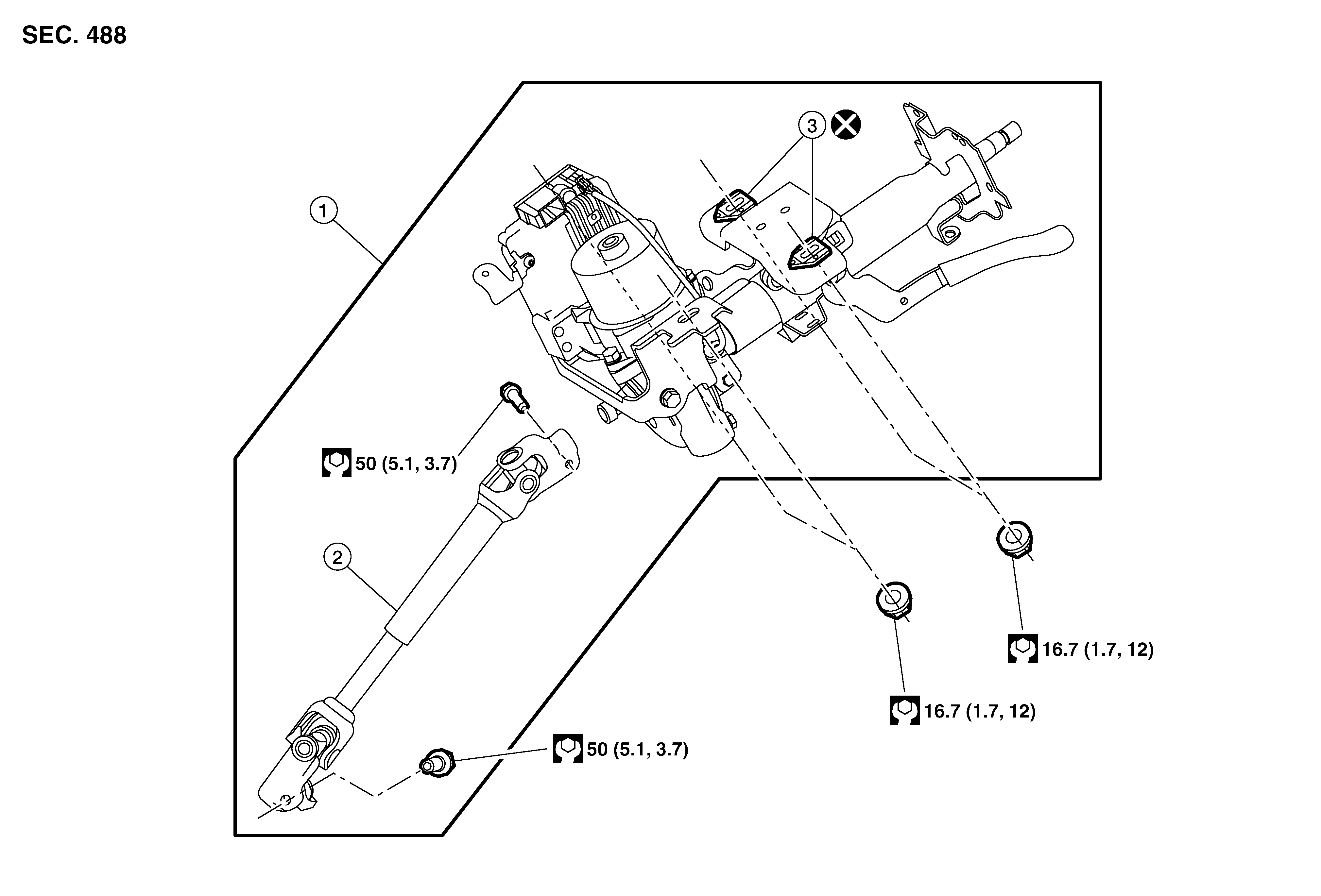

Fig 1: Steering Column 1.8L With Torque Specifications
GNSALGIA0354Z-354Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column assembly

2.

Lower joint

3.

Slide plates

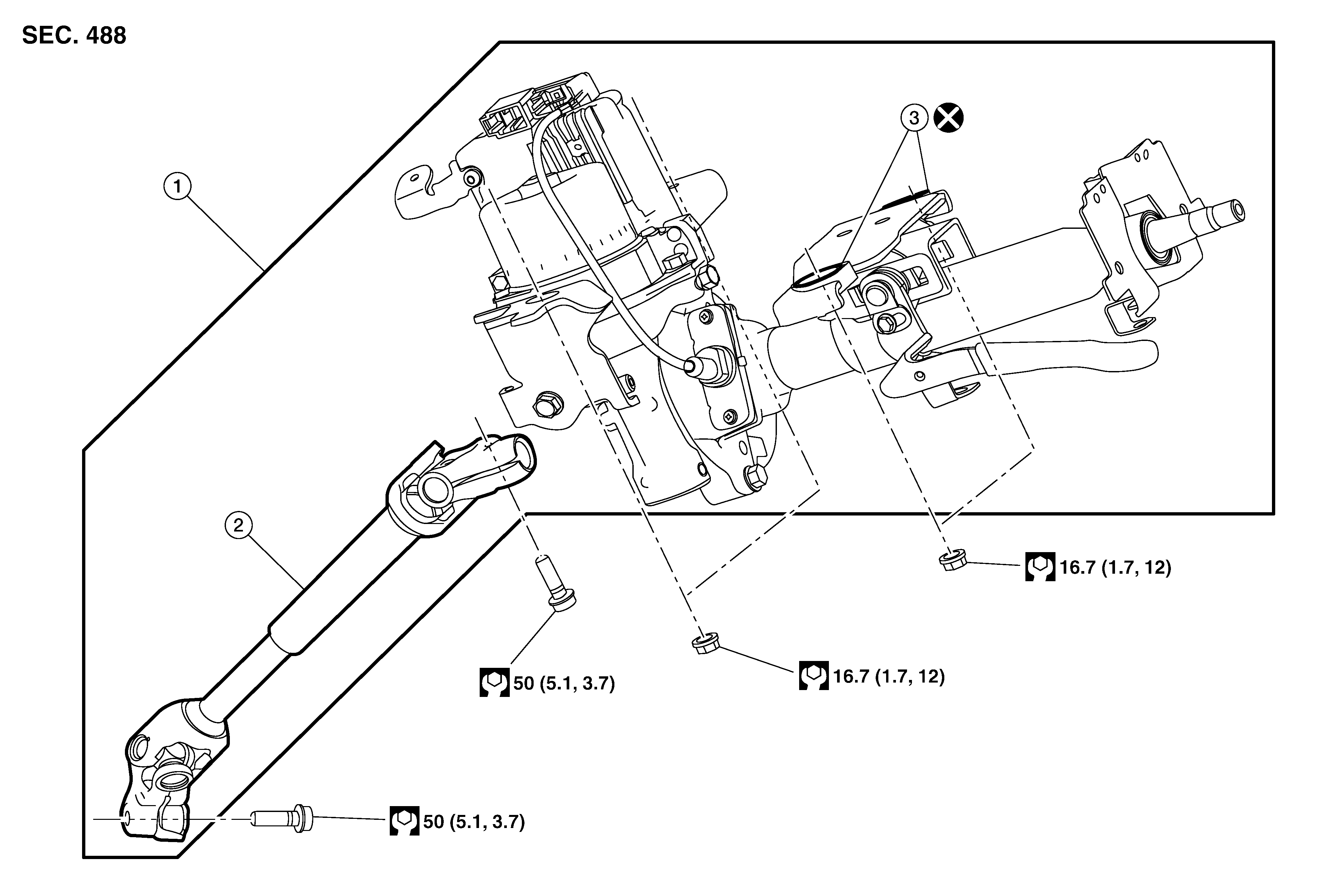

Fig 2: Steering Column 1.6L With Torque Specifications
GNSALGIA0362Z-362Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column assembly

2.

Lower joint

3.

Slide plates
