Exploded View

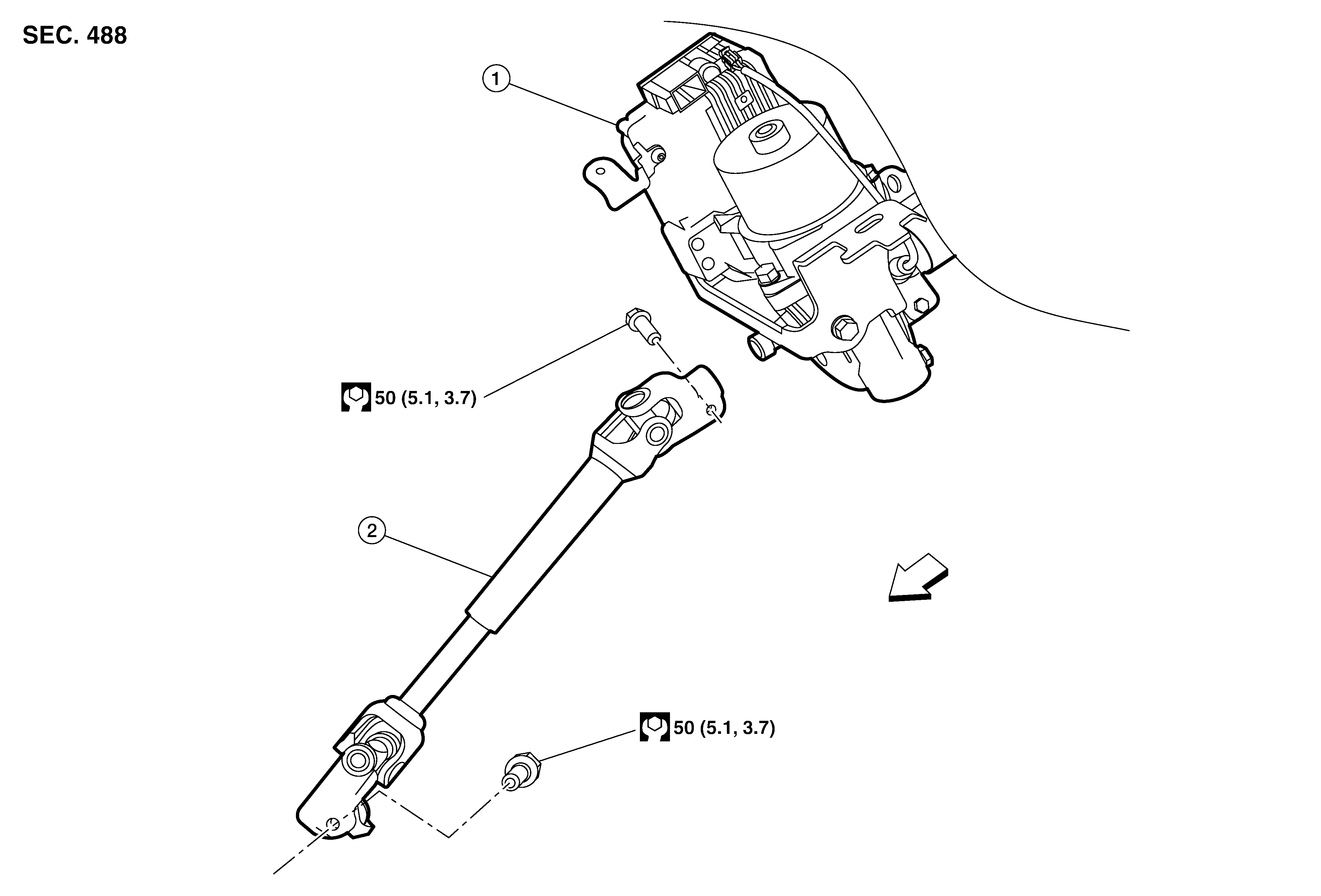

Fig 1: Lower Joint 1.8L With Torque Specifications
GNSALGIA0355Z-355Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Lower joint

SYMBOL

Front

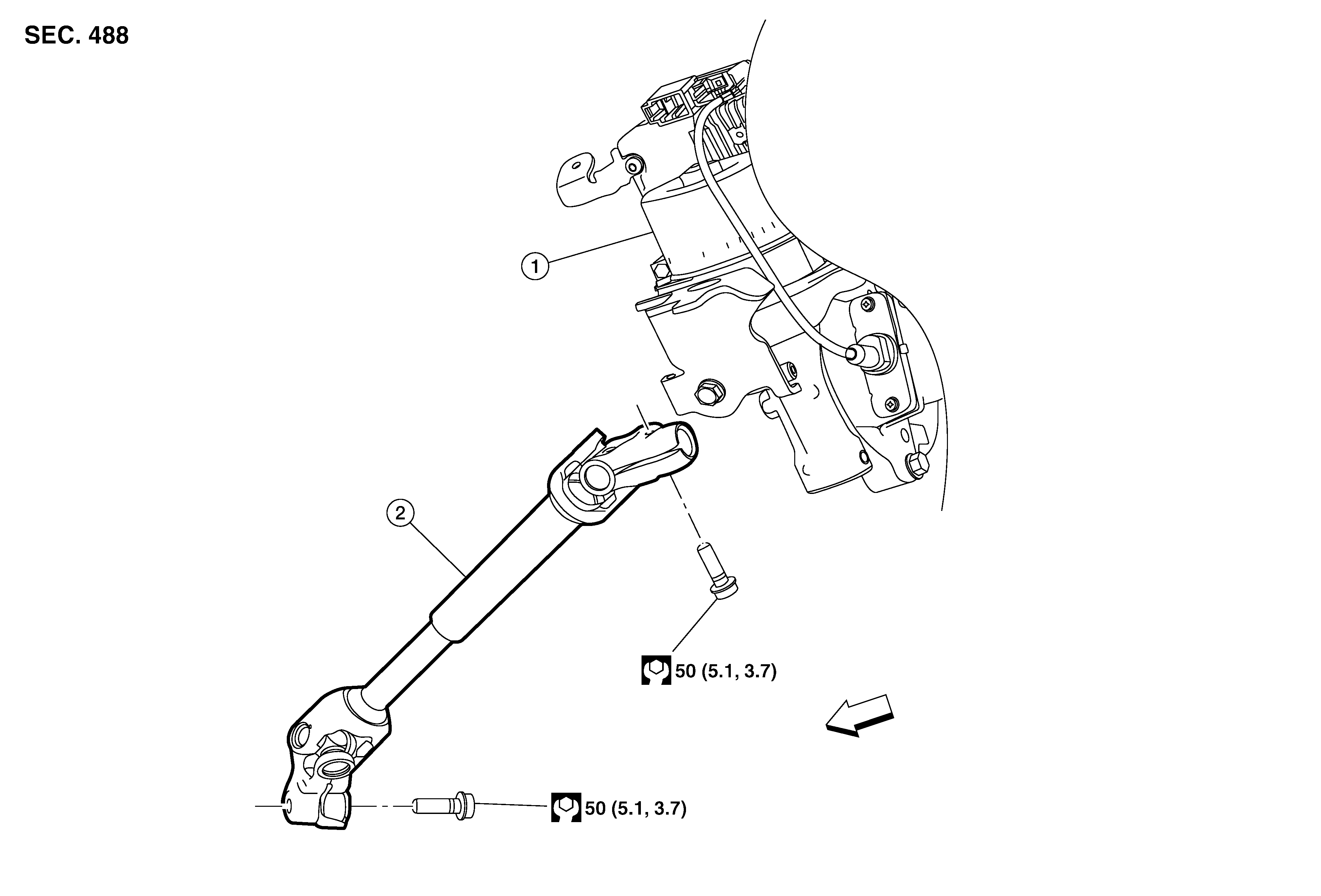

Fig 2: Lower Joint 1.6L With Torque Specifications
GNSALGIA0363Z-363Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Lower joint

SYMBOL

Front
