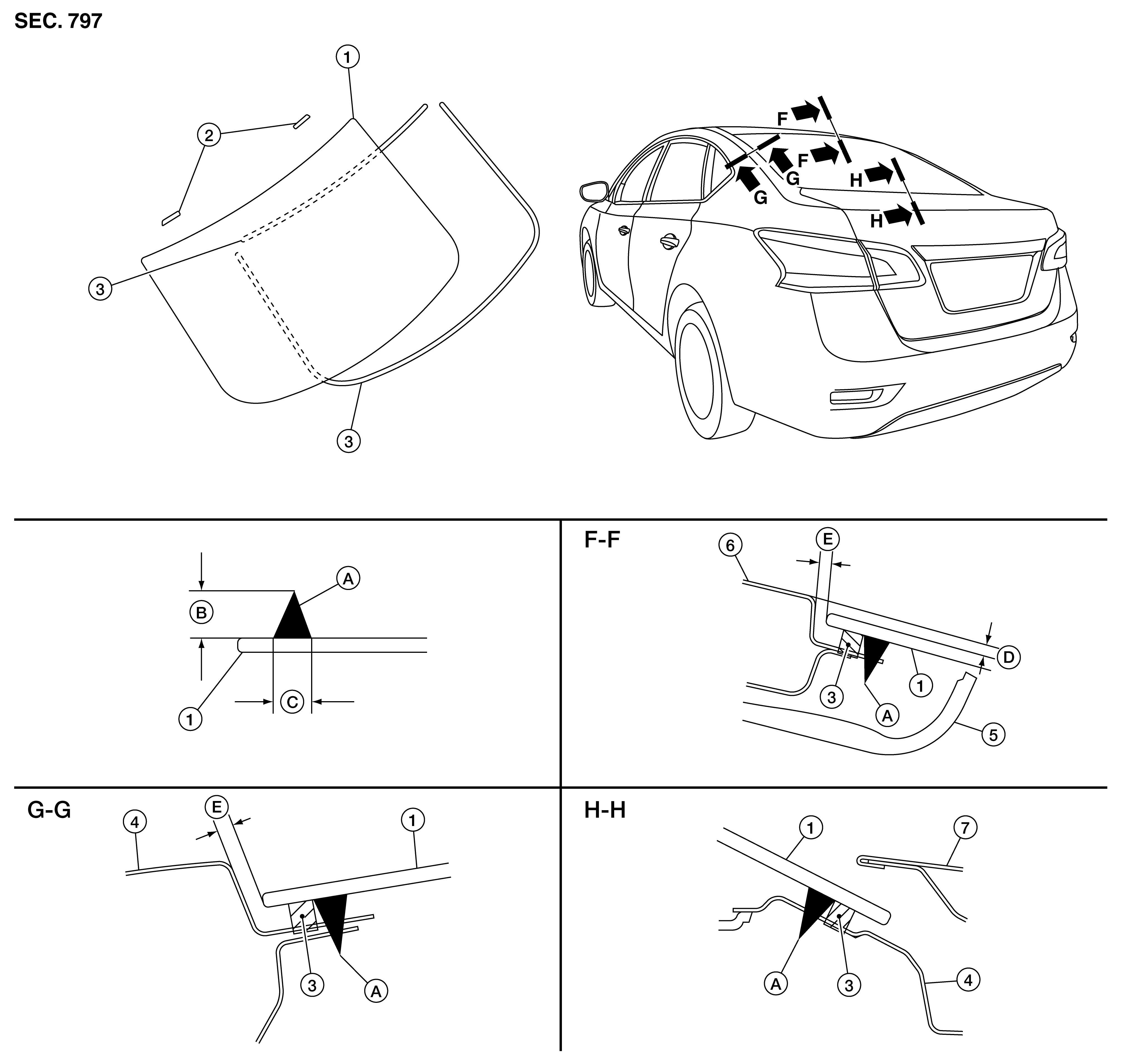

1.
Rear window glass
2.
Spacer
3.
Rubber dam
4.
Body side outer
5.
Headlining
6.
Roof panel
7.
Trunk lid
A.
Adhesive
B.
12 mm (0.5 in)
C.
7 mm (0.3 in)
D.
2.0 mm (0.08 in)
E.
3 mm (0.1 in)
Courtesy of NISSAN NORTH AMERICA, INC.
