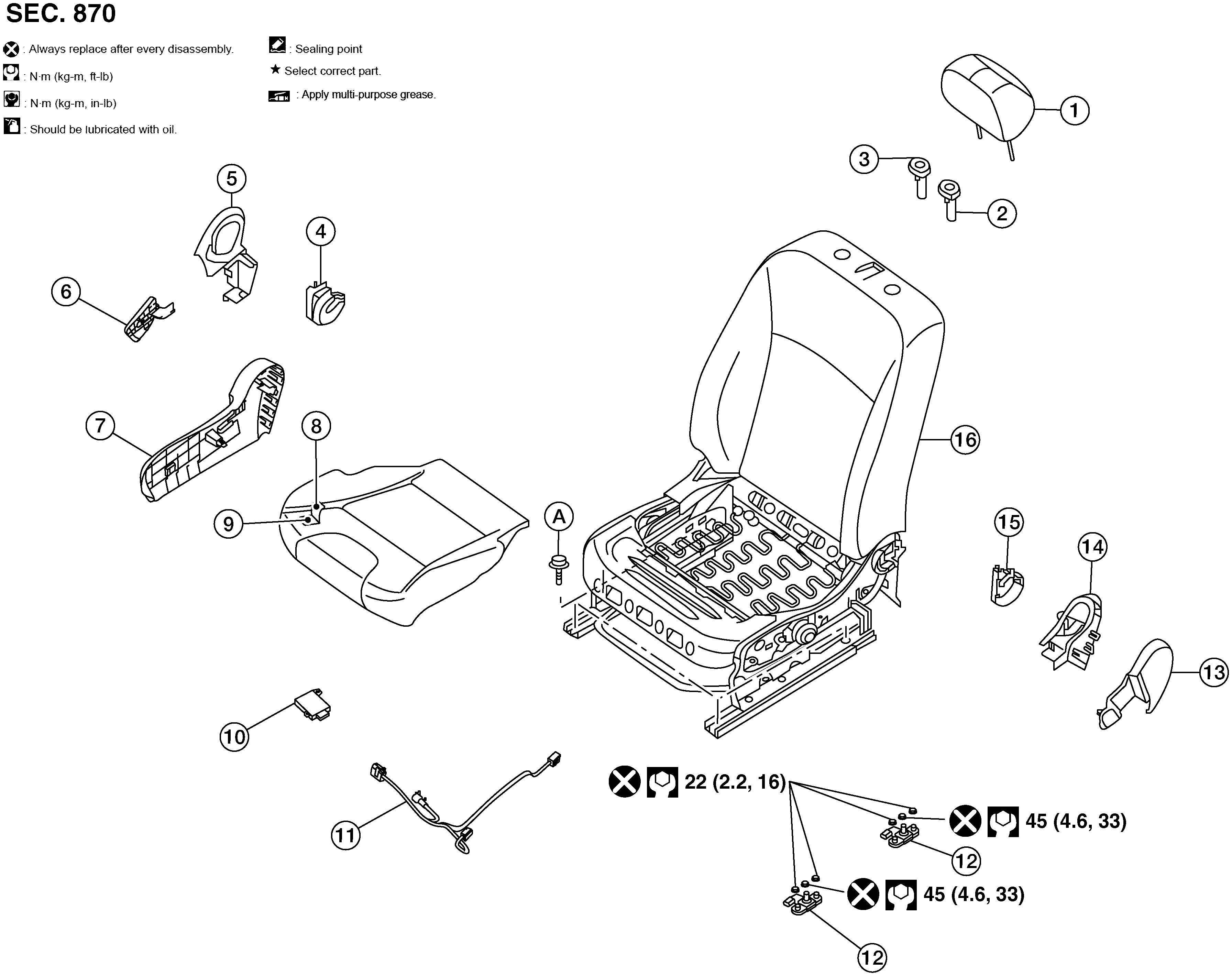

Exploded View

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Recline mechanism cover (RH)

5.

Seat cushion inner finisher (RH)

6.

Recline lever

7.

Seat cushion outer finisher (RH)

8.

Seat cushion trim

9.

Seat cushion pad

10.

Occupant classification system control unit

11.

Occupant classification system harness

12.

Occupant classification system sensor

13.

Seat cushion outer finisher (LH)

14.

Seat cushion inner finisher (LH)

15.

Recline mechanism cover (LH)

16.

Seat assembly

A.

Refer to ASSEMBLY.
