System Description

WARNING: This page is about a different variant/trim than selected.

The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant pressure, and air conditioner ON signal. The control system has 3-step control [HIGH/LOW/OFF].

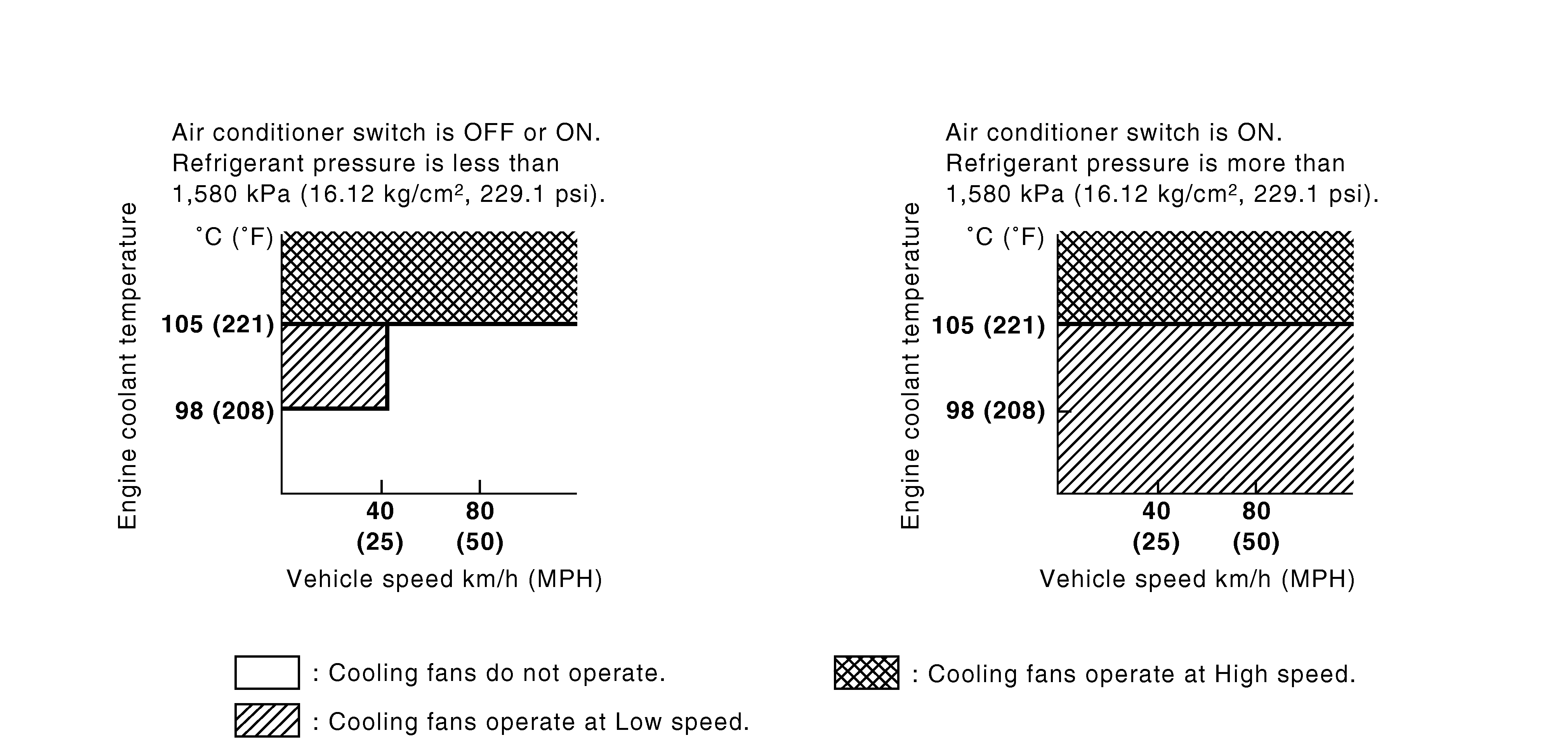

Cooling Fan Operation

G04148417Courtesy of NISSAN NORTH AMERICA, INC.
