Removal and Installation: Removal

  1. Disconnect the negative battery terminal. Refer to Removal and Installation .
  2. Remove front air duct. Refer to Exploded View .

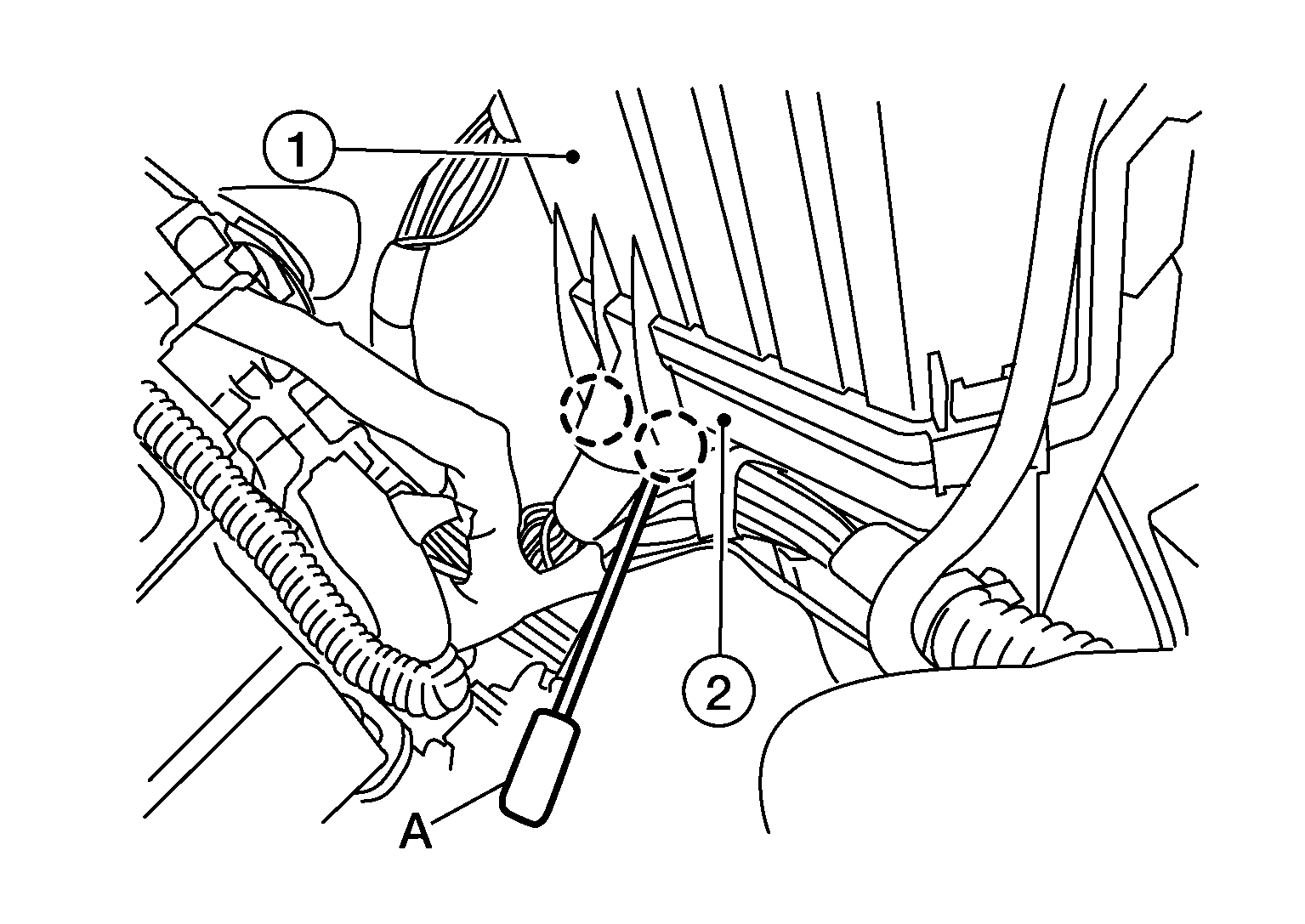

  3. Using a suitable tool (A) between IPDM E/R cover (1) and remove IPDM E/R case (2) then release pawls.
    GNSAWMIA1414Z-414Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL :Pawl

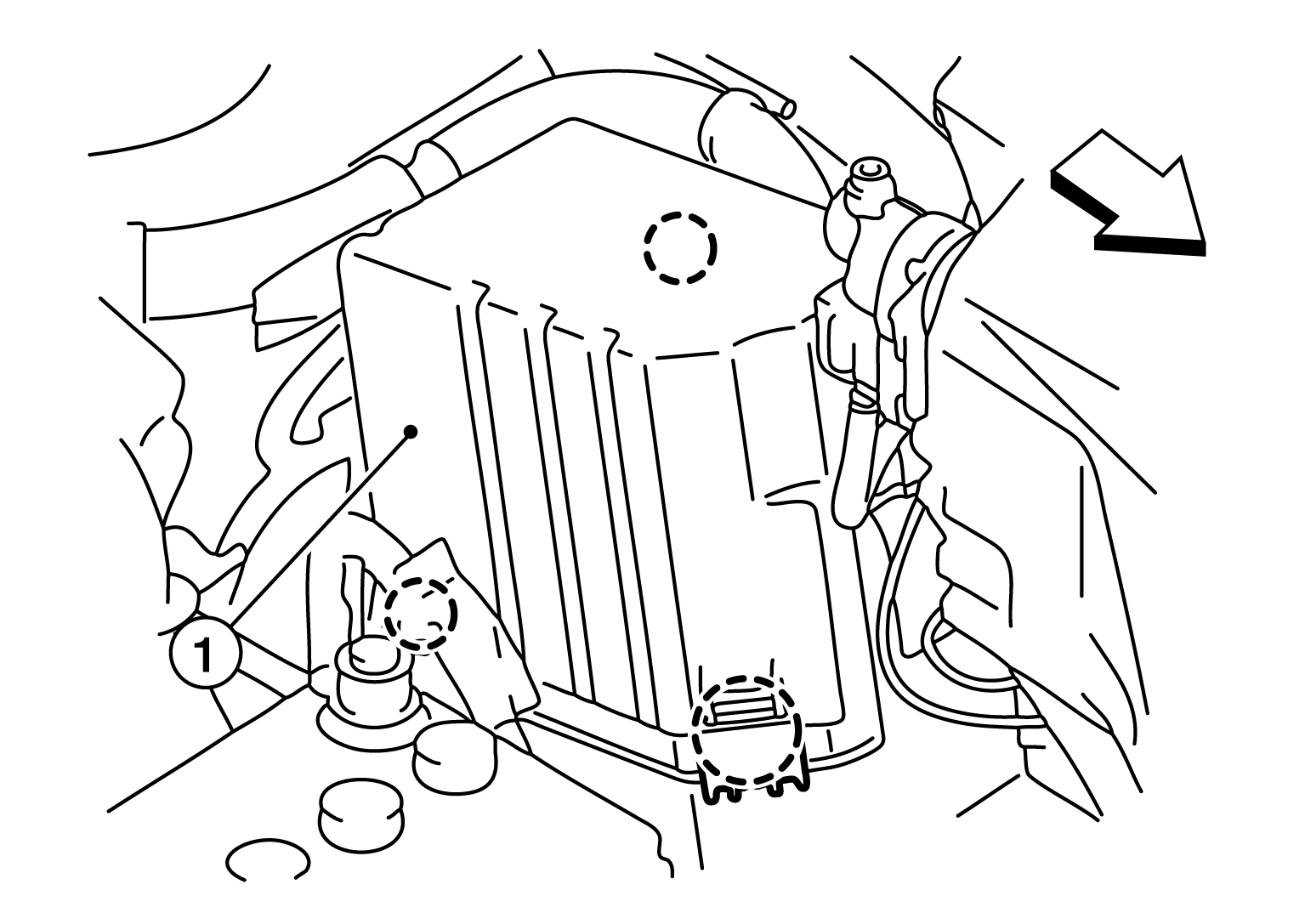

  4. Release pawls (A) of IPDM E/R cover and remove.
    GNSAWMIA1415Z-415Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

    SYMBOL :Pawl

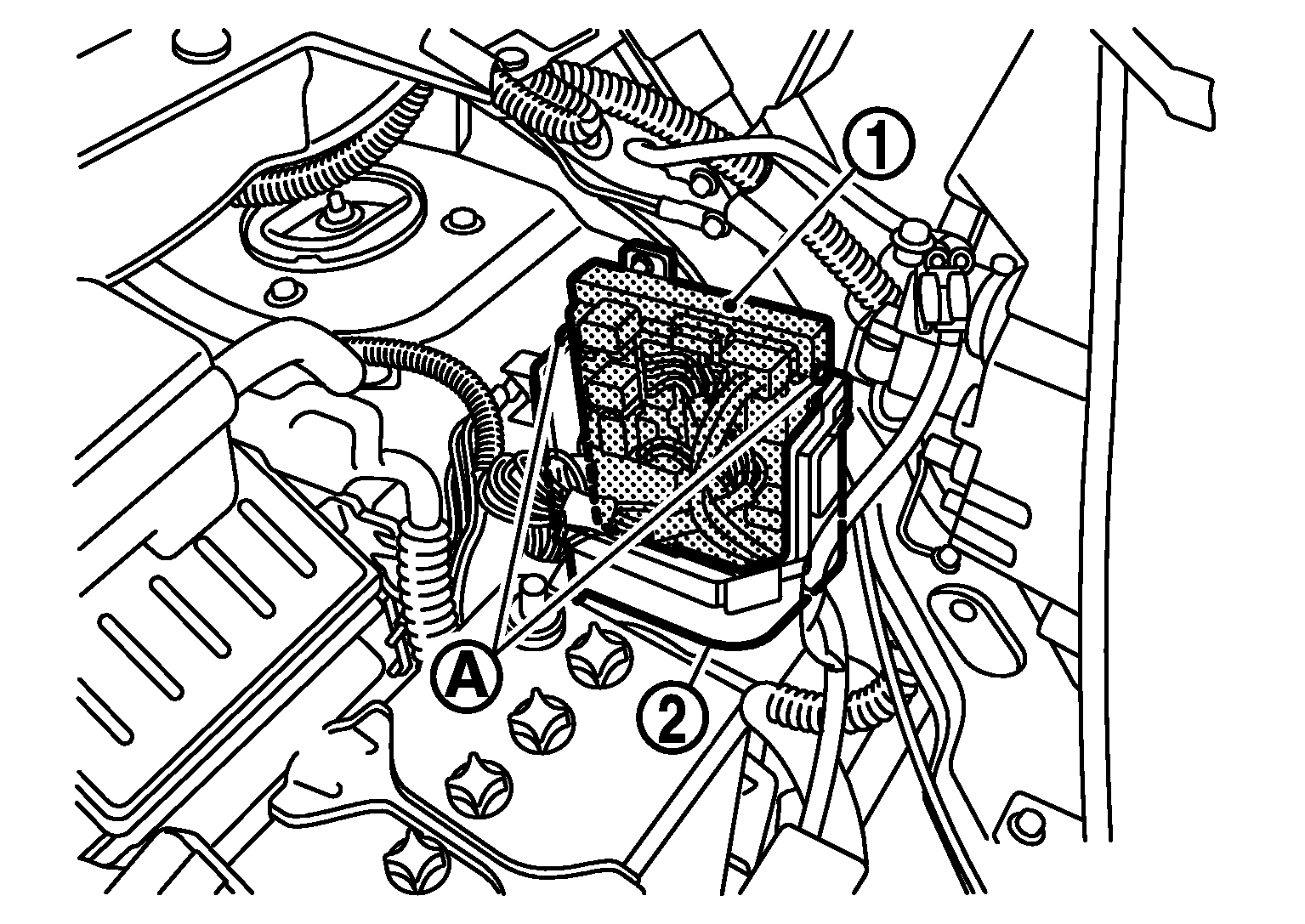

  5. Release pawls (A) of IPDM E/R (1) and remove IPDM E/R from IPDM E/R case (2).
    GNSJMMIA0261Z-261Courtesy of NISSAN NORTH AMERICA, INC.
  6. Disconnect the harness connectors from the IPDM E/R.
