Removal and Installation: Removal

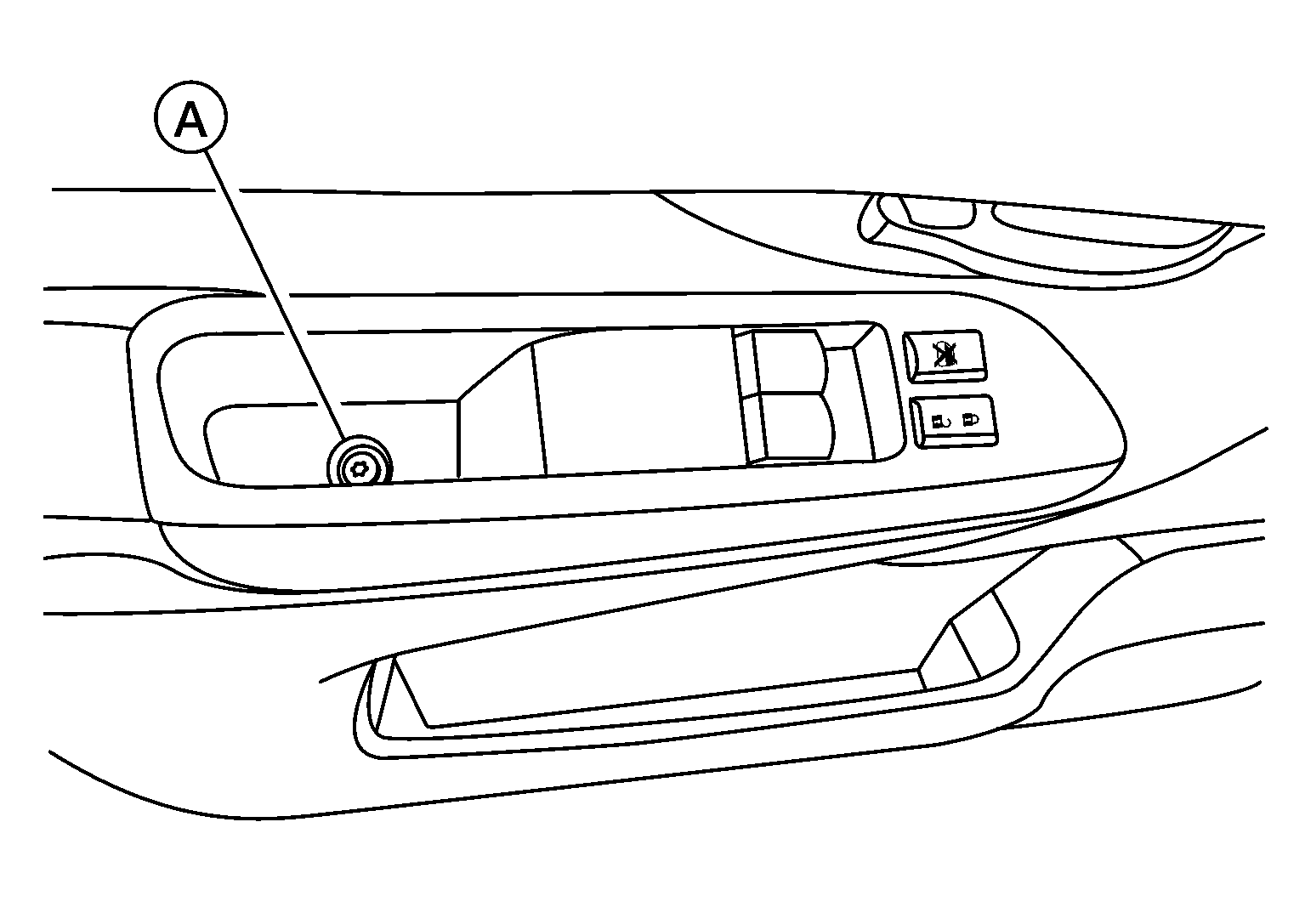

  1. Remove the screw (A).
    GNSAWKIA2426Z-426Courtesy of NISSAN NORTH AMERICA, INC.

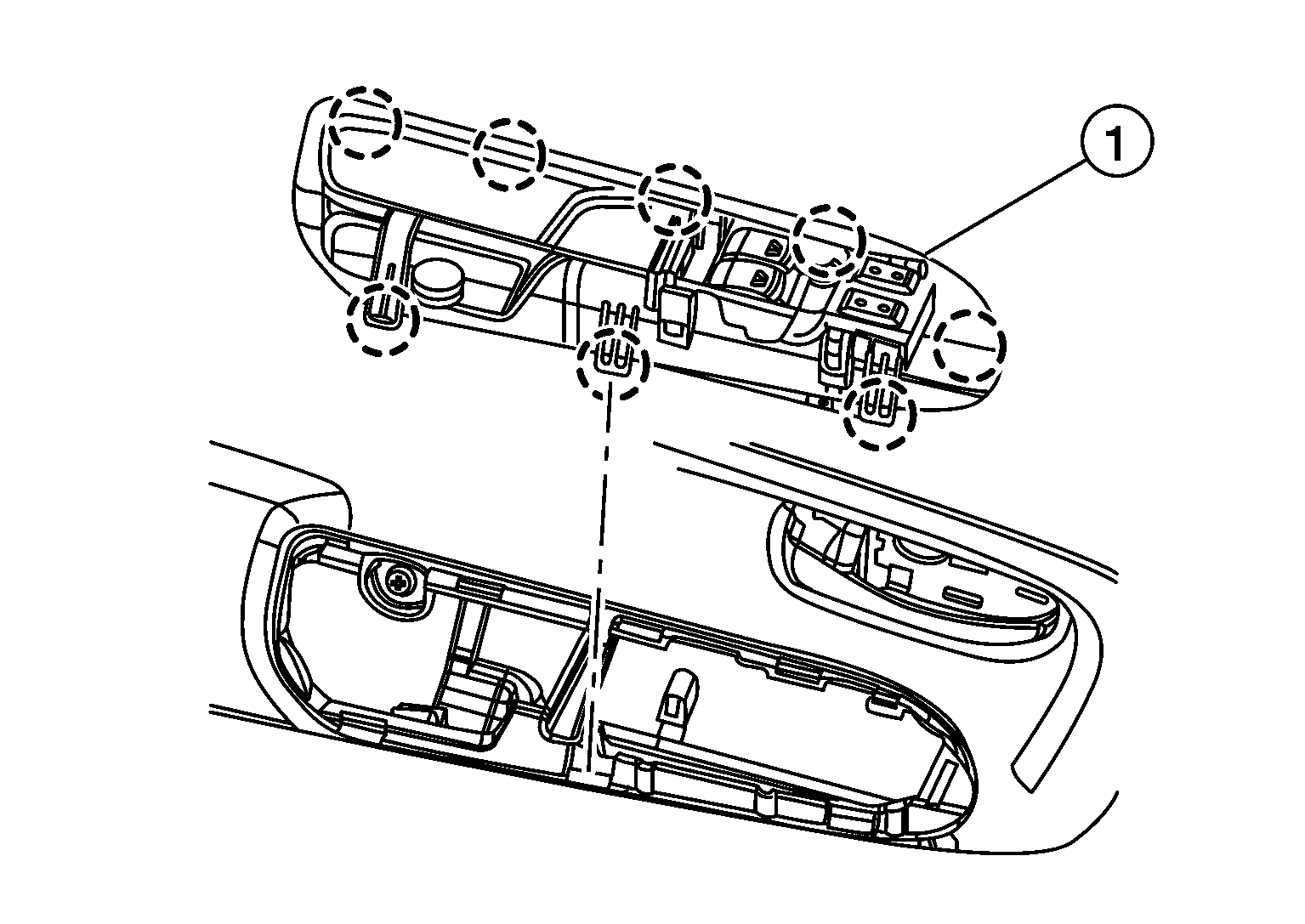

  2. Using a suitable tool, remove the main power window and door lock/unlock switch and finisher (1) as an assembly.
    GNSALKIA3127Z-127Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

  3. Disconnect the harness connector from the main power window and door lock/unlock switch and finisher assembly.

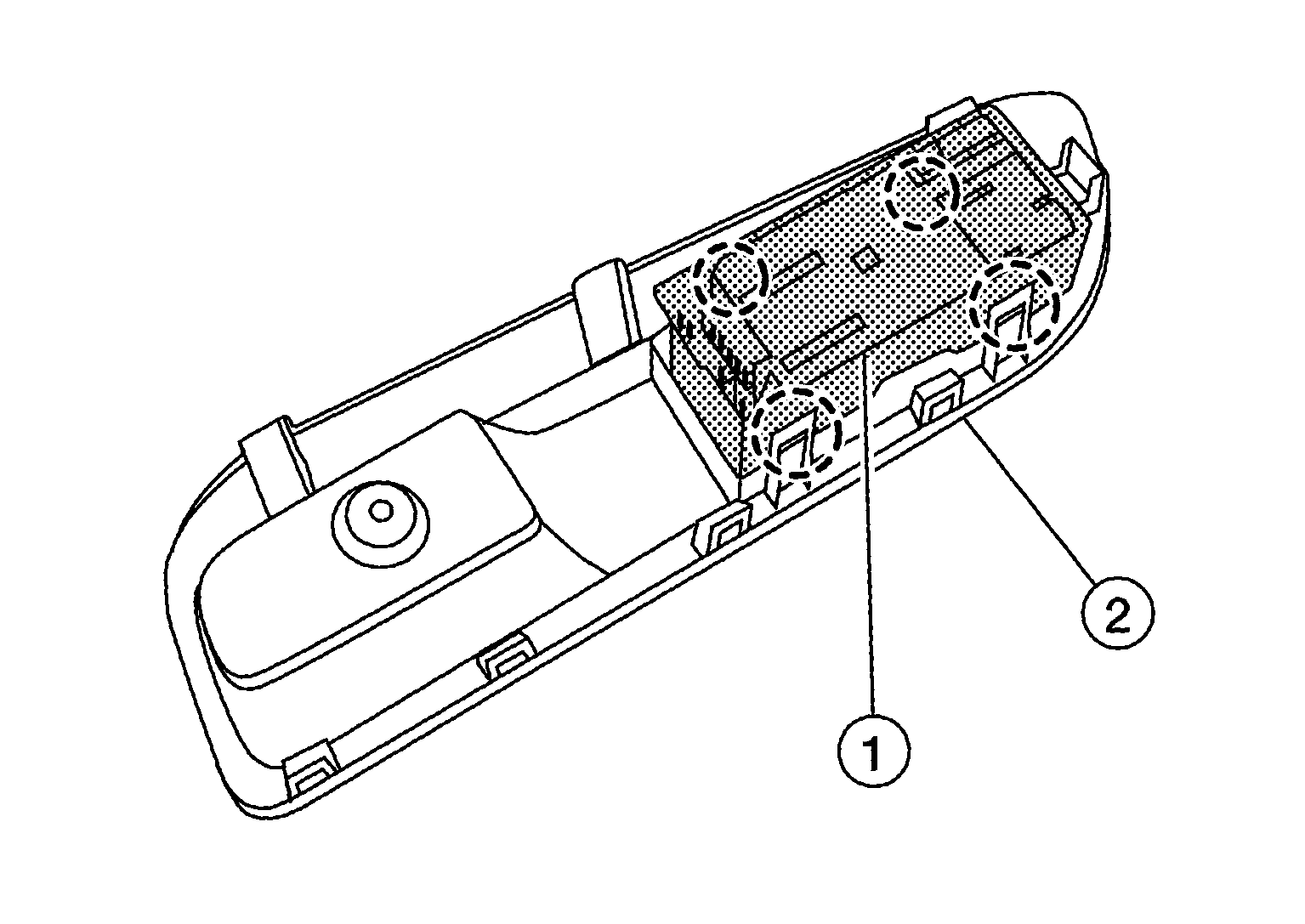

  4. Release the pawls and remove the main power window and door lock/unlock switch (1) from the main power window and door lock/unlock switch finisher (2).
    GNSAWKIA2428Z-428Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

    CAUTION: Do not fold the pawl of power window main switch finisher.
