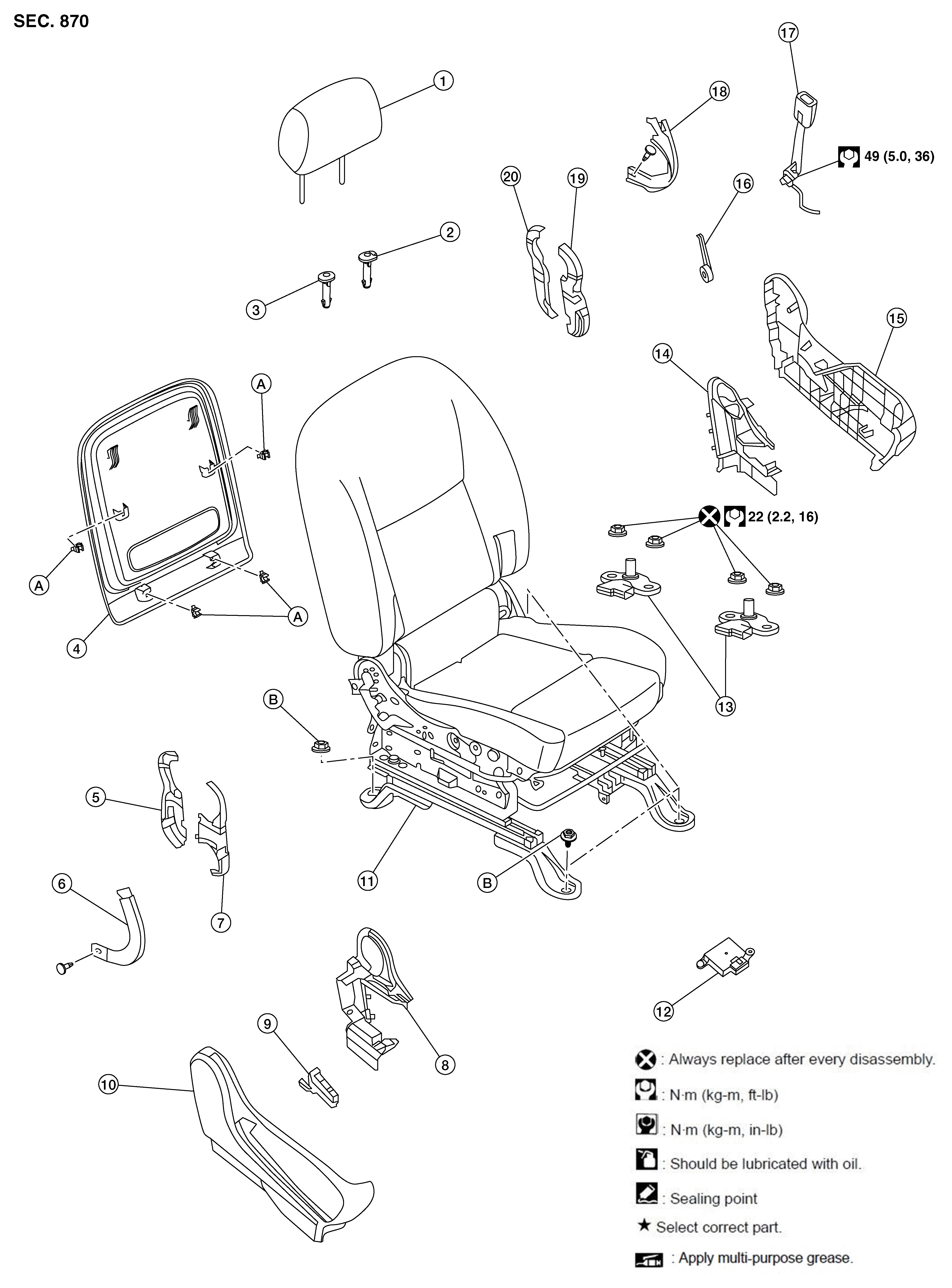

Exploded View
PASSENGER SEAT
|
1. |
Headrest |
2. |
Headrest holder (locked) |
3. |
Headrest holder (free) |
|
4. |
Seatback board |
5. |
Recline mechanism rear finisher (RH) |
6. |
Recline mechanism inner cover (RH) |
|
7. |
Recline mechanism front finisher (RH) |
8. |
Seat cushion inner finisher (RH) |
9. |
Recline lever finisher |
|
10. |
Seat cushion outer finisher (RH) |
11. |
Seat frame assembly |
12. |
Occupant classification system control unit |
|
13. |
Occupant classification system sensor |
14. |
Seat cushion inner finisher (LH) |
15. |
Seat cushion outer finisher (LH) |
|
16. |
Fold flat lever |
17. |
Seat belt buckle |
18. |
Recline mechanism inner cover (LH) |
|
19. |
Recline mechanism front finisher (LH) |
20. |
Recline mechanism rear finisher (LH) |
A. |
Seatback board clip |
|
B. |
Refer to INSTALLATION |
